Solar Terrestrial Activity Report

Last major update issued on August 27, 2010 at 02:55 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update August 3, 2010)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update August 3, 2010)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update August 3, 2010)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports (last update August 23, 2010)]

Recent activity

The geomagnetic field was quiet to active on August 26. Solar wind speed ranged between 588 and 676 km/s under the influence of a high speed stream from CH418.

Solar flux measured at 20h UTC on 2.8 GHz was 73.4 (down 9.8 over the last solar rotation). The planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.1). Three hour interval K indices: 34322222 (planetary), 34433221 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 3 spotted regions.

Region 11100 developed slowly during the day, however, the location near the southwest limb makes spots difficult to observe.
Region 11101 was quiet and stable.

Spotted regions not numbered by NOAA/SWPC:
[S804] This region emerged in the southeast quadrant on August 26 and had a few tiny spots by the end of the day. Location at midnight: S07E15

Coronal mass ejections (CMEs)

August 24-26: No obviously Earth directed CMEs were seen in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A large, recurrent coronal hole (CH418) in the northern hemisphere was Earth facing on August 20-24.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on August 27-30.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

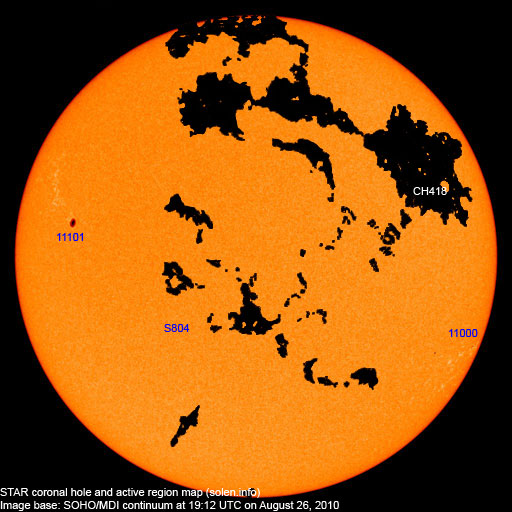

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11100 2010.08.16 2 1 S20W78 0010 AXX AXX
11101 2010.08.24 1 1 N13E48 0090 HSX HSX
S804 2010.08.26   3 S07E15 0000   BXO
Total spot count: 3 5
SSN: 23 35

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.06 68.6 2.9 2.7 (+0.4) 5.22
2009.07 68.2 3.2 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 (10.6 predicted, +1.3) 4.15 / 4.61
2010.03 83.4 15.4 (12.3 predicted, +1.7) 4.58 / 4.65
2010.04 75.9 7.9 (13.9 predicted, +1.6) 10.22 / 10.24
2010.05 73.8 8.8 (15.3 predicted, +1.4) 9.18 / 8.15
2010.06 72.5 13.5 (16.7 predicted, +1.4) 8.17 / 6.85
2010.07 79.8 16.1 (18.3 predicted, +1.6) 6.31 / 5.15
2010.08 80.3 (1) 24.9 (2A) / 29.7 (2B) (19.5 predicted, +1.2) (9.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
