The geomagnetic field was quiet to unsettled on June 7. Solar wind speed ranged between 342 and 449 km/s. Solar wind speed has increased early on June 8, possibly indicatring the arrival of a high speed stream associated with CH407.
Solar flux measured at 20h UTC on 2.8 GHz was 68.5. The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 32122221 (planetary), 22122221 (Boulder).
The background x-ray flux is at the class A5 level.

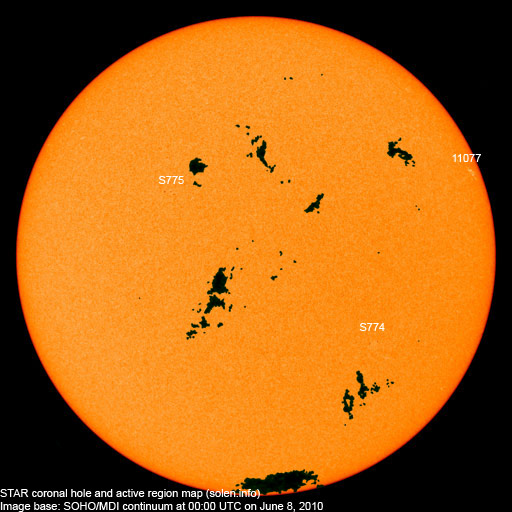

At midnight there were 3 spotted regions on the visible solar disk.
Region 11077 reemerged with a single tiny spot. The region will rotate over the northwest limb today.
Spotted regions not numbered by NOAA/SWPC:
[S774] This region emerged in the southwest qudrant on June 7 with 2 tiny spots. Location at midnight: S21W33
[S775] A new region emerged in the northeast quadrant on June 7. Location at midnight: N15E20
June 5-7: No obvious Earth directed CMEs were observed in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A trans equatorial coronal hole (CH407) was in an Earth facing position on June 4-5.
Processed SOHO/EIT 195 image at 00:00 UTC on June 8. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to active on June 8-9 due to a high speed stream associated with CH407. Quiet conditions are likely on June 10-11.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||SWPC
|Location at midnight||Area||SWPC
|11076||2010.05.31||2||S19W86||0020||BXO||rotated out of view|
|Total spot count:||2||7|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.1 (+1.3)||3.88 / 3.61|
|2009.10||72.6||4.8||7.0 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.6)||2.45 / 2.63|
|2009.12||76.7||10.8||(8.2 predicted, +0.6)||1.41 / 1.92|
|2010.01||81.1||13.1||(9.2 predicted, +1.0)||2.93 / 3.07|
|2010.02||84.7||18.6||(10.7 predicted, +1.5)||4.15 / 4.61|
|2010.03||83.4||15.4||(12.5 predicted, +1.8)||4.58 / 4.65|
|2010.04||75.9||7.9||(14.1 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.8||(15.4 predicted, +1.3)||9.18 / 8.15|
|2010.06||71.4 (1)||3.9 (2)||(16.9 predicted, +1.5)||(9.43)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Current impact on the monthly SSN based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
