The geomagnetic field was quiet to unsettled on June 24. Solar wind speed ranged between 274 and 370 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 74.4. The planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.9). Three hour interval K indices: 10002233 (planetary), 00111232 (Boulder).
The background x-ray flux is at the class A5 level.
At midnight there were 2 spotted regions on the visible solar disk.
The original region 11082 remained spotless. The region currently assigned that number by NOAA/SWPC emerged as a bipolar region (S781) to the southwest of region 11082 on June 19. The region decayed on June 24.
Spotted regions not numbered by NOAA/SWPC:
[S782] A single, tiny spot emerged in this region in the northwest quadrant on June 24. Location at midnight: N18W32
June 22-24: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

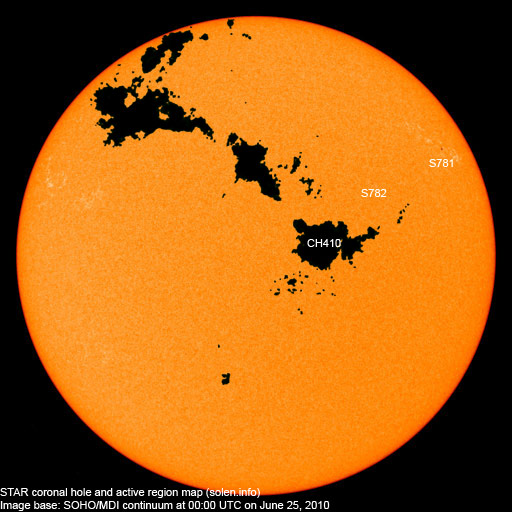

A recurrent trans equatorial coronal hole (CH410) was in an Earth facing position on June 22-24.

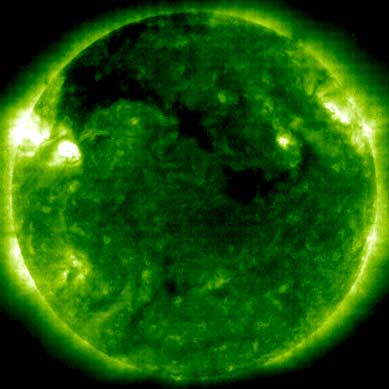

Processed SOHO/EIT 195 image at 00:00 UTC on June 25. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to minor storm on June 25-27 due to a high speed stream from CH410.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||SWPC
|Location at midnight||Area||SWPC
|11082||2010.06.17||3||N27W65||0010||BXO||spotless, SWPC has merged this region with S781
actual location: N29W55
|Total spot count:||3||2|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.1 (+1.3)||3.88 / 3.61|
|2009.10||72.6||4.8||7.0 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.6)||2.45 / 2.63|
|2009.12||76.7||10.8||(8.2 predicted, +0.6)||1.41 / 1.92|
|2010.01||81.1||13.1||(9.2 predicted, +1.0)||2.93 / 3.07|
|2010.02||84.7||18.6||(10.7 predicted, +1.5)||4.15 / 4.61|
|2010.03||83.4||15.4||(12.5 predicted, +1.8)||4.58 / 4.65|
|2010.04||75.9||7.9||(14.1 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.8||(15.4 predicted, +1.3)||9.18 / 8.15|
|2010.06||72.1 (1)||15.6 (2)||(16.9 predicted, +1.5)||(7.15)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
