The geomagnetic field was quiet to active on June 29. Solar wind speed ranged between 453 and 620 km/s. A high speed stream associated with an extension of the northern polar coronal hole was observed beginning at ACE near 19h UTC.
Solar flux measured at 20h UTC on 2.8 GHz was 73.6. The planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.1). Three hour interval K indices: 23221134 (planetary), 22232233 (Boulder).
The background x-ray flux is at the class A5 level.
At midnight there were 2 spotted regions on the visible solar disk.
Region 11084 was quiet and stable.
New region 11085 reemerged with spots on June 28 and was numbered the next day by NOAA/SWPC. The region decayed on June 29 leaving only a tiny spot by the end of the day.
June 27-29: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A small, new coronal hole (CH411) in the southern hemisphere was in an Earth facing position on June 28-29.
Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to minor storm on June 30 due to effects from a high speed coronal hole stream. Quiet to active conditions are likely on July 1 becoming quiet to unsettled on July 2.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image

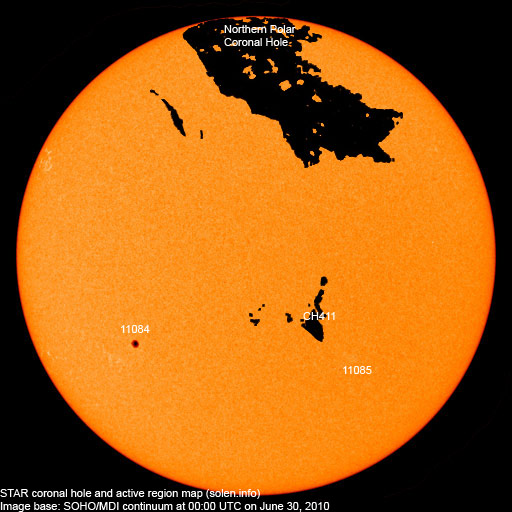

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||Spot count||Location at midnight||Area||Classification||SDO (NASA) / AIA 4500
|11085||2010.06.29||3||1||S23W24||0010||CRO||AXX||formerly region S783
location at midnight: S22W26
|Total spot count:||4||2|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.1 (+1.3)||3.88 / 3.61|
|2009.10||72.6||4.8||7.0 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.6)||2.45 / 2.63|
|2009.12||76.7||10.8||(8.2 predicted, +0.6)||1.41 / 1.92|
|2010.01||81.1||13.1||(9.2 predicted, +1.0)||2.93 / 3.07|
|2010.02||84.7||18.6||(10.7 predicted, +1.5)||4.15 / 4.61|
|2010.03||83.4||15.4||(12.5 predicted, +1.8)||4.58 / 4.65|
|2010.04||75.9||7.9||(14.1 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.8||(15.4 predicted, +1.3)||9.18 / 8.15|
|2010.06||72.4 (1)||17.6 (2)||(16.9 predicted, +1.5)||(7.80)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
