Recent activity

The geomagnetic field was very quiet on May 9. Solar wind speed ranged between 346 and 461 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 75.6. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.5). Three hour interval K indices: 10011111 (planetary), 21001111 (Boulder).

The background x-ray flux is at the class A4 level.

At midnight the visible solar disk was spotless.

Coronal mass ejections (CMEs)

May 7-9: No obvious Earth directed CMEs were observed in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A poorly defined coronal hole in the northern hemipshere will likely rotate into an Earth facing position on May 11-12.

Processed SOHO/EIT 195 image at 23:48 UTC on May 9. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be mostly quiet on May 9-11.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

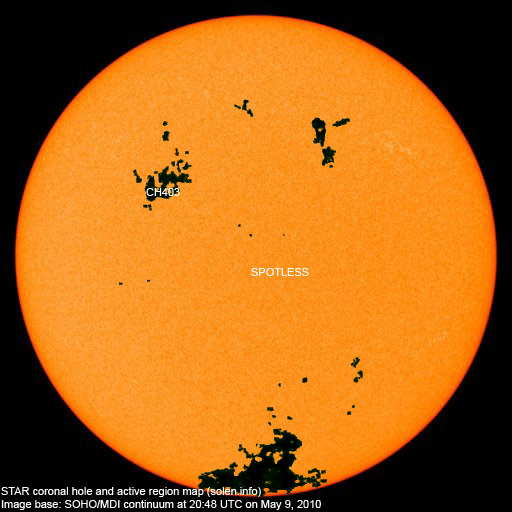

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered SWPC
spot
count
STAR
spot
count
Location at midnight Area SWPC
Classification
Comment
11067 2010.05.02     N23W36     plage
11068 2010.05.03     S19E02     plage
11070 2010.05.05     N21W47     plage
11071 2010.05.08     S20W55     plage
Total spot count: 0 0
SSN: 0 0

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.03 69.2 0.7 2.0 (+0.1) 4.85
2009.04 69.7 1.2 2.2 (+0.2) 4.52
2009.05 70.5 2.9 2.3 (+0.1) 4.75
2009.06 68.6 2.6 2.7 (+0.4) 5.22
2009.07 68.2 3.5 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.2 6.1 (+1.3) 3.88 / 3.61
2009.10 72.6 4.6 7.0 (+0.9) 3.66 / 3.56
2009.11 73.6 4.2 (7.7 predicted, +0.7) 2.45 / 2.63
2009.12 76.7 10.6 (8.9 predicted, +1.2) 1.41 / 1.92
2010.01 81.1 13.1 (10.2 predicted, +1.3) 2.93 / 3.07
2010.02 84.7 18.6 (11.8 predicted, +1.6) 4.15 / 4.61
2010.03 83.4 15.4 (13.7 predicted, +1.9) 4.58 / 4.65
2010.04 75.9 7.9 (15.3 predicted, +1.8) 10.22  / 10.24
2010.05 79.4 (1) 11.6 (2) (16.6 predicted, +1.3) (12.86)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Current impact on the monthly SSN based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
