Recent activity

The geomagnetic field was quiet on October 19. Solar wind speed ranged between 346 and 455 km/s under the influence of a relatively low speed stream from CH425.

Solar flux measured at 20h UTC on 2.8 GHz was 86.6 (up 1.8 over the last solar rotation). The planetary A index  was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.3). Three hour interval K indices: 22211002 (planetary), 23222111 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 5 spotted regions.

Region 11112 decayed further and is about to rotate over the southwest limb. Flares: C1.3 at 06:51 and long duration C1.1 at 10:14 UTC.
Region 11113 lost most of the spots it gained the previous day.
Region 11115 was quiet and stable.
New region 11117 rotated into view at the northeast limb late on October 18 and was numbered by NOAA/SWPC the following day.
New region 11118 emerged near the northeast limb on October 18 and was numbered the next day by NOAA/SWPC.

Coronal mass ejections (CMEs)

October 17-19: No obviously Earth directed CMEs were seen in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH425) in the northern hemisphere was in an Earth facing position on October 15-18. CH425 has decayed significantly over the last solar rotation (and split into two smaller parts CH425A and CH425B due to an active region emerging). Another recurrent coronal hole (CH426) has grown significantly over the last solar rotation and will be Earth facing October 20-22.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on October 20-22 due to coronal hole effects. Quiet to active conditions are possible on October 23-25 due to effects from CH426.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

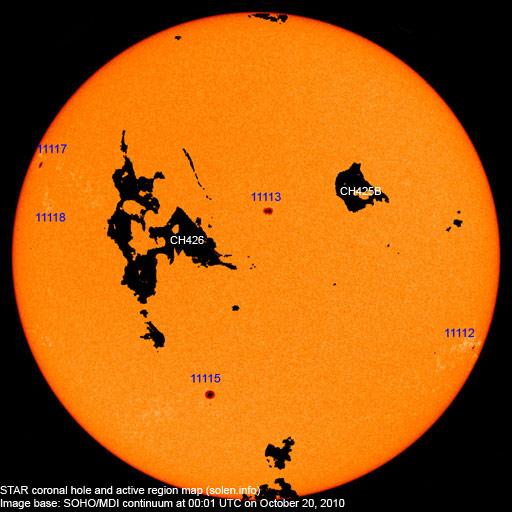

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11112 2010.10.09 8 5 S20W70 0060 EAI CSO area: 0030
11113 2010.10.13 2 3 N17W03 0130 HSX HAX
11115 2010.10.15 3 2 S29E13 0160 CSO CSO
11116 2010.10.16     N22W41           plage
S824 2010.10.18     N17E43         plage
11118 2010.10.19 1 1 N16E61 0000 AXX AXX formerly region S825
11117 2010.10.19 1 2 N25E74 0050 HSX HSX formerly region S826
S827 2010.10.18     N18W16         plage
Total spot count: 15 13
SSN: 65 63

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.07 68.2 3.2 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 (13.9 predicted, +1.6) 10.22 / 10.24
2010.05 73.8 8.7 (15.2 predicted, +1.3) 9.18 / 8.15
2010.06 72.5 13.6 (16.7 predicted, +1.5) 8.17 / 6.85
2010.07 79.8 16.1 (18.3 predicted, +1.6) 6.31 / 5.15
2010.08 79.2 19.6 (19.5 predicted, +1.2) 8.49 / 7.77
2010.09 81.1 25.2 (20.7 predicted, +1.2) 5.33
2010.10 79.9 (1) 17.6 (2A) / 28.8 (2B) (23.1 predicted, +2.4) (5.73)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
