Annotated geomagnetic activity charts - Carrington rotation 2106 [Jan.-Feb.2011] - 2107 [Feb.-March 2011]
The geomagnetic field was unsettled to active on April 3. Solar wind speed ranged between 514 and 714 km/s under the influence of a high speed coronal hole stream.
Solar flux estimated at 20h UTC on 2.8 GHz was 114.0 (decreasing 37.9 over the last solar rotation). The planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.4). Three hour interval K indices: 43333343 (planetary), 34333333 (Boulder).
The background x-ray flux is at the class B4 level.
At midnight UTC the visible solar disk had 6 spotted regions.
Region 11176 rotated out of view at the southwest limb. The region was the
source of a very long duration B9 event which was associated with a large and
slow CME off the southwest limb.
Region 11180 was quiet and stable.
Region 11183 decayed slowly and was mostly quiet. Flare: C1.2 at 05:19 UTC.
Region 11184 developed quickly and became the largest region on the visible disk. The development in this region has caused an increase in the background xray flux. C flares are likely. If the region develops further M class flares will become possible.
Spotted regions not numbered by NOAA/SWPC:
[S928] emerged with spots in an old plage field in the northeast quadrant on April 1. Location at midnight: N08E14
[S929] emerged in the southern hemisphere near the central meridian on April 1. Location at midnight: S25W28
[S931] rotated into view at the northeast limb on April 3. Location at midnight: N23E79
April 1-3: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since late October
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are currently in or near Earth facing positions.
The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on April 4 and quiet on April 5-6.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

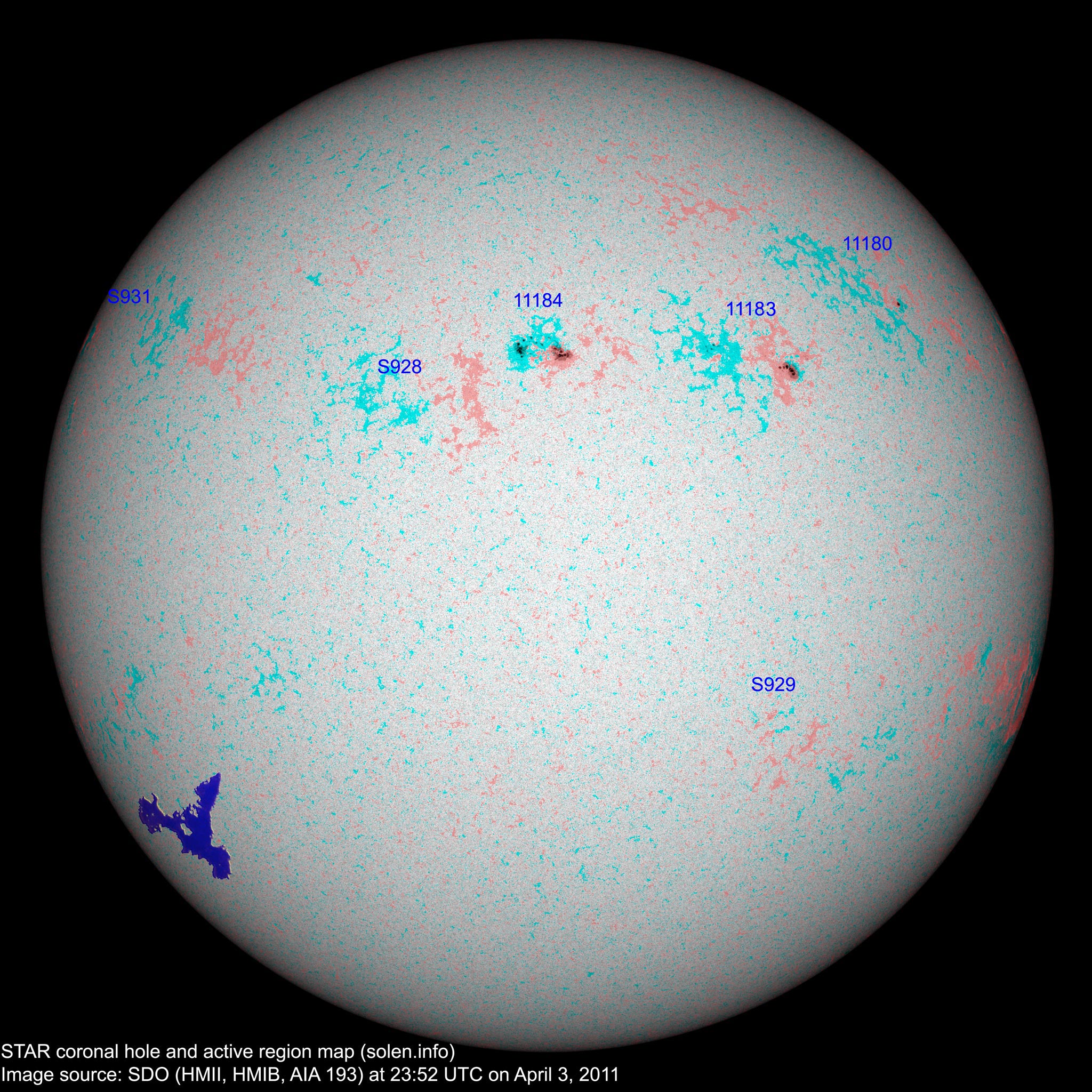

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with polarity overlay
|11176||2011.03.21||1||S18W90||0040||HSX||rotated out of view|
|Total spot count:||30||52|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2010.02||84.7||18.8||10.6 (+1.3)||4.15 / 4.61|
|2010.03||83.4||15.4||12.3 (+1.7)||4.58 / 4.65|
|2010.04||75.9||8.0||14.0 (+1.7)||10.22 / 10.24|
|2010.05||73.8||8.7||15.5 (+1.5)||9.18 / 8.15|
|2010.06||72.5||13.6||16.4 (+0.9)||8.17 / 6.85|
|2010.07||79.8||16.1||16.8 (+0.4)||6.31 / 5.15|
|2010.08||79.2||19.6||17.4 (+0.6)||8.49 / 7.77|
|2010.09||81.1||25.2||19.6 (+2.2)||5.33 / 5.45|
|2010.10||81.6||23.5||(22.6 predicted, +3.0)||6.07 / 6.27|
|2010.11||82.5||21.6||(25.8 predicted, +3.2)||4.80 / 5.50|
|2010.12||84.2||14.5||(28.9 predicted, +3.1)||3.41 / 4.35|
|2011.01||83.6||19.1||(31.9 predicted, +3.0)||4.32|
|2011.02||94.6||29.4||(34.4 predicted, +2.5)||5.41|
|2011.03||115.0||56.2||(36.7 predicted, +2.3)||7.79|
|2011.04||110.1 (1)||6.6 (2A) / 66.0 (2B)||(39.2 predicted, +2.5)||(16.54)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
