Recent activity

The geomagnetic field was quiet on February 7. Solar wind speed ranged between 402 and 549 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 82.3 (decreasing 0.3 over the last solar rotation). The planetary A index  was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.3). Three hour interval K indices: 10011111 (planetary), 20022121 (Boulder).

The background x-ray flux is at the class A6 level.

At midnight UTC the visible solar disk had 3 spotted regions.

Region 11150 reemerged with a single small spot.
Region 11153 developed slowly and gained penumbra on the leader spots.

Spotted regions not numbered by NOAA/SWPC:
[S872] This region emerged in the northeast quadrant on February 7. Location at midnight: N16E38

Early on February 8 no less than 3 new regions are visible with several spots, one was located at N07W37, another at S20E56 and the last at N20E50 (approximate locations at midnight). Region 11150 has become spotless while region 11153 has developed quickly (now classified as DAI) and may soon be capable of producing C flares.

Coronal mass ejections (CMEs)

February 5-7: No obviously Earth directed CMEs were observed in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No significant coronal holes are currently in or near Earth facing positions.

The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor and slowly improving. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on February 8-10 with a chance of occasional unsettled intervals due to weak coronal hole effects.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

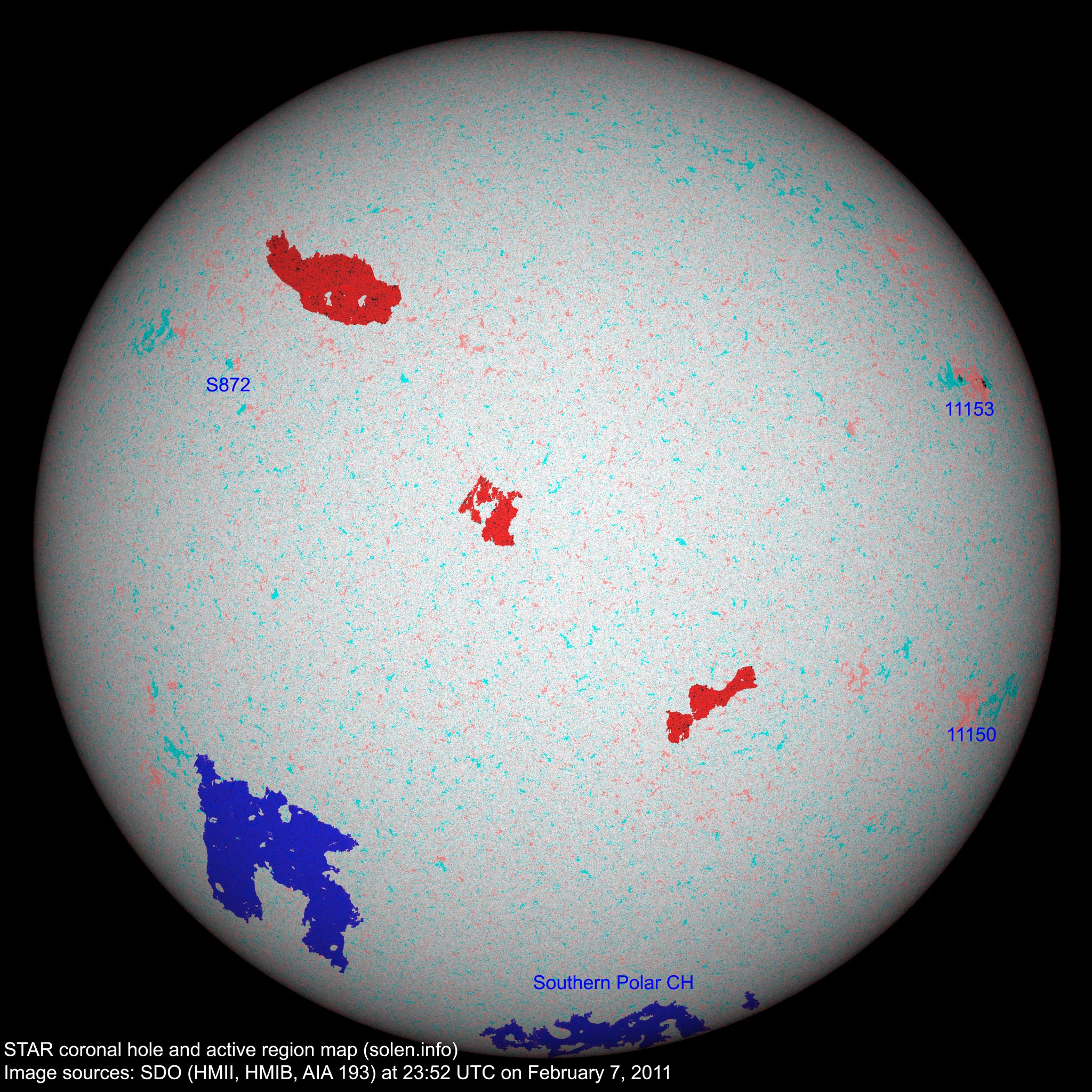

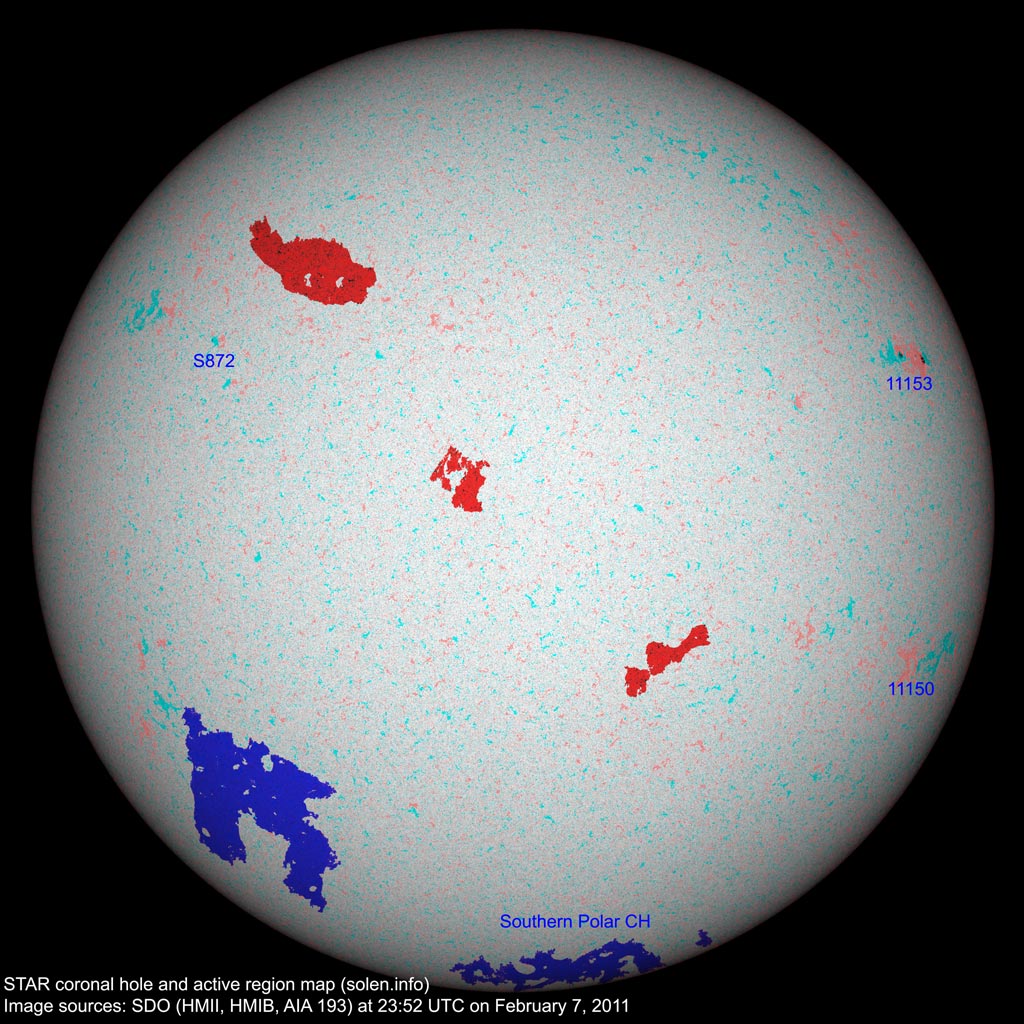

Active solar regions

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SWPC STAR Current Previous
11150 2011.01.26 1 1 S23W63 0000 AXX AXX
S868 2011.02.02     N36W55           plage
11153 2011.02.04
2011.02.02
7 10 N15W56 0030 DRO CAO
11152 2011.02.03
2011.02.02
    S20W39         plage
S871 2011.02.04     S17W47           plage
S872 2011.02.07   1 N16E38 0000   AXX   plage
Total spot count: 8 12
Sunspot number: 28 42

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 16.8 (+0.4) 6.31 / 5.15
2010.08 79.2 19.6 (17.1 predicted, +0.3) 8.49 / 7.77
2010.09 81.1 25.2 (17.7 predicted, +0.6) 5.33 / 5.45
2010.10 81.6 23.5 (19.0 predicted, +1.3) 6.07 / 6.27
2010.11 82.5 21.6 (20.7 predicted, +1.7) 4.80 / 5.50
2010.12 84.2 14.5 (22.2 predicted, +1.5) 3.41 / 4.35
2011.01 83.6 19.1 (23.8 predicted, +1.6) 4.32
2011.02 80.7 (1) 7.7 (2A) / 30.9 (2B) (25.5 predicted, +1.7) (9.04)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
