Solar Terrestrial Activity Report

Last major update issued on February 28, 2011 at 05:20 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update February 1, 2011)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update February 1, 2011)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update February 1, 2011)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update February 1, 2011)]

[POES auroral activity level charts since October 2009 - updated February 26, 2011]
Annotated geomagnetic activity charts - Carrington rotation 2105 [Dec-Jan.2011] - 2106 [Jan.-Feb.2011] NEW

Recent activity

The geomagnetic field was very quiet on February 27. Solar wind speed ranged between 282 and 329 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 90.4 (increasing 9.1 over the last solar rotation). The planetary A index  was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.8). Three hour interval K indices: 10001101 (planetary), 10001110 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 3 spotted regions.

Region 11163 decayed further losing all trailing spots
Region 11164 lost some of its magnetic complexity as the magnetic delta configuration weakened. There is still a chance of an M class flare. Flare: C4.2 at 03:55 UTC.
Region 11165 lost its trailing spots and was quiet.

Coronal mass ejections (CMEs)

February 25-27: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH437) was in an Earth facing position on February 25-26 and has since then decayed and closed. Another part (CH438) of what was a single coronal hole during the previous rotation, will be Earth facing on February 27 -  March 1. CH438 is a large trans equatorial coronal hole.

The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on February 27-28. Quiet to unsettled is possible on March 1 due to effects from CH437 and quiet to minor storm on March 2-3 due to a high speed stream from CH438.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

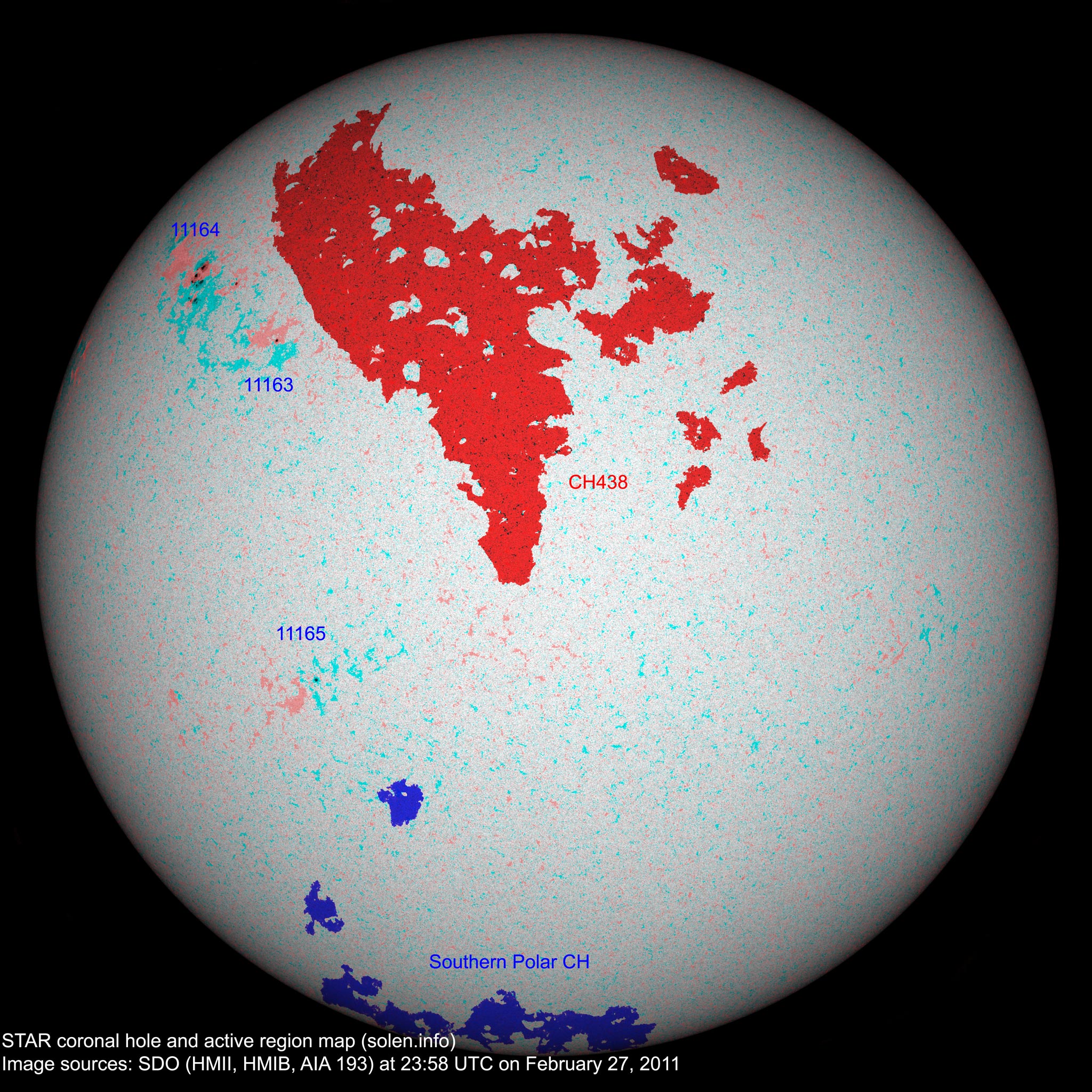

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
S885 2011.02.22     S14W49           plage
11163 2011.02.24 1 1 N18E32 0010 AXX AXX
11164 2011.02.25 12 22 N27E46 0170 ESO EAI beta-gamma
S886 2011.02.25     N12W58           plage
11165 2011.02.26
2011.02.25
1 3 S21E29 0010 AXX HRX
Total spot count: 14 26
Sunspot number: 44 56

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 16.8 (+0.4) 6.31 / 5.15
2010.08 79.2 19.6 (17.1 predicted, +0.3) 8.49 / 7.77
2010.09 81.1 25.2 (17.7 predicted, +0.6) 5.33 / 5.45
2010.10 81.6 23.5 (19.0 predicted, +1.3) 6.07 / 6.27
2010.11 82.5 21.6 (20.7 predicted, +1.7) 4.80 / 5.50
2010.12 84.2 14.5 (22.2 predicted, +1.5) 3.41 / 4.35
2011.01 83.6 19.1 (23.8 predicted, +1.6) 4.32
2011.02 94.5 (1) 51.0 (2A) / 52.9 (2B) (25.5 predicted, +1.7) (5.51)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
