Recent activity

The geomagnetic field was quiet to unsettled on January 11. Solar wind speed ranged between 434 and 561 km/s under the influence of a high speed coronal hole stream. Another high speed coronal hole stream originating in CH433 appears to have begun dominating the solar wind early on January 12.

Solar flux measured at 20h UTC on 2.8 GHz was 82.6 (down 4.3 over the last solar rotation). The planetary A index  was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.0). Three hour interval K indices: 12002223 (planetary), 12012322 (Boulder).

The background x-ray flux is at the class A6 level.

At midnight UTC the visible solar disk had 2 spotted regions.

Region 11140 decayed slowly and will be rotating over the northwest limb today.
Region 11146 did not display any significant changes.

Coronal mass ejections (CMEs)

January 9-11: No obviously Earth directed CMEs were observed in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH433) was in an Earth facing position on January 9-12.

The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on January 12-15 due to effects from CH433, occasional active intervals are possible.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

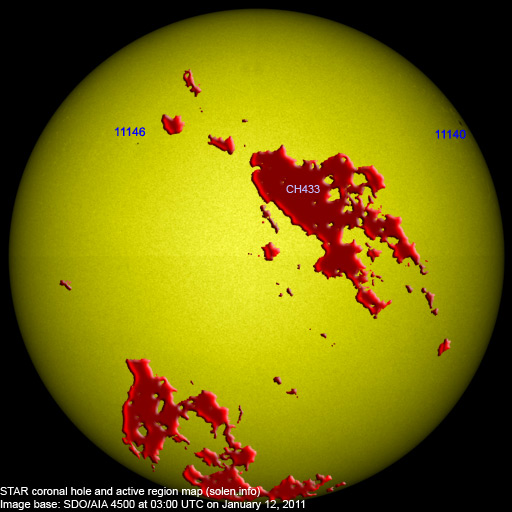

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11140 2010.12.31 3 1 N33W74 0120 CSO HSX



11143 2011.01.07     S23W37           plage
11144 2011.01.09     S16W62           plage
11145 2011.01.09     N16E14
11146 2011.01.10 3 3 N23E33 0010 BXO BXO



Total spot count: 6 4
Sunspot number: 26 24

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 (17.0 predicted, +0.6) 6.31 / 5.15
2010.08 79.2 19.6 (17.9 predicted, +0.9) 8.49 / 7.77
2010.09 81.1 25.2 (19.0 predicted, +1.1) 5.33 / 5.45
2010.10 81.6 23.5 (20.7 predicted, +1.7) 6.07 / 6.27
2010.11 82.5 21.6 (23.0 predicted, +2.3) 4.80
2010.12 84.2 14.5 (25.3 predicted, +2.3) 3.41
2011.01 87.2 (1) 16.2 (2A) / 45.5 (2B) (27.7 predicted, +2.4) (5.16)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
