Last major update issued on March 15, 2011 at 05:10 UTC.
[Solar and geomagnetic data - last month (updated
daily)]
[Solar wind and electron fluence charts (updated
daily)
[Solar cycles 21-24 (last update March 2, 2011)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last
update March 2, 2011)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and
24 (last update March 2, 2011)]
[Historical solar and geomagnetic data charts 1954-2006
(last update April 5, 2007)]
[Archived reports since January 2003 (last update March
1, 2011)]
[POES auroral activity level charts since October
2009 - updated March 11, 2011]
Annotated geomagnetic activity charts - Carrington rotation 2105 [Dec-Jan.2011] - 2106 [Jan.-Feb.2011]
NEW
The geomagnetic field was quiet on March 14. Although the main solar wind influence was CH439, the interplanetary magnetic field was predominantly northwards.
Solar flux measured at 20h UTC on 2.8 GHz was 107.4 (decreasing 5.4 over the last solar rotation). The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.9). Three hour interval K indices: 11100011 (planetary), 11110110 (Boulder).
The background x-ray flux is at the class B4 level.
At midnight UTC the visible solar disk had 6 spotted regions.
Region 11166 decayed further and will rotate over the northwest limb
today. Flare: C4.0 at 00:20 UTC.
Region 11169 lost the spots in the northeastern part of the region. There
is still a magnetic delta structure at the southern edge of the main penumbra. Another M class
flare is possible. Flares: C1.0 at 05:08, C2.2 at 16:09, M4.2/1N at
19:52, C5.2 at 23:37 UTC. The region was the source of an impulsive M1.0 flare
at 00:22 UTC.
Region 11171 was quiet and stable.
Region 11172 finally developed spots in both polarities. Flare: C1.4 at 08:15 UTC.
Spotted regions not numbered by NOAA/SWPC:
[S902] The spots in the southern part of the region disappeared while
a new spot emerged in the northern part.
Location at midnight: N21W15.
[S904] A new region emerged in the southeast quadrant on March 13 and
decayed slightly on March 14. Location a midnight: S24E09
March 12-14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since late October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days
ago 26
days ago
A small coronal hole (CH440) in the northern hemisphere will be in an Earth facing position on March 15.
The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on March 15-19 with a possibility of unsettled intervals on March 18-19 due to effects from CH440.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

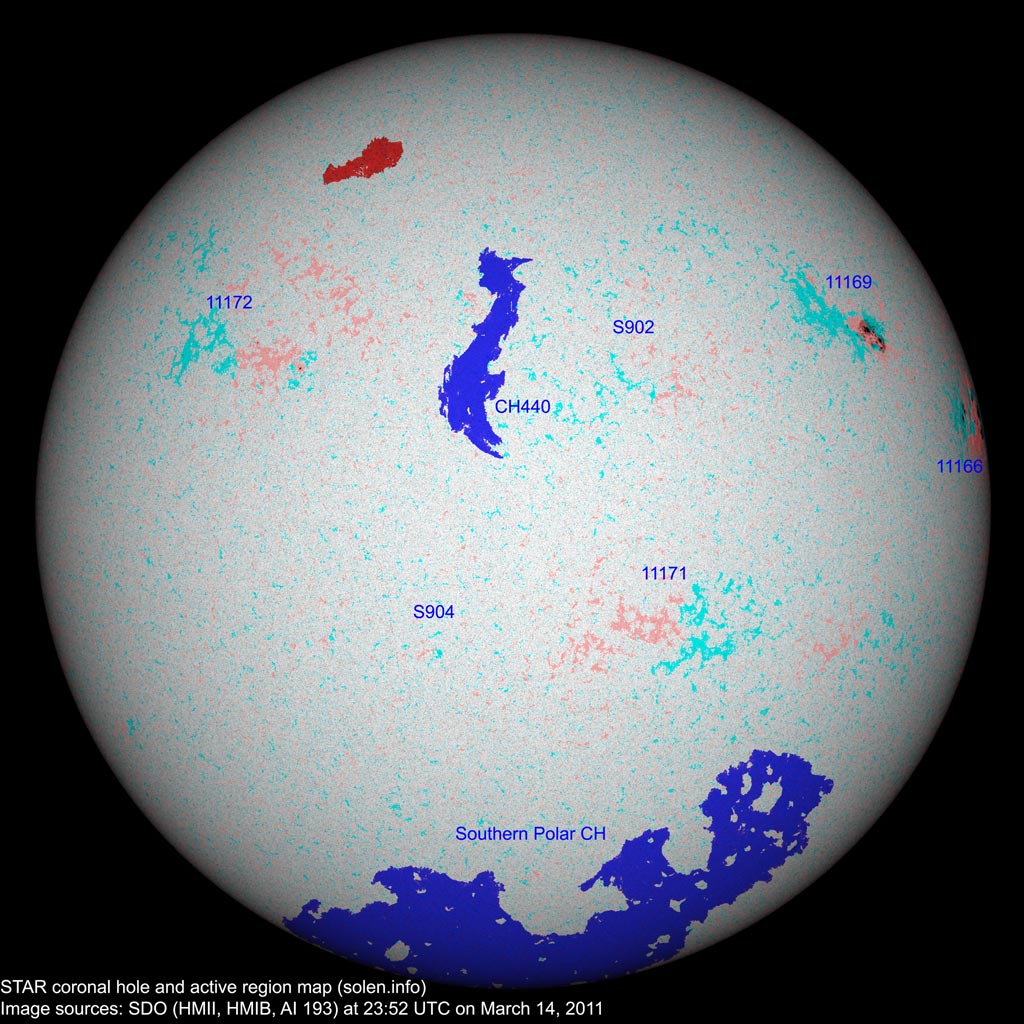

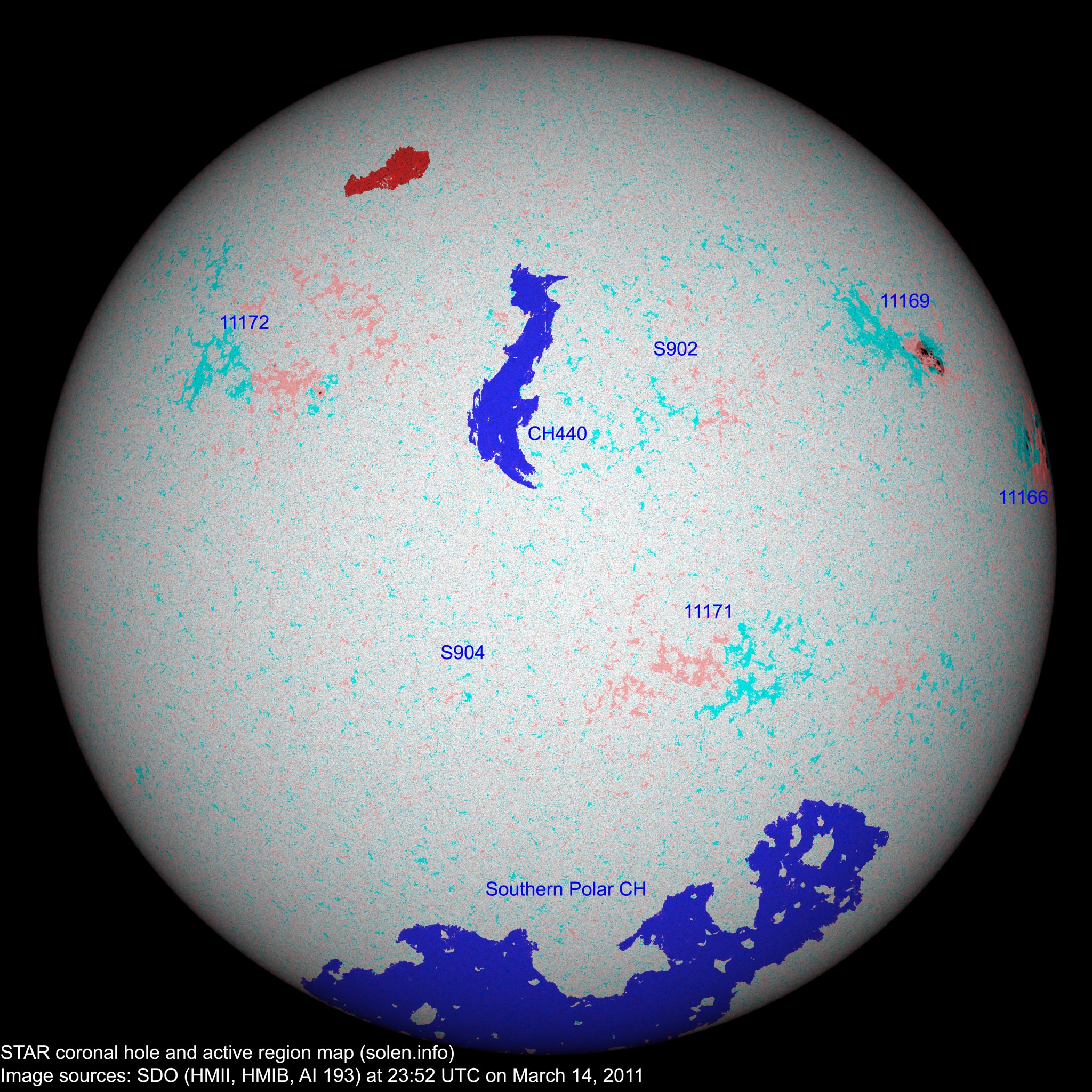

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11166 | 2011.03.02 | 9 | 12 | N09W78 | 0450 | DAO | DSO |
 |
 |
|
| 11169 | 2011.03.05 2011.03.06 |
8 | 28 | N18W47 | 0360 | DAO | CKO |
 |
 |
beta-delta |
| S898 | 2011.03.07 | S13W41 | plage | |||||||
| 11171 | 2011.03.08 | 4 | S19W15 | 0000 | BXO |
 |
 |
location of spots: S20W20 | ||
| S900 | 2011.03.08 | S18W51 | plage | |||||||
| S902 | 2011.03.10 | 1 | N21W15 | 0000 | AXX |
 |
 |
|||
| 11172 | 2011.03.10 2011.03.11 |
4 | 4 | N14E30 | 0020 | BXO | HRX |
 |
 |
location: N13E37 |
| S904 | 2011.03.13 | 1 | S24E09 | 0000 | AXX |
 |
 |
|||
| Total spot count: | 21 | 50 | ||||||||
| Sunspot number: | 51 | 110 | ||||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2009.12 | 76.7 | 10.8 | 8.3 (+0.7) | 1.41 / 1.92 |
| 2010.01 | 81.1 | 13.2 | 9.3 (+1.0) | 2.93 / 3.07 |
| 2010.02 | 84.7 | 18.8 | 10.6 (+1.3) | 4.15 / 4.61 |
| 2010.03 | 83.4 | 15.4 | 12.3 (+1.7) | 4.58 / 4.65 |
| 2010.04 | 75.9 | 8.0 | 14.0 (+1.7) | 10.22 / 10.24 |
| 2010.05 | 73.8 | 8.7 | 15.5 (+1.5) | 9.18 / 8.15 |
| 2010.06 | 72.5 | 13.6 | 16.4 (+0.9) | 8.17 / 6.85 |
| 2010.07 | 79.8 | 16.1 | 16.8 (+0.4) | 6.31 / 5.15 |
| 2010.08 | 79.2 | 19.6 | 17.4 (+0.6) | 8.49 / 7.77 |
| 2010.09 | 81.1 | 25.2 | (19.1 predicted, +1.7) | 5.33 / 5.45 |
| 2010.10 | 81.6 | 23.5 | (21.7 predicted, +2.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.6 | (24.5 predicted, +2.8) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.5 | (26.9 predicted, +2.4) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | (29.0 predicted, +2.1) | 4.32 |
| 2011.02 | 94.6 | 29.4 | (31.1 predicted, +2.1) | 5.41 |
| 2011.03 | 127.8 (1) | 43.2 (2A) / 95.6 (2B) | (33.0 predicted, +1.9) | (12.96) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
