The geomagnetic field was quiet to active on August 11 under the influence of a high speed stream from CH1093. Solar wind speed at SOHO ranged between 496 and 605 km/sec. The high latitude magnetometer at Andenes recorded unsettled to major storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 114.8 - decreasing 56.6 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 107.83). The Potsdam WDC planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.1). Three hour interval K indices: 22233443 (planetary), 22343433 (Boulder), 54335566 (Andenes).
The background x-ray flux is at the class B3 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 16 active regions using 2K resolution (SN: 241) and in 11 active regions using 1K resolution (SN: 144) SDO/HMI images.
Region 13071 [S18W48] was quiet and stable.

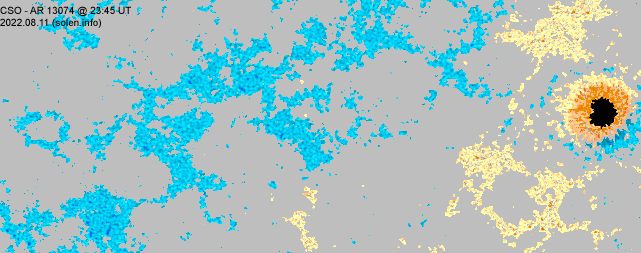

Region 13074 [S17W10] was quiet and stable.

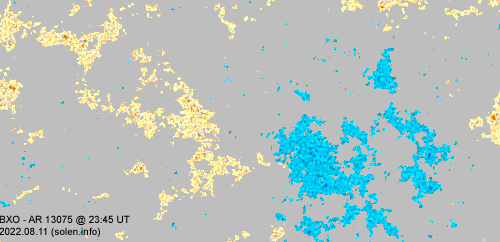

Region 13075 [N22E08] decayed slowly and quietly.
Region 13076 [N15E17] was mostly quiet and stable.
C1 flare: C1.1 @ 16:24 UT.
Region 13077 [S18W34] decayed slowly and was mostly quiet. C1
flares: C1.1 @ 06:17 and a C1.2 long duration event peaking at 06:58 UT.
Region 13078 [S23E47] was quiet and stable. The region has reversed
polarities.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7752 [N24W43] reemerged with tiny spots.
S7755 [N30W07] reemerged with tiny spots.
S7763 [N30W02] was quiet and stable.
S7764 [N15W54] decayed slowly and quietly.
S7765 [S27W24] decayed slowly and quietly.
S7766 [S08E64] was quiet and stable.
New region S7767 [N17E17] emerged with several spots just north of AR
13076. The 2 regions could merge if there is further development.
New region S7768 [N12E70] rotated into view with tiny spots.
New region S7769 [N20W23] emerged with tiny spots.
New region S7770 [S10E02] emerged with several spots and has
development potential.
New region S7771 [S25E41] emerged with a tiny spot.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
August 9-11: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A coronal hole (CH1093) formed after a filament eruption in the southeast quadrant and was Earth facing on August 7-8. A recurrent trans equatorial coronal hole (CH1094) will likely rotate across the central meridian on August 14-16.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
Quiet to active conditions are likely on August 12 due to effects from CH1093. Quiet is likely on August 13-14.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

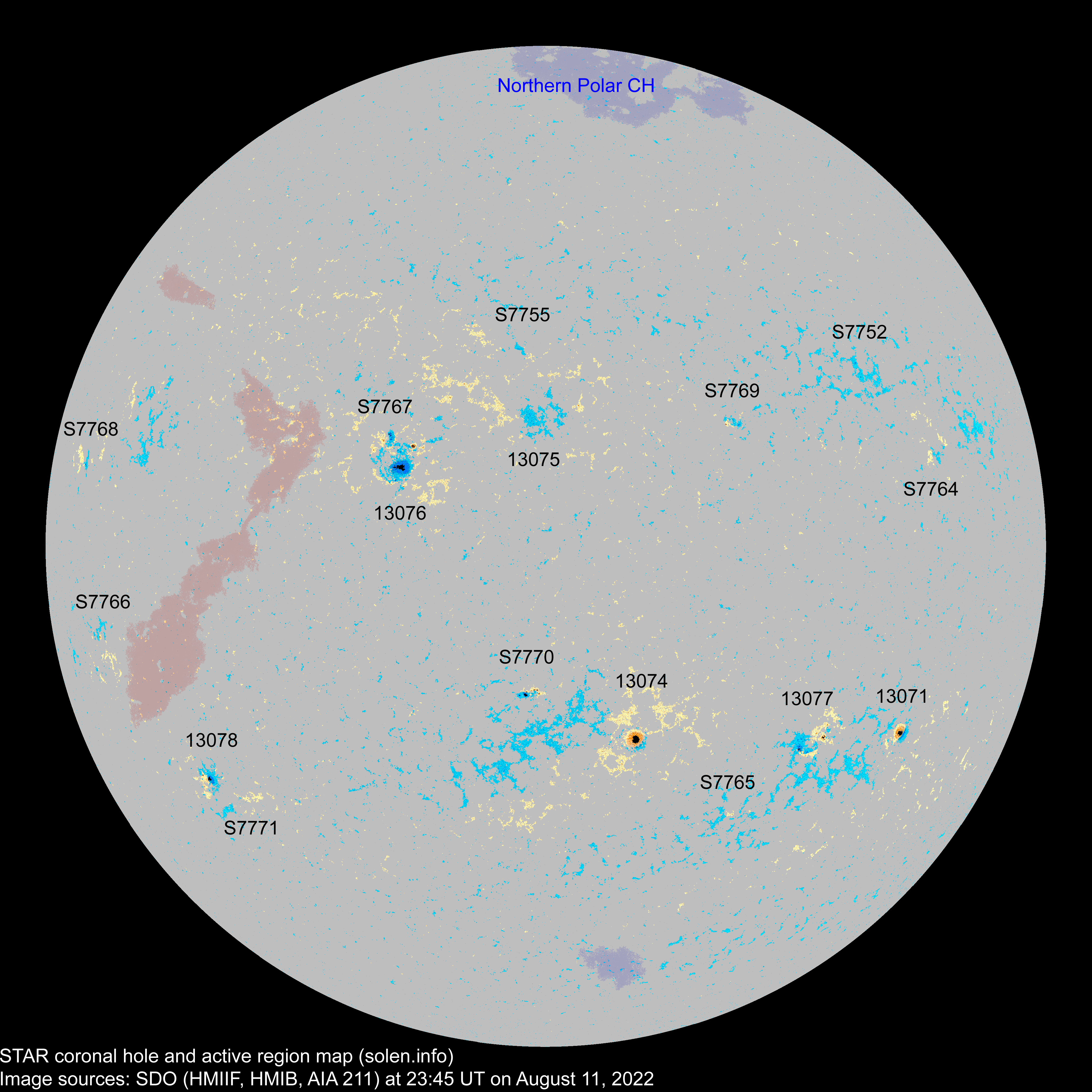

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13071 | 2022.08.01 2022.08.03 |
1 | 1 | 1 | S17W50 | 0070 | HSX | HSX |
 |
 |
location: S18W48 area: 0120 |
| 13074 | 2022.08.04 2022.08.05 |
1 | 8 | 3 | S17W13 | 0130 | HSX | CSO |
 |
 |
area: 0160 location: S17W10 |
| 13075 | 2022.08.05 2022.08.07 |
8 | N18W02 | 0012 | BXO |
 |
 |
location: N22E05 | |||
| S7752 | 2022.08.06 | 3 | 2 | N24W43 | 0007 | AXX |
 |
||||
| 13076 | 2022.08.06 2022.08.07 |
1 | 7 | 2 | N13E16 | 0120 | CAO | CAO |
 |
 |
location: N15E17 |
| S7755 | 2022.08.07 | 3 | N30W07 | 0005 | BXO |
 |
|||||
| 13077 | 2022.08.07 2022.08.09 |
4 | 14 | 7 | S17W37 | 0040 | CAO | DRI |
 |
 |
location: S18W33 |
| S7758 | 2022.08.08 | S29W23 | |||||||||
| S7761 | 2022.08.08 | N08W39 | |||||||||
| 13078 | 2022.08.09 2022.08.10 |
1 | 4 | 3 | S27E45 | 0080 | HSX | CAO |
 |
 |
area: 0040 location: S23E47 |
| S7763 | 2022.08.09 | N30W15 |
 |
||||||||
| S7764 | 2022.08.10 | 1 | N15W54 | 0001 | AXX |
 |
 |
||||
| S7765 | 2022.08.10 | 1 | S27W23 | 0001 | AXX |
 |
 |
||||
| S7766 | 2022.08.10 | 2 | 1 | S08E64 | 0004 | AXX |
 |
 |
|||
| S7767 | 2022.08.11 | 15 | 7 | N17E17 | 0050 | DRI |
 |
||||
| S7768 | 2022.08.11 | 3 | 1 | N12E70 | 0005 | BXO |
 |
||||
| S7769 | 2022.08.11 | 4 | 2 | N20W23 | 0010 | BXO |
 |
||||
| S7770 | 2022.08.11 | 6 | 5 | S10E02 | 0030 | DRI |
 |
||||
| S7771 | 2022.08.11 | 1 | S25E41 | 0001 | AXX |
 |
|||||
| Total spot count: | 8 | 81 | 34 | ||||||||
| Sunspot number: | 58 | 241 | 144 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 33 | 110 | 63 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 64 | 133 | 115 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2021.01 | 76.0 | 73.6 | 10.4 | 17.3 (+2.0) | 4.39 |
| 2021.02 | 74.3 | 72.4 | 8.2 | 19.0 (+1.7) | 9.50 |
| 2021.03 | 76.0 | 75.2 | 17.2 | 21.7 (+2.7) | 10.17 |
| 2021.04 | 75.9 | 76.4 | 24.5 | 24.8 (+3.1) | 8.40 |
| 2021.05 | 75.3 | 77.1 | 21.2 | 25.8 (+1.0) | 6.50 |
| 2021.06 | 79.4 | 81.8 | 25.0 | 27.6 (+1.8) | 5.52 |
| 2021.07 | 81.0 | 83.6 | 34.3 | 31.4 (+3.8) | 5.51 |
| 2021.08 | 77.7 | 79.7 | 22.0 | 35.4 (+4.0) | 6.19 |
| 2021.09 | 87.0 | 88.2 | 51.3 | 40.2 (+4.8) | 6.33 |
| 2021.10 | 88.9 | 88.3 | 37.4 | 45.2 (+5.0) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 34.8 | 50.8 (+5.6) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.5 | 55.9 (+5.1) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | (65.8 projected, +5.7) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | (70.8 projected, +5.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.1 | (75.9 projected, +5.1) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | (82.4 projected, +6.5) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.5 | (88.3 projected, +5.9) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | (95.5 projected, +7.2) | 9.51 |
| 2022.08 | 108.3 (1) | 19.7 (2A) / 55.5 (2B) / 95.6 (2C) | (102.0 projected, +6.5) | (12.0) | |
| 2022.09 | (106.9 projected, +4.9) | ||||
| 2022.10 | (110.1 projected, +3.2) | ||||
| 2022.11 | (112.9 projected, +2.8) | ||||
| 2022.12 | (117.7 projected, +4.8) | ||||
| 2023.01 | (123.7 projected, +6.0) | ||||
| 2023.11 | (142.5 projected max SC25) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
