Report for January 18 issued on January 20, 2003 at 02:40 UTC.
[Solar and geomagnetic data
- last 4 weeks (updated daily)]
[Solar wind and electron
fluence charts (updated daily)]
[Solar cycles 21-23 (last
update January 1, 2003)]
[Solar cycles 1-20]
[Graphical comparison of
cycles 21, 22 and 23 (last update January 1, 2003)]
[Graphical comparison of
cycles 10, 13, 17, 20 and 23 (last update January 1, 2003)]
[Historical solar and geomagnetic
data charts 1954-2002 (last update October 13, 2002)]
[Archived reports (last update January 13, 2003)]
The geomagnetic field was quiet to unsettled on January 17. Solar wind speed ranged between 323 and 380 km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 141.7. The planetary A
index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 9.3).
Three hour interval K indices: 22233321 (planetary), 21233322 (Boulder).
The background x-ray flux is at the class B3 level.
At midnight there were 8 spotted regions on the visible disk. Solar flare activity was very low. No C class flares were recorded.
Region 10247 decayed further and had only a single tiny spot left at midnight.
Region 10250 was quiet and stable.
Region 10251 decayed further and lost all trailing spots.
Region 10254 decayed slowly and quietly with the trailing penumbra losing area.
Region 10255 was split off from region 10251 on January 12 by SEC/NOAA. This split was doubtful even then and it is
currently obvious that it was a premature decision.
Region 10256 was split off from region 10254 on January 12 by SEC/NOAA.
Regions 10254 and 10256 make up one bipolar region with the negative polarity area in the west and the positive
area to the east. It remains to be seen if SEC will merge the "two" regions again.
Region 10257 developed slowly and was quiet.
Region 10258 was quiet and stable.
Region 10259 developed slowly and quietly.
Region 10260 decayed slowly losing penumbral area.
January 15-17: No obviously geoeffective CMEs observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28
days ago 27 days ago 26 days ago
A large and wide trans equatorial extension of the southern polar coronal hole in the will rotate into a geoeffective position on January 19-23.
Processed SOHO EIT 284 image at 19:06 UTC on January 17. Any black areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to active until January 26 due to coronal streams, occasional minor storm intervals are possible. Long distance medium wave (AM) band propagation along east-west paths over high and upper middle latitudes is fair.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
 |
 |
|
1) Effects from a coronal hole could reach Earth within the
next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

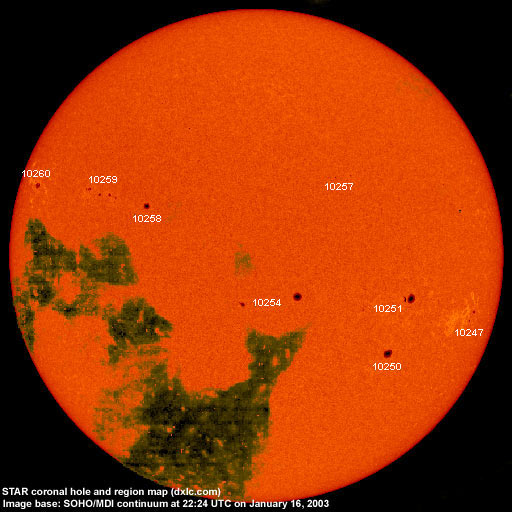

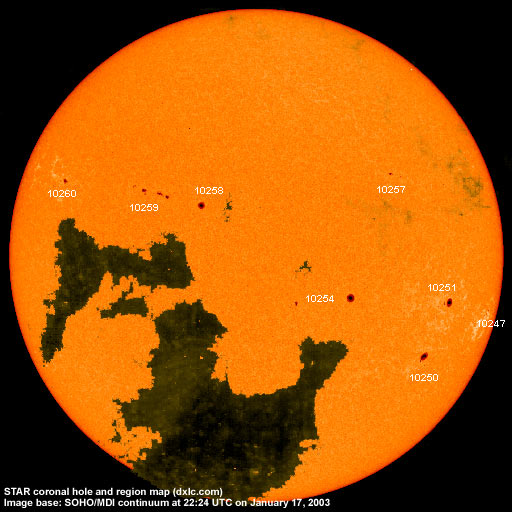

Composite image based on a SOHO/MDI continuum image and overlaid by a coronal hole image. Region numbering has been included. Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by SEC/NOAA. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.
| Solar region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
|---|---|---|---|---|---|---|---|
| 10247 | 2003.01.06 | 3 | 1 | S13W76 | 0010 | BXO |
classification was AXX at midnight, area 0000 |
| 10250 | 2003.01.07 | 5 | 5 | S26W50 | 0120 | CAO | |
| 10251 | 2003.01.07 | 6 | 5 | S14W46 (SEC: S16W41) |
0010 | BXO |
classification was HSX at midnight, area 0090, region 10255 included |
| 10252 | 2003.01.09 | S03W47 | plage | ||||
| 10254 | 2003.01.10 | 1 | 5 | S14W18 (SEC: S14W24) |
0110 | HSX |
location corrected, classification was ESO at midnight, area 0120. STAR spot count includes region 10256. |
| 10255 | 2003.01.12 | 6 | S12W53 | 0130 | CAO |
split off from region 10251 |
|
| 10256 | 2003.01.12 | 5 | S16W12 | 0040 | CAO |
split off from region 10254. Only positive polarity spots. |
|
| 10257 | 2003.01.13 | 3 | 5 | N16W36 | 0010 | BXO |
classification was CAO at midnight, area 0030 |
| 10258 | 2003.01.14 | 1 | 1 | N07E12 | 0070 | HSX | |
| 10259 | 2003.01.14 | 17 | 16 | N09E26 | 0060 | EAO |
classification was DAO at midnight |
| 10260 | 2003.01.15 | 3 | 5 | N14E53 | 0070 | CAO | |
| Total spot count: | 50 | 43 | |||||
| SSN: | 150 | 123 | |||||
| Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
|---|---|---|---|
| 2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
| 2000.07 | 202.3 | 170.1 | 119.8 |
| 2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
| 2002.01 | 226.6 | 114.1 | 113.5 (-1.1) |
| 2002.02 | 205.0 | 107.4 | 114.6 (+1.2) |
| 2002.03 | 179.5 | 98.4 | 113.3 (-1.3) |
| 2002.04 | 189.8 | 120.7 | 110.5 (-2.9) |
| 2002.05 | 178.4 | 120.8 | 108.8 (-1.7) |
| 2002.06 | 148.7 | 88.3 | 106.2 (-2.6) |
| 2002.07 | 173.5 | 99.6 | (102.1 predicted, -4.1) |
| 2002.08 | 183.6 | 116.4 | (98.5 predicted, -3.6) |
| 2002.09 | 175.8 | 109.6 | (95.5 predicted, -3.0) |
| 2002.10 | 167.0 | 97.5 | (92.0 predicted, -3.5) |
| 2002.11 | 168.7 | 95.0 | (86.7 predicted, -5.3) |
| 2002.12 | 157.2 | 81.6 | (82.4 predicted, -4.3) |
| 2003.01 | 156.6 (1) | 87.2 (2) | (79.4 predicted, -3.0) |
1) Running average based on the daily 20:00 UT observed solar flux value at 2800
MHz.
2) Unofficial, accumulated value based on the Boulder (SEC/NOAA) sunspot number. The official
international sunspot number is typically 25-45% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and interpretations, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
