The geomagnetic field was quiet to unsettled on May 4. Solar wind speed ranged between 349 and 447 km/sec. A low speed stream from coronal hole CH94 arrived at ACE at 00:30 UTC.
Solar flux measured at 20h UTC on 2.8 GHz was 87.4. The planetary A
index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.9).
Three hour interval K indices: 23323223 (planetary), 33322223 (Boulder).
The background x-ray flux is at the class A8 level.
At midnight there were 3 spotted regions on the visible disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10601 decayed quickly in the trailing spot section where all penumbra disappeared, the region is about to rotate
out of view.
Region 10604 decayed slowly as the small trailing spots disappeared.
New region 10605 emerged in the southeast quadrant on May 3 and was numbered by SEC the next day. The region developed
moderately quickly on May 4 and could produce C flares. The most interesting part of the region is an area at and near the
northernmost penumbra, this is where there is very little separation between opposite polarity spots.
May 2-4: No fully or partly Earth directed CME observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28
days ago 27 days ago 26 days ago

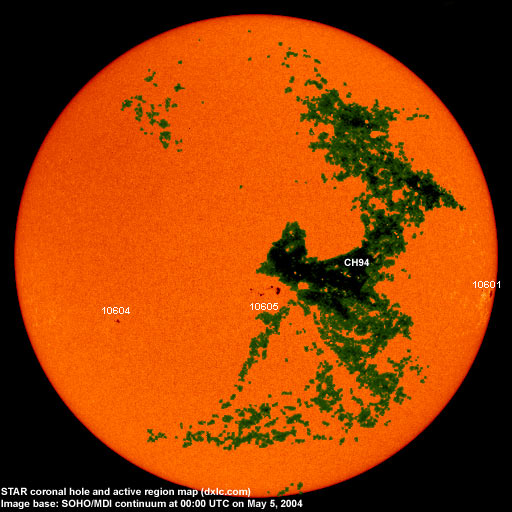

A large trans equatorial coronal hole (CH94) was in a geoeffective position on May 1 - May 4. The development of region 10605 caused a significant decrease in the southeasternmost part of the coronal hole on May 3-4.
Processed SOHO/EIT 284 image at 01:05 UTC on May 5. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to active on May 5-7 due to a high speed stream from coronal hole CH94. Occasional minor storm intervals are possible on May 6-7.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
 |
|
|
1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along long distance north-south paths is poor to fair. Trans Atlantic propagation conditions are monitored every night on 1470 kHz. Dominant stations tonight: CPN Radio (Perú) prior to 02:30 UTC, then Radio Vibración (Venezuela). A few stations from the easternmost parts of the USA and Canada were noted on other frequencies with WWZN Boston on 1510 kHz the best].
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
| Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
|---|---|---|---|---|---|---|---|
| 10601 | 2004.04.30 | 10 | 2 | S09W77 | 0180 | EAO |
classification was CSO at midnight, area 0090 |
| 10603 | 2004.05.01 | 2 | S16W78 | 0010 | BXO | spotless | |
| 10604 | 2004.05.03 | 5 | 3 | S19E38 | 0050 | CSO |
classification was HAX at midnight, area 0040 |
| 10605 | 2004.05.04 | 6 | 18 | S12W02 | 0040 | CSO |
formerly region S398 classification was DAI at midnight, area 0120 |
| Total spot count: | 23 | 23 | |||||
| SSN: | 63 | 53 | |||||
| Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
|---|---|---|---|
| 2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
| 2000.07 | 202.3 | 170.1 | 119.8 |
| 2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
| 2003.04 | 126.4 | 60.0 | 70.1 (-3.9) |
| 2003.05 | 115.7 | 55.2 | 67.6 (-2.5) |
| 2003.06 | 129.3 | 77.4 | 65.0 (-2.6) |
| 2003.07 | 127.7 | 83.3 | 61.8 (-3.2) |
| 2003.08 | 122.1 | 72.7 | 60.0 (-1.8) |
| 2003.09 | 112.2 | 48.7 | 59.5 (-0.5) |
| 2003.10 | 151.7 | 65.5 | 58.1 (-1.4) |
| 2003.11 | 140.8 | 67.3 | (56.5 predicted, -1.6) |
| 2003.12 | 114.9 | 46.5 | (53.5 predicted, -3.0) |
| 2004.01 | 114.1 | 37.2 | (49.1 predicted, -4.4) |
| 2004.02 | 107.0 | 46.0 | (44.8 predicted, -4.3) |
| 2004.03 | 112.0 | 48.9 | (42.1 predicted, -2.7) |
| 2004.04 | 101.2 | 39.3 | (40.0 predicted, -2.1) |
| 2004.05 | 92.6 (1) | 7.1 (2) | (36.8 predicted, -3.2) |
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically
30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
