Solar Terrestrial Activity Report

Last major update issued on April 11, 2005 at 03:50 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update April 4, 2005)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update April 4, 2005)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update April 4, 2005)]
[Historical solar and geomagnetic data charts 1954-2004 (last update February 1, 2005)]
[Archived reports (last update April 2, 2005)]

Recent activity

The geomagnetic field was quiet on April 10. Solar wind speed ranged between 316 and 341 km/sec.

Solar flux measured at 20h UTC on 2.8 GHz was 88.3. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.0).
Three hour interval K indices: 10012211 (planetary), 10002111 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10750 developed early in the day, then began to decay slowly.
Region 10751 developed further and rotated partly out of view at the southwest limb. Quite a bit of sub flare activity was observed all day.

Coronal mass ejections (CMEs)

April 8-10: No obvious fully or partly Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH157) in the northern hemisphere will be in an earth facing position on April 9-10.

Processed SOHO/EIT 284 image at 19:06 UTC on April 10. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on April 11 and quiet to active on April 12-13 due to effects from CH157.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to very poor. Propagation along long distance north-south paths is poor to very poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela) was audible at 02 UTC, no stations were heard after 03h UTC. Only a few stations from North America were noted around 02h UTC. KVNS on 1700 kHz was the most distant signal. After 03h UTC only CJYQ on 930 kHz was there with a weak signal.

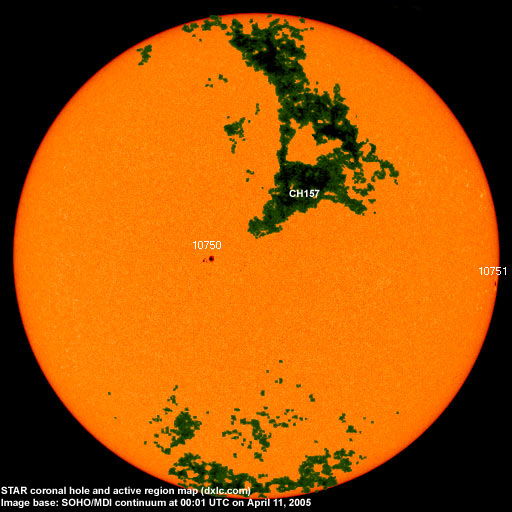

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10748 2005.03.31     N11W70     plage
10749 2005.04.03 1   S06W30 0010 AXX spotless
10750 2005.04.05 6 4 S07E12 0070 DSO
10751 2005.04.08 5 1 S07W83 0060 DSO classification was HAX at midnight
S533 2005.04.09     N19W15     plage
Total spot count: 12 5
SSN: 42 25

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2004.02 107.0 45.8 49.3 (-2.7)
2004.03 112.0 49.1 47.1 (-2.2)
2004.04 101.2 39.3 45.5 (-1.6)
2004.05 99.8 41.5 43.8 (-1.7)
2004.06 97.4 43.2 41.6 (-2.2)
2004.07 119.1 51.1 40.2 (-1.4)
2004.08 109.6 40.9 39.2 (-1.0)
2004.09 103.1 27.7 37.5 (-1.7)
2004.10 105.9 48.0 (35.6 predicted, -1.9)
2004.11 113.2 43.5 (33.9 predicted, -1.7)
2004.12 94.5 17.9 (31.6 predicted, -2.3)
2005.01 102.2 31.3 (28.9 predicted, -2.7)
2005.02 97.2 29.1 (26.5 predicted, -2.4)
2005.03 89.9 24.8 (24.7 predicted, -1.8)
2005.04 85.3 (1) 14.8 (2) (22.9 predicted, -1.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
