Solar Terrestrial Activity Report

Last major update issued on May 22, 2005 at 04:40 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update May 6, 2005)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update May 6, 2005)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update May 6, 2005)]
[Historical solar and geomagnetic data charts 1954-2004 (last update February 1, 2005)]
[Archived reports (last update May 15, 2005)]

Recent activity

The geomagnetic field was unsettled to active on May 21. Solar wind speed ranged between 362 and 458 km/sec.

Solar flux measured at 20h UTC on 2.8 GHz was 81.9. The planetary A index was 21 (STAR Ap - based on the mean of three hour interval ap indices: 20.9).
Three hour interval K indices: 34443333 (planetary), 24443333 (Boulder).

The background x-ray flux is at the class A8 level.

At midnight there were 3 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10765 decayed slowly and quietly.
New region 10766 rotated into view at the northeast limb.
New region 10767 rotated into view at the southeast limb.

Coronal mass ejections (CMEs)

May 19-21: No obviously fully or partly potentially geoeffective CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in Earth facing positions.

Processed SOHO/EIT 284 image at 19:06 UTC on May 21. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on May 22 and quiet to unsettled on May 23-26.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along long distance north-south paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Cristal del Uruguay and Radio Rafaela (Argentina). From North America the only stations noted, WWZN on 1510 and WWRU on 1660 kHz, both had fair signals. Other frequencies had mostly stations from Argentina and Brazil.

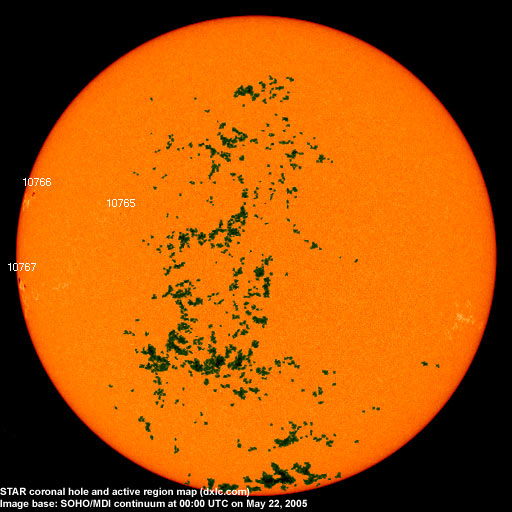

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10763 2005.05.12     S16W61     plage
10765 2005.05.19 1 1 N08E36 0010 AXX
10766 2005.05.21 5 4 N15E75 0060 HAX classification was CAO at midnight, area 0050, location: N13E74
10767 2005.05.21 1 3 S07E80 0060 HAX classification was DAO at midnight, area 0090, location: S07E77
S548 2005.05.17     S13W40     plage
S549 2005.05.18     S12W47     plage
Total spot count: 7 8
SSN: 37 38

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2004.03 112.0 49.1 47.1 (-2.2)
2004.04 101.2 39.3 45.5 (-1.6)
2004.05 99.8 41.5 43.8 (-1.7)
2004.06 97.4 43.2 41.6 (-2.2)
2004.07 119.1 51.1 40.2 (-1.4)
2004.08 109.6 40.9 39.2 (-1.0)
2004.09 103.1 27.7 37.5 (-1.7)
2004.10 105.9 48.0 35.9 (-1.6)
2004.11 113.2 43.5 (34.8 predicted, -1.1)
2004.12 94.5 17.9 (33.4 predicted, -1.4)
2005.01 102.2 31.3 (30.9 predicted, -2.5)
2005.02 97.2 29.1 (28.3 predicted, -2.6)
2005.03 89.9 24.8 (26.5 predicted, -1.8)
2005.04 86.0 24.4 (24.6 predicted, -1.9)
2005.05 103.9 (1) 47.1 (2) (22.0 predicted, -2.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
