Last major update issued on November 13, 2006 at 05:25 UTC.
[Solar and
geomagnetic data - last month (updated daily)]
[Solar wind and
electron fluence charts (updated daily)]
[Solar cycles 21-23
(last update November 12, 2006)]
[Solar cycles 1-20]
[Graphical comparison
of cycles 21, 22 and 23 (last update November 12, 2006)]
[Graphical
comparison of cycles 2, 10, 13, 17, 20 and 23 (last update November 12, 2006)]
[Historical solar and
geomagnetic data charts 1954-2005 (last update March 3, 2006)]
[Archived reports (last update
November 12, 2006)]
The geomagnetic field was quiet to unsettled on November 12. Solar wind speed ranged between 454 and 569 km/s (all day average 513 km/s - decreasing 65 km/s from the previous day).
Solar flux measured at 20h UTC on 2.8 GHz was 96.7. The planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.9). Three hour interval K indices: 23222211 (planetary), 23332211 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was low. A total of 4 C class events were recorded during the day.
Region 10923 decayed slightly with the huge penumbra becoming more symmetrical and the loss of several small spots in the southeastern section of the region. Further C class flares are possible and there is a small chance of a minor M class flare. Flares: C1.0 at 07:38, C1.0 at 09:46, C1.1 at 10:47 and C3.3 at 21:55 UTC.
Spotted regions not numbered by NOAA/SEC:
[S681] This region rotated into view at the southeast limb on
November 12. Location at midnight: S05E75
November 10-12: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No obvious coronal holes are currently in or near an Earth facing position.
Processed SOHO/EIT 284 image at 19:06 UTC on November 11. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be mostly quiet on November 13-16.
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
Monitoring remarks from a location near N58E06: Propagation to North America improved further with quite a few stations noted, particularly from the Canadian Atlantic provinces and the southeastern part of the USA.
\
Compare to the previous day's image.

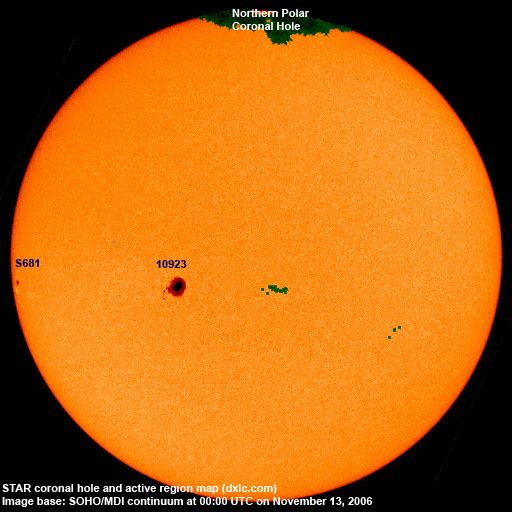

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
---|---|---|---|---|---|---|---|
10923 | 2006.11.08 | 8 | 9 | S04E22 | 0610 | DKI | |
S681 | 2006.11.12 | 1 | S05E75 | 0040 | HSX | ||
Total spot count: | 8 | 10 | |||||
SSN: | 18 | 30 |
Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
---|---|---|---|
2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
2000.07 | 202.3 | 170.1 | 119.8 |
2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
2005.08 | 90.5 | 36.4 | 27.4 (-1.7) |
2005.09 | 91.1 | 21.9 | 25.8 (-1.6) |
2005.10 | 77.0 | 8.7 | 25.5 (-0.3) |
2005.11 | 86.3 | 18.0 | 24.9 (-0.6) |
2005.12 | 90.7 | 41.1 | 23.0 (-1.9) |
2006.01 | 83.4 | 15.3 | 20.8 (-2.2) |
2006.02 | 76.5 | 4.9 | 18.6 (-2.2) |
2006.03 | 75.4 | 10.6 | 17.3 (-1.3) |
2006.04 | 89.0 | 30.2 | 17.1 (-0.2) |
2006.05 | 80.9 | 22.2 | (16.8 predicted, -0.3) |
2006.06 | 76.5 | 13.9 | (15.1 predicted, -1.7) |
2006.07 | 75.7 | 12.2 | (13.2 predicted, -1.9) |
2006.08 | 79.0 | 12.9 | (12.7 predicted, -0.5) |
2006.09 | 77.8 | 14.5 | (12.6 predicted, -0.1) |
2006.10 | 74.3 | 10.4 | (11.5 predicted, -1.1) |
2006.11 | 88.6 (1) | 14.8 (2) | (10.1 predicted, -1.4) |
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC)
sunspot number. The official international sunspot number is typically
30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
