The geomagnetic field was quiet to minor storm on November 23. Solar wind speed ranged between 330 and 557 km/s (all day average 422 km/s - increasing 89 km/s over the previous day) under the influence of a high speed stream from CH248.
Solar flux measured at 20h UTC on 2.8 GHz was 76.8. The planetary A index was 18 (STAR Ap - based on the mean of three hour interval ap indices: 18.0). Three hour interval K indices: 11454333 (planetary), 02453322 (Boulder).
The background x-ray flux is at the class A3 level.
At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Spotted regions not numbered by NOAA/SEC:

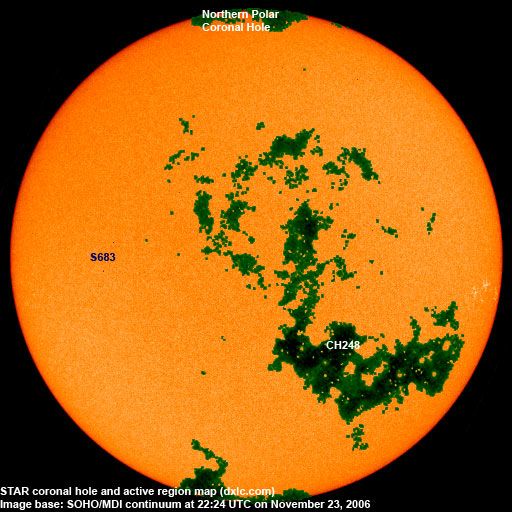

[S683] A new region emerged in the southeast quadrant on November 23. Location at midnight: S02E37.
November 21-23: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent coronal hole, CH248, in the southern hemisphere was in an Earth facing position on November 19-23. Only the northernmost extensions, including a trans equatorial extension in the easternmost part of the coronal hole, were within potentially geoeffective positions.
Processed SOHO/EIT 284 image at 19:06 UTC on November 23. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to active on November 24-26 due to effects from CH248, occasional minor storm intervals are possible.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is poor to fair.
Monitoring remarks from a location near N58E06: At 02:45 UTC propagation to North America was poor although most of the common Newfoundland stations could be heard with fair to good signals. At 03:30 UTC propagation was very poor as the current disturbance had intensified.

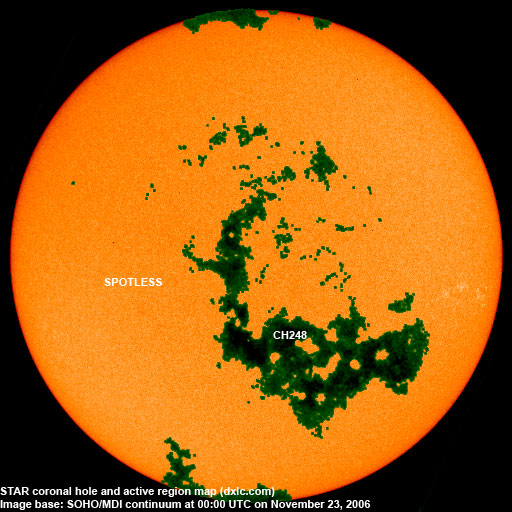

Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|Total spot count:||0||1|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2006.05||80.9||22.2||(16.8 predicted, -0.3)|
|2006.06||76.5||13.9||(15.1 predicted, -1.7)|
|2006.07||75.7||12.2||(13.2 predicted, -1.9)|
|2006.08||79.0||12.9||(12.7 predicted, -0.5)|
|2006.09||77.8||14.5||(12.6 predicted, -0.1)|
|2006.10||74.3||10.4||(11.5 predicted, -1.1)|
|2006.11||87.7 (1)||25.5 (2)||(10.1 predicted, -1.4)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
