Last major update issued on December 1, 2006 at 05:30 UTC.
geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update November 12, 2006)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update November 12, 2006)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update November 12, 2006)]
[Historical solar and geomagnetic data charts 1954-2005 (last update March 3, 2006)]
[Archived reports (last update November 12, 2006)]
The geomagnetic field was quiet to minor storm on November 30. Solar wind speed ranged between 353 and 410 km/s (all day average 383 km/s - decreasing 19 km/s from the previous day).
Solar flux measured at 20h UTC on 2.8 GHz was 84.1. The planetary A index was 28 (STAR Ap - based on the mean of three hour interval ap indices: 27.9). Three hour interval K indices: 24555521 (planetary), 24464421 (Boulder).
The background x-ray flux is at the class A2 level.
At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10926 decayed slightly and was quiet.
Region 10927 developed slowly and was quiet.
November 28-30: No obvious partly or fully Earth directed CMEs were detected in very incomplete LASCO imagery.

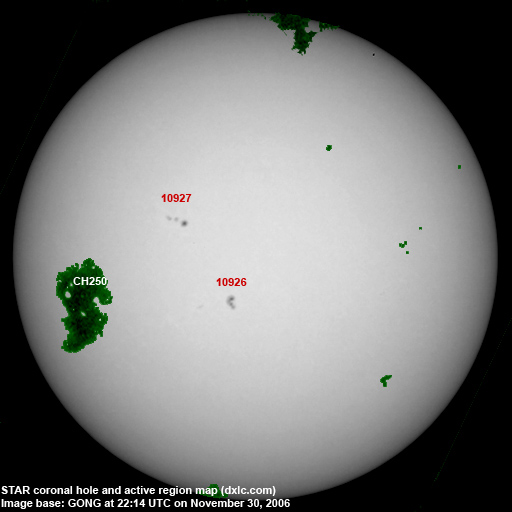

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent coronal hole (CH250) in the southern hemisphere will likely rotate into an Earth facing position on December 3-4.
Processed SOHO/EIT 284 image at 19:06 UTC on November 24. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet on December 1-5. A high speed stream from CH250 could cause a disturbance on December 7-8 with unsettled to major storm conditions.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
Monitoring remarks from a location near N58E06: The most common east coast North American stations were audible at night with the best signal from 1510 WWZN (fair).
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|10926||2006.11.24||12||10||S10E09||0200||EAO||classification was CAO at midnight|
|10927||2006.11.27||14||13||N10E19||0120||CAI||classification was DAI at midnight|
|10928||2006.11.30||3||S07W32||0020||CSO||formerly region S685|
|Total spot count:||29||23|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2006.05||80.9||22.2||(16.8 predicted, -0.3)|
|2006.06||76.5||13.9||(15.1 predicted, -1.7)|
|2006.07||75.7||12.2||(13.2 predicted, -1.9)|
|2006.08||79.0||12.9||(12.7 predicted, -0.5)|
|2006.09||77.8||14.5||(12.6 predicted, -0.1)|
|2006.10||74.3||10.4||(11.5 predicted, -1.1)|
|2006.11||86.3 (1)||31.5 (2)||(10.1 predicted, -1.4)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
