The geomagnetic field was quiet on January 9. Solar wind speed ranged between 295 and 395 km/s (all day average 340 km/s - decreasing 7 km/s compared to the previous day) under the influence of a weak, low speed coronal hole stream after 06h UTC.
Solar flux measured at 20h UTC on 2.8 GHz was 92.2. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.4). Three hour interval K indices: 10112221 (planetary), 11221211 (Boulder).
The background x-ray flux is at the class A5 level.
At midnight there were 3 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10933 was relatively quiet despite some polarity intermixing in
the leading spots in the northwestern part of the region.
Region 10935 was quiet and stable.
Region 10937 was quiet and stable.
January 7-9: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.
Coronal hole
history (since late October 2002)
Compare today's report to the situation one solar rotation ago:
28
days ago
27
days ago
26
days ago
A recurrent coronal hole (CH255) in the southern hemisphere will likely rotate into an Earth facing position on January 12-14.
Processed SOHO/EIT 195 image at 23:24 UTC on January 9. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on January 10 and quiet on January 11-14. A high speed stream from CH255 will likely cause unsettled to minor storm conditions on January 15-17.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96
hours.
3) There is a possibility of either M or X class flares within the next
48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Monitoring has been temporarily suspended (as of January 1, 2007).
Compare to the previous day's image.

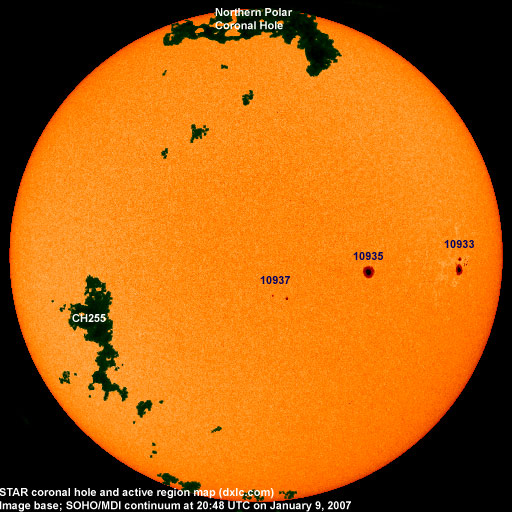

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
| Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
|---|---|---|---|---|---|---|---|
| 10933 | 2006.12.30 | 5 | 12 | S06W56 | 0310 | DHI | classification was DAI at midnight, area 0250 |
| 10934 | 2006.12.31 | N04W54 | plage | ||||
| 10935 | 2007.01.03 | 1 | 1 | S08W28 | 0250 | HHX | |
| 10936 | 2007.01.06 | N10E02 | plage | ||||
| 10937 | 2007.01.08 | 5 | 6 | S12W06 | 0020 | BXO | classification was DSO at midnight, area 0030 |
| Total spot count: | 11 | 19 | |||||
| SSN: | 41 | 49 | |||||
| Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
|---|---|---|---|
| 2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
| 2000.07 | 202.3 | 170.1 | 119.8 |
| 2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
| 2005.11 | 86.3 | 18.0 | 24.9 (-0.6) |
| 2005.12 | 90.7 | 41.1 | 23.0 (-1.9) |
| 2006.01 | 83.4 | 15.3 | 20.8 (-2.2) |
| 2006.02 | 76.5 | 4.9 | 18.6 (-2.2) |
| 2006.03 | 75.4 | 10.6 | 17.3 (-1.3) |
| 2006.04 | 89.0 | 30.2 | 17.1 (-0.2) |
| 2006.05 | 80.9 | 22.2 | 17.3 (+0.2) |
| 2006.06 | 76.5 | 13.9 | 16.3 (-1.0) |
| 2006.07 | 75.7 | 12.2 | (15.0 predicted, -1.3) |
| 2006.08 | 79.0 | 12.9 | (14.9 predicted, -0.1) |
| 2006.09 | 77.8 | 14.5 | (14.7 predicted, -0.2) |
| 2006.10 | 74.3 | 10.4 | (13.5 predicted, -1.2) |
| 2006.11 | 86.3 | 21.5 | (12.1 predicted, -1.4) |
| 2006.12 | 84.5 | 13.6 | (11.7 predicted, -0.4) |
| 2007.01 | 87.9 (1) | 11.6 (2) | (11.9 predicted, +0.2) |
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC)
sunspot number. The official international sunspot number is typically
30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
