Solar Terrestrial Activity Report

Last major update issued on October 17, 2007 at 14:40 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-23 (last update October 4, 2007)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update October 4, 2007)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update October 4, 2007)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports (last update October 3, 2007)]

Recent activity

The geomagnetic field was very quiet on October 16. Solar wind speed ranged between 276 and 325 km/s (average speed was 303 km/s, increasing 10 km/s over the previous day) .

Solar flux measured at 20h UTC on 2.8 GHz was 67.1. The planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.0). Three hour interval K indices: 00011101 (planetary), 10112100 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight the visible solar disk was spotless. The solar flare activity level was very low. No C class events were recorded during the day.

Coronal mass ejections (CMEs)

October 14-16: No obvious fully or partly Earth directed CMEs were observed in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial hole (CH295) will rotate into an Earth facing position on October 15-18. CH295 has become less well defined over the last solar rotation and has significantly decreased its areal coverage. A recurrent coronal hole (CH296) is currently rotating into view at the southeast limb.

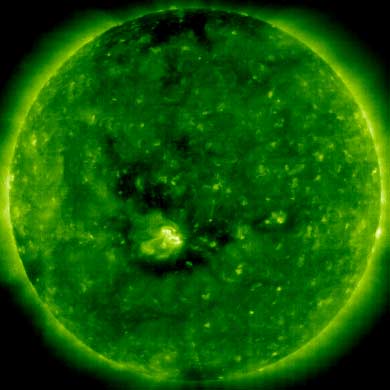

Processed SOHO/EIT 195 image at 21:36 UTC on October 16. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Monitoring remarks from a location near N58E06: October 16-17: Puerto Rico was noted on 1480 and 1520 kHz as early as 21:40 UTC. Signals from the east coast of North America were not as abundant as they've been recently and certainly weaker. The best Trans Atlantic propagation sector was 255-280 degrees.

Forecast

The geomagnetic field is expected to be mostly quiet October 17. Quiet to unsettled conditions are likely on October 18-19 becoming quiet to active on October 20-21 due to a high speed stream from CH295. Quiet is expected for October 22-23, while October 24 or 25 to October 26 could see unsettled to minor storm conditions due to effects from CH296.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

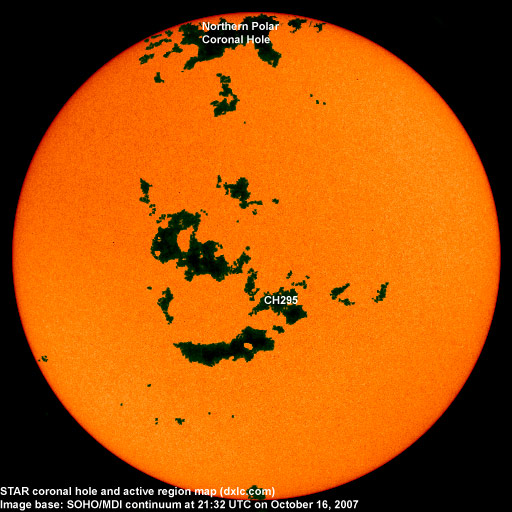

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment

Total spot count: 0 0
SSN: 0 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2006.08 79.0 12.9 15.6 (+0.3)
2006.09 77.8 14.4 15.6 (+0.0)
2006.10 74.3 10.4 14.2 (-1.4)
2006.11 86.3 21.5 12.7 (-1.5)
2006.12 84.5 13.6 12.1 (-0.6)
2007.01 83.3 16.9 12.0 (-0.1)
2007.02 77.7 10.6 11.6 (-0.4)
2007.03 72.2 4.8 10.8 (-0.8)
2007.04 72.4 3.7 (10.1 predicted, -0.7)
2007.05 74.4 11.7 (9.0 predicted, -1.1)
2007.06 73.7 12.0 (8.0 predicted, -1.0)
2007.07 71.6 10.0 (7.3 predicted, -0.7)
2007.08 69.1 6.2 (6.8 predicted, -0.5)
2007.09 67.1 2.4 (6.9 predicted, +0.1)
2007.10 67.8 (1) 1.3 (2) (7.6 predicted, +0.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
