Recent activity

The geomagnetic field was very quiet on December 11. Solar wind speed ranged between 284 and 354 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 86.9 (up 0.5 over the last solar rotation). The planetary A index  was 1 (STAR Ap - based on the mean of three hour interval ap indices: 0.9). Three hour interval K indices: 00000001 (planetary), 01001001 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 2 spotted regions.

Region 11131 was quiet and lost the trailing spots.
Region 11133 was quiet and stable.

A new region emerged in the northeast quadrant at about 01h UTC on December 12. Two spots were visible at 05h and the location was then N11E14.
Another region is rotating into view at the northeast limb and appears to have a tiny spot.

Coronal mass ejections (CMEs)

December 9-11: No obviously Earth directed CMEs were observed in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH429) was in an Earth facing position on December 7-9. An elongated, curved, trans equatorial coronal hole (CH430) will likely rotate into an Earth facing position on December 12-15.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on December 12-18 due to effects from CH429 and CH430. Occasional active intervals are possible.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

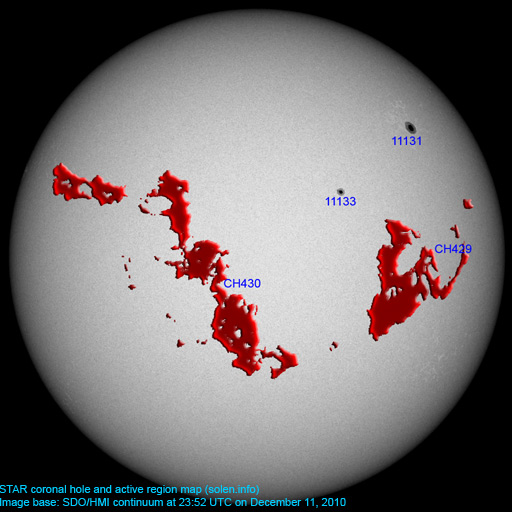

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11131 2010.12.02 2 1 N31W47 0300 CHO HHX
11133 2010.12.04 3 2 N15W22 0110 CSO HSX
S846 2010.12.08     N41W22           plage
S847 2010.12.09     S17W22           plage
Total spot count: 5 3
Sunspot number: 25 23

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 (16.9 predicted, +1.4) 8.17 / 6.85
2010.07 79.8 16.1 (18.4 predicted, +1.5) 6.31 / 5.15
2010.08 79.2 19.6 (19.6 predicted, +1.2) 8.49 / 7.77
2010.09 81.1 25.2 (20.8 predicted, +1.2) 5.33 / 5.45
2010.10 81.6 23.5 (23.2 predicted, +2.4) 6.07 / 6.27
2010.11 82.5 21.6 (26.1 predicted, +2.9) 4.80
2010.12 87.3 (1) 11.3 (2A) / 31.8 (2B) (28.6 predicted, +2.5) (1.70)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
