Last major update issued on October 23, 2010 at 04:00 UTC.
[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update October 2, 2010)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update October 2, 2010)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update October 2, 2010)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports from January 2003 (last update October 9, 2010)]
NEW [POES auroral activity level charts since October 2009]
The geomagnetic field was quiet to unsettled on October 22. Solar wind speed ranged between 345 and 532 km/s, increasingly under the influence of a high speed stream from CH426.
Solar flux measured at 20h UTC on 2.8 GHz was 81.4 (down 1.5 over the last solar rotation). The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.1). Three hour interval K indices: 01211223 (planetary), 11311234 (Boulder).
The background x-ray flux is at the class A6 level.
At midnight UTC the visible solar disk had 3 spotted regions.
Region 11113 was quiet and decayed slowly.
Region 11115 was quiet and stable.
Region 11117 added many new spots. There's some uncertainty as to whether the southeastern spots belong to a new region or is part of region 11117.
October 20-22: No obviously Earth directed CMEs were seen in LASCO or STEREO images.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent, trans equatorial coronal hole (CH426) has grown significantly over the last solar rotation and was Earth facing October 20-22.
Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to active conditions on October 23-25 due to effects from CH426, occasional minor storm intervals are possible.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Compare to the previous day's image

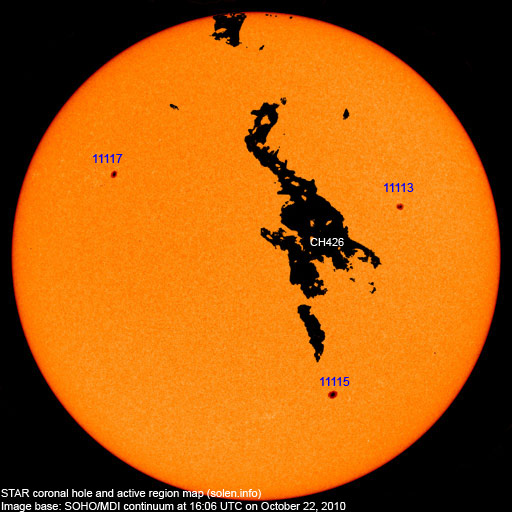

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered||Spot count||Location at midnight||Area||Classification||SDO (NASA) / AIA 4500
|Total spot count:||4||22|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
cycle 23 sunspot max.
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.07||68.2||3.2||3.6 (+0.9)||5.49 / 4.55|
|2009.08||67.3||0.0||4.8 (+1.2)||5.70 / 4.89|
|2009.09||70.5||4.3||6.2 (+1.4)||3.88 / 3.61|
|2009.10||72.6||4.8||7.1 (+0.9)||3.66 / 3.56|
|2009.11||73.6||4.1||7.6 (+0.5)||2.45 / 2.63|
|2009.12||76.7||10.8||8.3 (+0.7)||1.41 / 1.92|
|2010.01||81.1||13.2||9.3 (+1.0)||2.93 / 3.07|
|2010.02||84.7||18.8||10.6 (+1.3)||4.15 / 4.61|
|2010.03||83.4||15.4||12.3 (+1.7)||4.58 / 4.65|
|2010.04||75.9||8.0||(13.9 predicted, +1.6)||10.22 / 10.24|
|2010.05||73.8||8.7||(15.2 predicted, +1.3)||9.18 / 8.15|
|2010.06||72.5||13.6||(16.7 predicted, +1.5)||8.17 / 6.85|
|2010.07||79.8||16.1||(18.3 predicted, +1.6)||6.31 / 5.15|
|2010.08||79.2||19.6||(19.5 predicted, +1.2)||8.49 / 7.77|
|2010.09||81.1||25.2||(20.7 predicted, +1.2)||5.33|
|2010.10||80.3 (1)||21.8 (2A) / 30.7 (2B)||(23.1 predicted, +2.4)||(5.53)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
