Annotated geomagnetic activity charts - Carrington rotation 2104 [Nov-Dec.2010]- 2105 [Dec-Jan.2011] NEW
The geomagnetic field was quiet on February 23. Solar wind speed ranged between 301 and 353 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 89.3 (increasing 8.8 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.0). Three hour interval K indices: 00001222 (planetary), 00102310 (Boulder).
The background x-ray flux is at the class B2 level.
At midnight UTC the visible solar disk had 3 spotted regions.
Region 11160 (SWPC duplicate number is 11161) decayed slowly and was
mostly quiet. Flare: C1.2 at 12:23 UTC.
Region 11162 decayed slowly and quietly.
Spotted regions not numbered by NOAA/SWPC:
[S885] This region emerged with a single spot on February 22. Location at midnight: S16E07
Early on February 24 an active region with spots is rotating into view near N15E85.
February 21-23: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A small coronal hole (CH436) in the northern hemisphere was in an Earth facing location on February 23. A recurrent northern hemisphere coronal hole (CH437) will probably rotate into an Earth facing position on February 25-27. CH437 appears to have become smaller over the last rotation.
The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 24. Quiet to unsettled conditions are likely on February 25-27 due to weak coronal hole effects.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the
color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

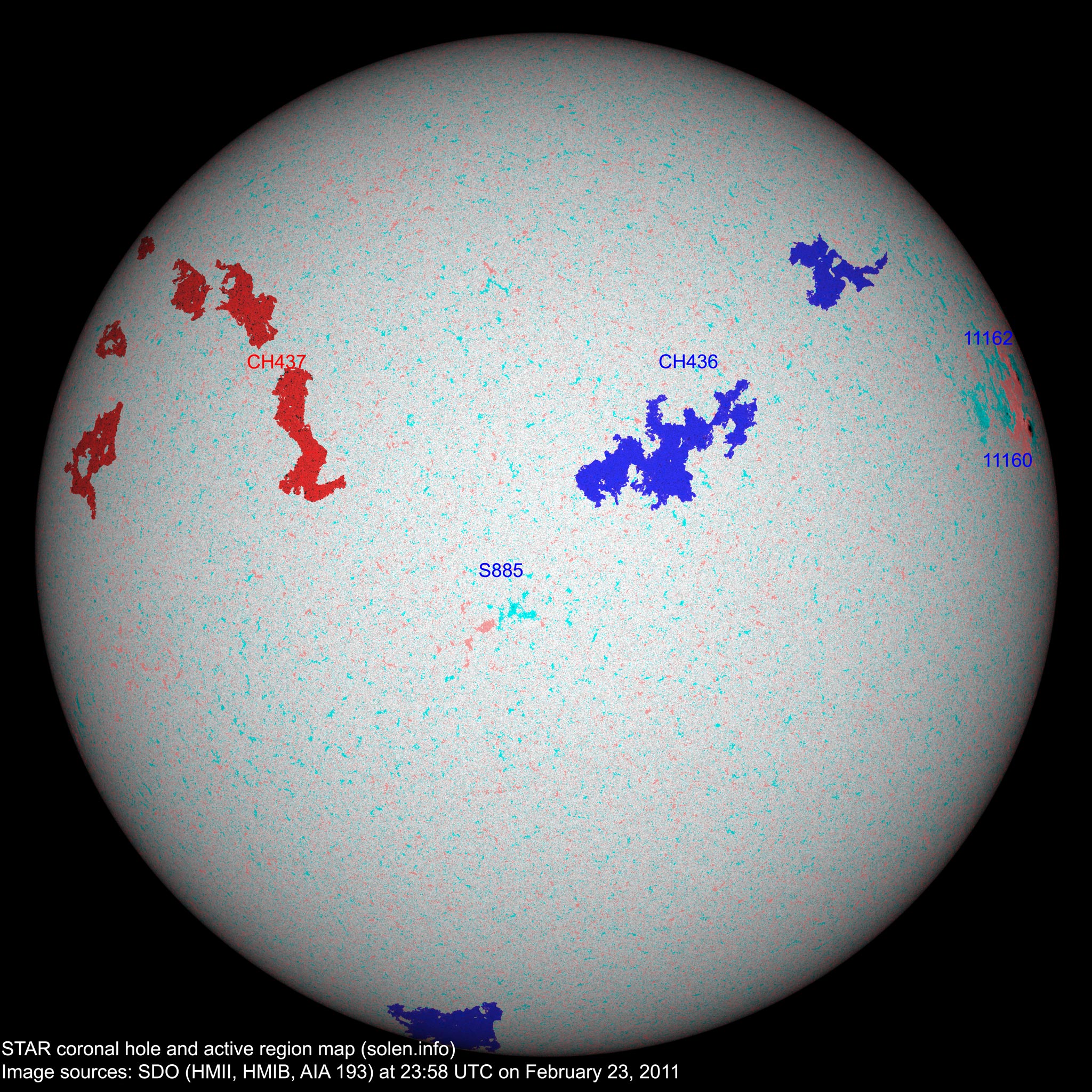

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with polarity overlay
|Total spot count:||7||11|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2009.11||73.6||4.1||7.6 (+0.5)||2.45 / 2.63|
|2009.12||76.7||10.8||8.3 (+0.7)||1.41 / 1.92|
|2010.01||81.1||13.2||9.3 (+1.0)||2.93 / 3.07|
|2010.02||84.7||18.8||10.6 (+1.3)||4.15 / 4.61|
|2010.03||83.4||15.4||12.3 (+1.7)||4.58 / 4.65|
|2010.04||75.9||8.0||14.0 (+1.7)||10.22 / 10.24|
|2010.05||73.8||8.7||15.5 (+1.5)||9.18 / 8.15|
|2010.06||72.5||13.6||16.4 (+0.9)||8.17 / 6.85|
|2010.07||79.8||16.1||16.8 (+0.4)||6.31 / 5.15|
|2010.08||79.2||19.6||(17.1 predicted, +0.3)||8.49 / 7.77|
|2010.09||81.1||25.2||(17.7 predicted, +0.6)||5.33 / 5.45|
|2010.10||81.6||23.5||(19.0 predicted, +1.3)||6.07 / 6.27|
|2010.11||82.5||21.6||(20.7 predicted, +1.7)||4.80 / 5.50|
|2010.12||84.2||14.5||(22.2 predicted, +1.5)||3.41 / 4.35|
|2011.01||83.6||19.1||(23.8 predicted, +1.6)||4.32|
|2011.02||95.4 (1)||45.9 (2A) / 55.9 (2B)||(25.5 predicted, +1.7)||(6.01)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
