The geomagnetic field was quiet on May 12. Solar wind speed ranged between 289 and 354 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 92.8 (decreasing 36.6 over the last solar rotation). The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.1). Three hour interval K indices: 10101102 (planetary), 10111211 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight UTC the visible solar disk had 6 spotted regions.
Region 11208 decayed slowly and was quiet.
Region 11210 was quiet and stable.
Spotted regions not numbered by NOAA/SWPC:
[S1000] emerged in the southwest quadrant on May 11. Location at midnight:
S19W57
[S1001] emerged near the central meridian in the southern hemisphere on
May 12. Location at midnight: S23W03
[S1002] emerged in the southeast quadrant on May 12. Location at midnight:
S21E13
[S1003] emerged at a high latitude near the central meridian in the
southern hemisphere on May 12. Location at midnight: S43W05
A C2.0/1F flare at 12:36 UTC had its source in the same spotless region (in the northeast quadrant) which was the origin of the C5 event on May 9.
May 9: A large, wide and fast partial halo CME was observed following
a long duration C5.4 event at the northeast limb in the evening. There's a
slight chance of a flank impact from this CME on May 13.
May 10 and 12: No obviously Earth directed CMEs were observed in LASCO
and STEREO imagery.
May 11: A filament eruption to the west of region 11207 early in the
day was associated with a partial halo CME. Weak effects from this CME could
reach Earth on May 14 or 15.
Coronal hole history (since late October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days
ago 26
days ago
A trans equatorial coronal hole (CH448) was in an Earth facing position on May 11-12. An extension (CH449) of the southern polar coronal hole will likely be Earth facing on May 14-15.
The darkest areas on the solar disk are likely coronal holes.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on May 13-14 becoming quiet to active on May 15-16 due to effects from CH448. There's a chance of unsettled intervals on May 13 and 14 due to possible flank CME effects.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

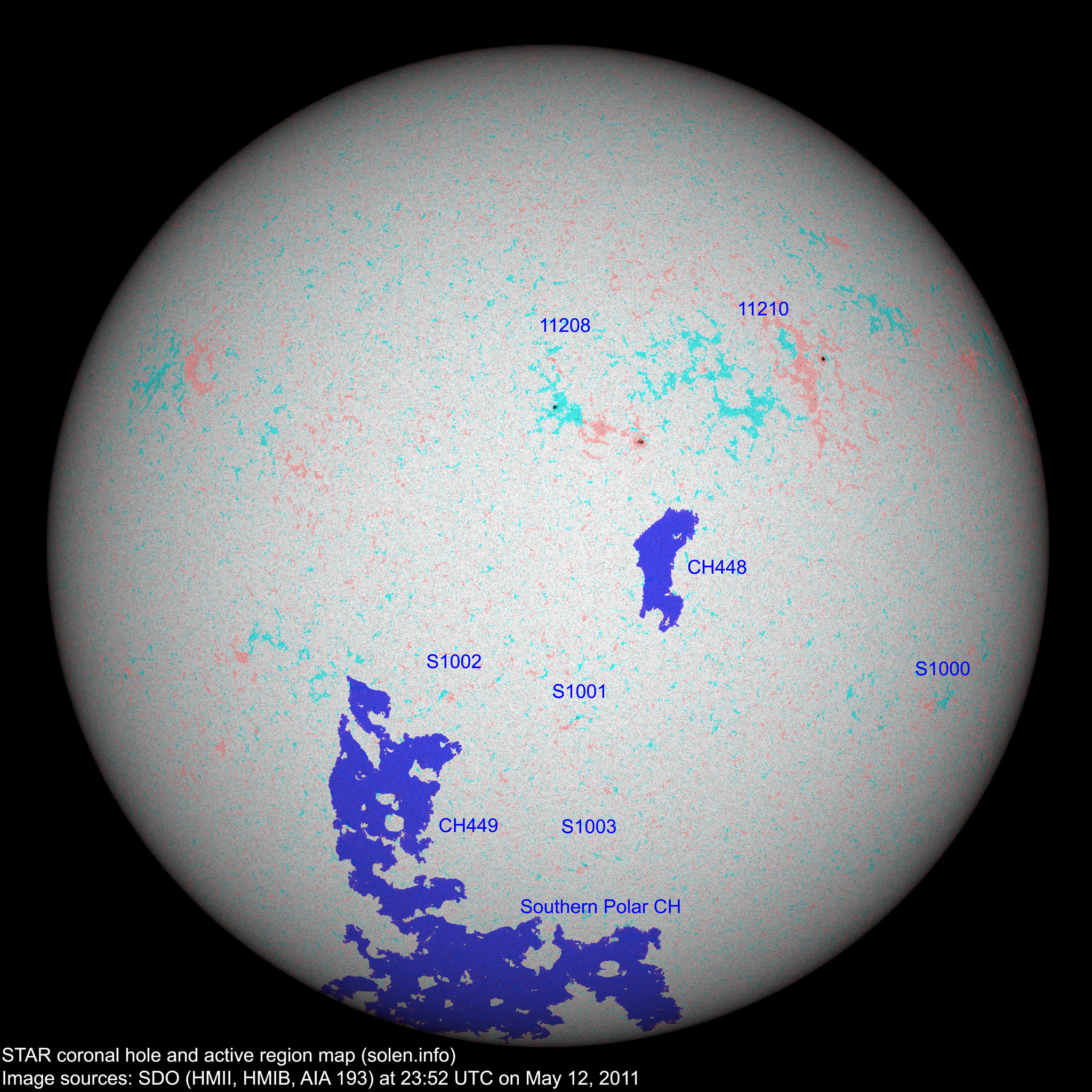

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11207 | 2011.05.03 2011.05.05 |
N21W65 |
 |
plage |
||||||
| 11211 | 2011.05.04 2011.05.09 |
S12W65 | plage | |||||||
| 11210 | 2011.05.05 2011.05.09 |
1 | 16 | N19W34 | 0020 | HRX | CRO |
 |
 |
|
| 11208 | 2011.05.07 2011.05.08 |
8 | 12 | N12W06 | 0050 | ESO | ERO |
 |
 |
|
| 11209 | 2011.05.07 2011.05.08 |
N35W47 | plage | |||||||
| S997 | 2011.05.07 | N12W42 | plage | |||||||
| S998 | 2011.05.08 | N15W09 | plage | |||||||
| 12112 | 2011.05.09 2011.05.11 |
S13E32 | plage | |||||||
| S1000 | 2011.05.11 | 1 | S19W34 | 0000 | AXX |
 |
 |
|||
| S1001 | 2011.05.12 | 2 | S23W03 | 0000 | BXO |
 |
||||
| S1002 | 2011.05.12 | 3 | S21E13 | 0000 | BXO |
 |
reversed polarities | |||
| S1003 | 2011.05.12 | 1 | S43W03 | 0000 | AXX |
 |
||||
| Total spot count: | 9 | 35 | ||||||||
| Sunspot number: | 29 | 95 | ||||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2010.02 | 84.7 | 18.8 | 10.6 (+1.3) | 4.15 / 4.61 |
| 2010.03 | 83.4 | 15.4 | 12.3 (+1.7) | 4.58 / 4.65 |
| 2010.04 | 75.9 | 8.0 | 14.0 (+1.7) | 10.22 / 10.24 |
| 2010.05 | 73.8 | 8.7 | 15.5 (+1.5) | 9.18 / 8.15 |
| 2010.06 | 72.5 | 13.6 | 16.4 (+0.9) | 8.17 / 6.85 |
| 2010.07 | 79.8 | 16.1 | 16.7 (+0.3) | 6.31 / 5.15 |
| 2010.08 | 79.2 | 19.6 | 17.4 (+0.7) | 8.49 / 7.77 |
| 2010.09 | 81.1 | 25.2 | 19.6 (+2.2) | 5.33 / 5.45 |
| 2010.10 | 81.6 | 23.5 | 23.2 (+3.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.5 | (26.9 predicted, +3.7) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.4 | (30.1 predicted, +3.2) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | (33.1 predicted, +3.0) | 4.32 / 5.51 |
| 2011.02 | 94.6 | 29.4 | (35.6 predicted, +2.5) | 5.41 / 6.44 |
| 2011.03 | 115.0 | 56.2 | (37.9 predicted, +2.3) | 7.79 |
| 2011.04 | 112.6 | 54.4 | (40.8 predicted, +2.9) | 9.71 |
| 2011.05 | 102.4 (1) | 26.1 (2A) / 67.3 (2B) | (44.1 predicted, +3.3) | (7.92) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
