Recent activity

The geomagnetic field was quiet to active on May 15. Solar wind speed ranged between 348 and 568 km/s under the influence of a high speed stream from CH448.

Solar flux measured at 20h UTC on 2.8 GHz was 94.5 (decreasing 16.5 over the last solar rotation). The planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.3). Three hour interval K indices: 21123433 (planetary), 21223433 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 10 spotted regions.

Region 11208 developed slowly and could produce further C class flaring. Flares: C1.3 at 14:25 and C4.8 at 23:34 UTC
Region 11210 was quiet and stable.
Region 11214 developed further and could produce C flares.
Region 11215 decayed slowly and was quiet.

Spotted regions not numbered by NOAA/SWPC:

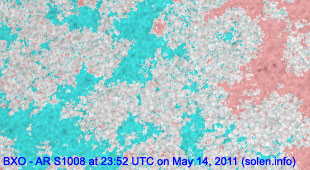

[S1008] emerged with tiny spots in an old plage area in the northeast quadrant on May 14. Location at midnight: N16E13
[S1009] rotated into view at the southeast limb on May 15. Location at midnight: S15E78
[S1010] emerged with a single tiny spot in an old plage area in the southeast quadrant on May 15. Location at midnight: S19E60
[S1011] emerged in the northeast quadrant on May 15. Location at midnight: N08E45
[S1012] emerged in the northwest quadrant on May 15. Location at midnight: N29W08
[S1013] emerged in the southeast quadrant on May 15, just to the east region 11214. Location at midnight: S25E08

Coronal mass ejections (CMEs)

May 13-15: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

An extension (CH449) of the southern polar coronal hole was Earth facing on May 14-15. This extension has weakened significantly over the last couple of days and could be closing.

The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be mostly quiet on May 16 with a chance of unsettled intervals due to effects from CH448. May 17-18 could see quiet to active conditions caused by a high speed stream from CH449.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

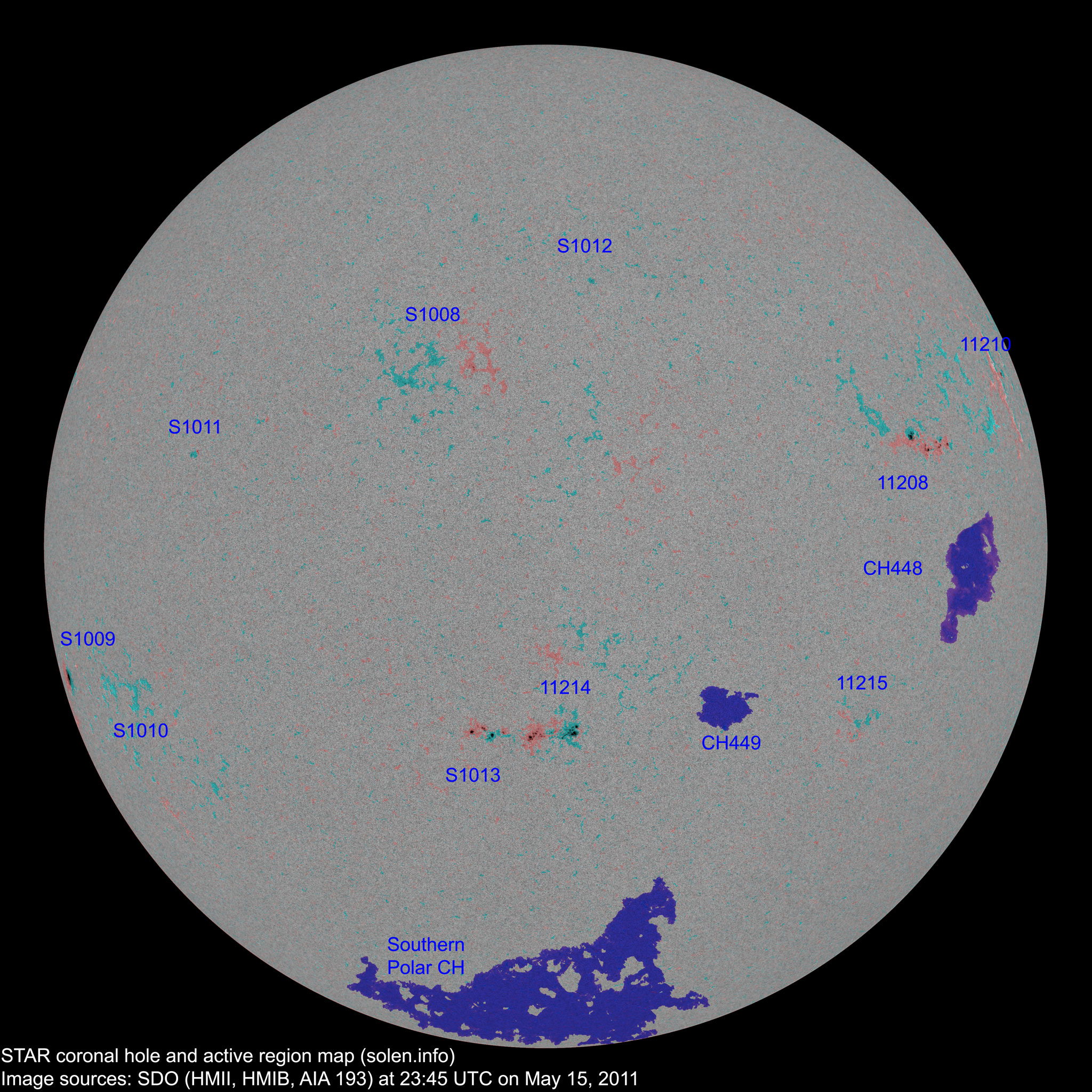

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11210 2011.05.05
2011.05.09
1 1 N18W75 0010 AXX AXX



11208 2011.05.07
2011.05.08
7 17 N11W48 0050 ESO CAI beta-gamma
S998 2011.05.08     N15W48           plage
12112 2011.05.09
2011.05.11
    S13W10           plage

location: S15W00

11215 2011.05.12
2011.05.14
  2 S23W43 0000   BXO
S1002 2011.05.12     S21W26           plage
S1003 2011.05.12     S43W42           plage
S1004 2011.05.13     N06W09         plage
11214 2011.05.13
2011.05.14
16 29 S25E01 0070 DAO CAI location: S25W01
S1006 2011.05.13     S16W19           plage
S1007 2011.05.13     N52W10           plage
S1008 2011.05.14   7 N16E13 0000   BXO
S1009 2011.05.15   1 S15E78 0050   HSX
S1010 2011.05.15   1 S19E60 0000   AXX
S1011 2011.05.15   2 N08E45 0000   BXO
S1012 2011.05.15   2 N29W08 0000   AXX
S1013 2011.05.15   9 S25E08 0040   DRI
Total spot count: 24 71
Sunspot number: 54 171

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 12.3 (+1.7) 4.58 / 4.65
2010.04 75.9 8.0 14.0 (+1.7) 10.22 / 10.24
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 (26.9 predicted, +3.7) 4.80 / 5.50
2010.12 84.2 14.4 (30.1 predicted, +3.2) 3.41 / 4.35
2011.01 83.6 19.1 (33.1 predicted, +3.0) 4.32 / 5.51
2011.02 94.6 29.4 (35.6 predicted, +2.5) 5.41 / 6.44
2011.03 115.0 56.2 (37.9 predicted, +2.3) 7.79
2011.04 112.6 54.4 (40.8 predicted, +2.9) 9.71
2011.05 100.4 (1) 30.8 (2A) / 63.7 (2B) (44.1 predicted, +3.3) (7.60)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
