Recent activity

The geomagnetic field was quiet to minor storm on April 12. Solar wind speed at SOHO ranged between 297 and 626 km/s under the influence of a high speed stream associated with CH512.

Solar flux measured at 20h UTC on 2.8 GHz was 95.3 (decreasing 3.2 over the last solar rotation). The Potsdam WDC planetary A index was 19 (STAR Ap - based on the mean of three hour interval ap indices: 18.9). Three hour interval K indices: 14322354 (planetary), 13322343 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 7 spotted active regions (in 2K resolution SDO images).

Region 11454 [S13E55] was quiet and stable.
Region 11455 [N07W05] developed further and still has polarity intermixing. C flares and minor M class flares are possible.
New region 11456 [S19W17] emerged in the southern hemisphere near the central meridian on April 11 and decayed on April 12 when it was numbered by SWPC.

Spotted active regions not numbered by NOAA/SWPC:
S1577
[S28W13] was quiet and stable.
S1578 [S40W02] was quiet and stable.
New region S1581 [N05E41] emerged with a tiny spot.
New region S1582 [N22E58] emerged in the northeast quadrant and has potential for further development.

Coronal mass ejections (CMEs)

April 10-12: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH512) was in an Earth facing position on April 8-10. A small and poorly defined coronal hole (CH513) in the southern hemisphere could rotate into an Earth facing position on April 12-13.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to very poor. Propagation on long distance northeast-southwest paths is fair to good.

Forecast

The geomagnetic field is expected to be unsettled to minor storm on April 13 due to effects from CH512, isolated major storm intervals are possible and quiet to active on April 14. Quiet to unsettled is possible on April 15-16 due to weak effects from CH513.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

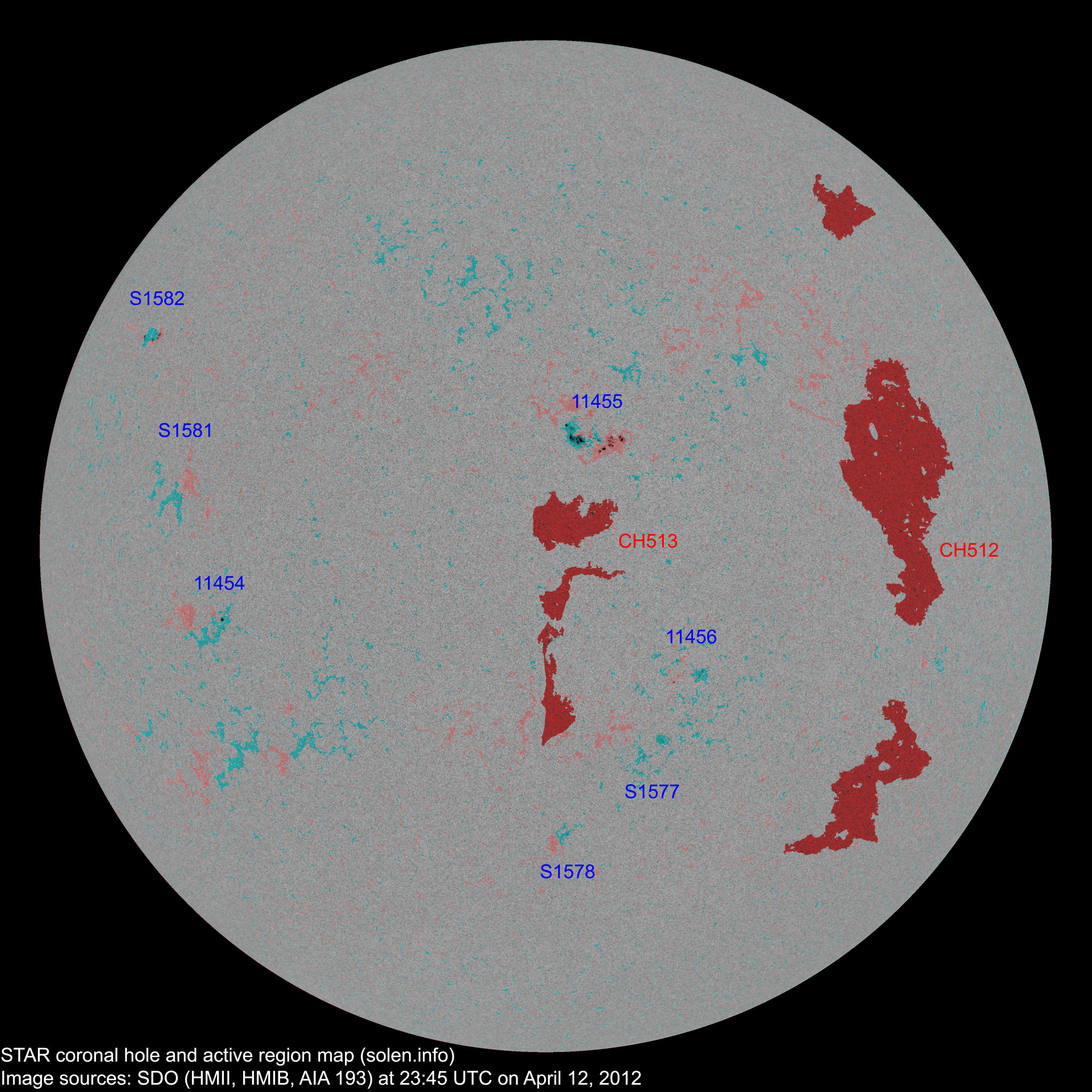

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
S1570 2012.04.07       N10E01           plage
S1571 2012.04.08       N15W25           plage
S1573 2012.04.09       N25W26         plage
11454 2012.04.09
2012.04.10
3 2 1 S12E43 0020 CRO HRX location: S13E41
S1575 2012.04.10       S28E33           plage
11455 2012.04.10
2012.04.11
13 24 14 N06W05 0070 DAI DAI area: 0130
S1577 2012.04.10   3 1 S28W13 0000   AXX
S1578 2012.04.10   3 1 S40W02 0000   BXO
S1579 2012.04.10       S16W54         plage
11456 2012.04.11
2012.04.12
4 4 3 S20W19 0010 BXO BXO location: S19W17
S1581 2012.04.12   1   N05E46 0000   AXX
S1582 2012.04.12   5 3 N22E58 0020   DRO
Total spot count: 20 42 23
Sunspot number: 50 112 83  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 28 53 34  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 30 39 46 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.01 83.6 19.1 31.0 (+2.2) 5.51
2011.02 94.6 29.4 33.4 (+2.4)  6.44
2011.03 115.0 56.2 36.9 (+3.5) 8.18
2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 (60.1 projected, +0.6) 8.28
2011.11 153.5 96.7 (61.6 projected, +1.5) 5.55
2011.12 141.3 73.0 (64.3 projected, +2.7) 3.78
2012.01 132.5 58.3 (67.8 projected, +3.5) 7.15
2012.02 106.5 33.1 (71.8 projected, +4.0) 8.81
2012.03 114.7 64.2 (73.9 projected, +2.1) 16.08
2012.04 98.6 (1) 16.9 (2A) / 42.2 (2B) (74.9 projected, +1.0) (10.43)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
