Recent activity

The geomagnetic field was quiet on April 15. Solar wind speed at SOHO ranged between 428 and 534 km/s under the influence of a high speed coronal hole stream.

Solar flux measured at 20h UTC on 2.8 GHz was 101.7 (decreasing 0.1 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.5). Three hour interval K indices: 22213221 (planetary), 02221221 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11454 [S13E03] was quiet and stable.
Region 11455 [N07W47] decayed slowly and quietly.
Region 11457 [N21E13] decayed slowly and quietly.
Region 11458 [N07E55] was quiet and stable.
Region 11459 [S16E70] was quiet but could produce C and maybe minor M class flares. The region is compact and was close to an EAC classification.

Spotted active regions not numbered by NOAA/SWPC:
S1581
[N04E05] added a few tiny spots.
S1583 [S31E09] was quiet and stable.
S1586 [S25E21] was quiet and stable.
New region S1590 [N16E56] emerged in the northeast quadrant.

Coronal mass ejections (CMEs)

April 13-15: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small and poorly defined trans equatorial coronal hole (CH513) was in an Earth facing position on April 12-13.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be mostly quiet on April 16-18.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

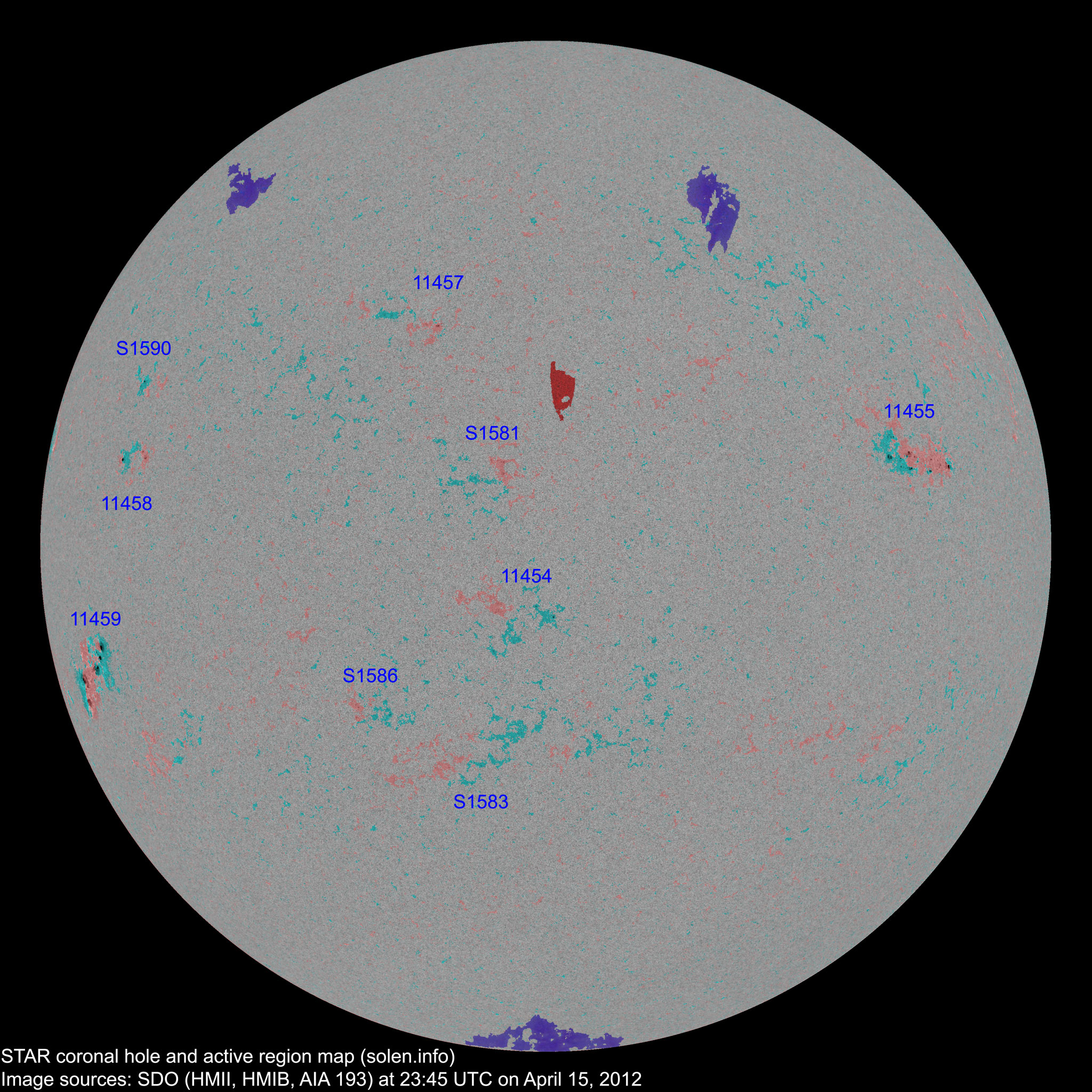

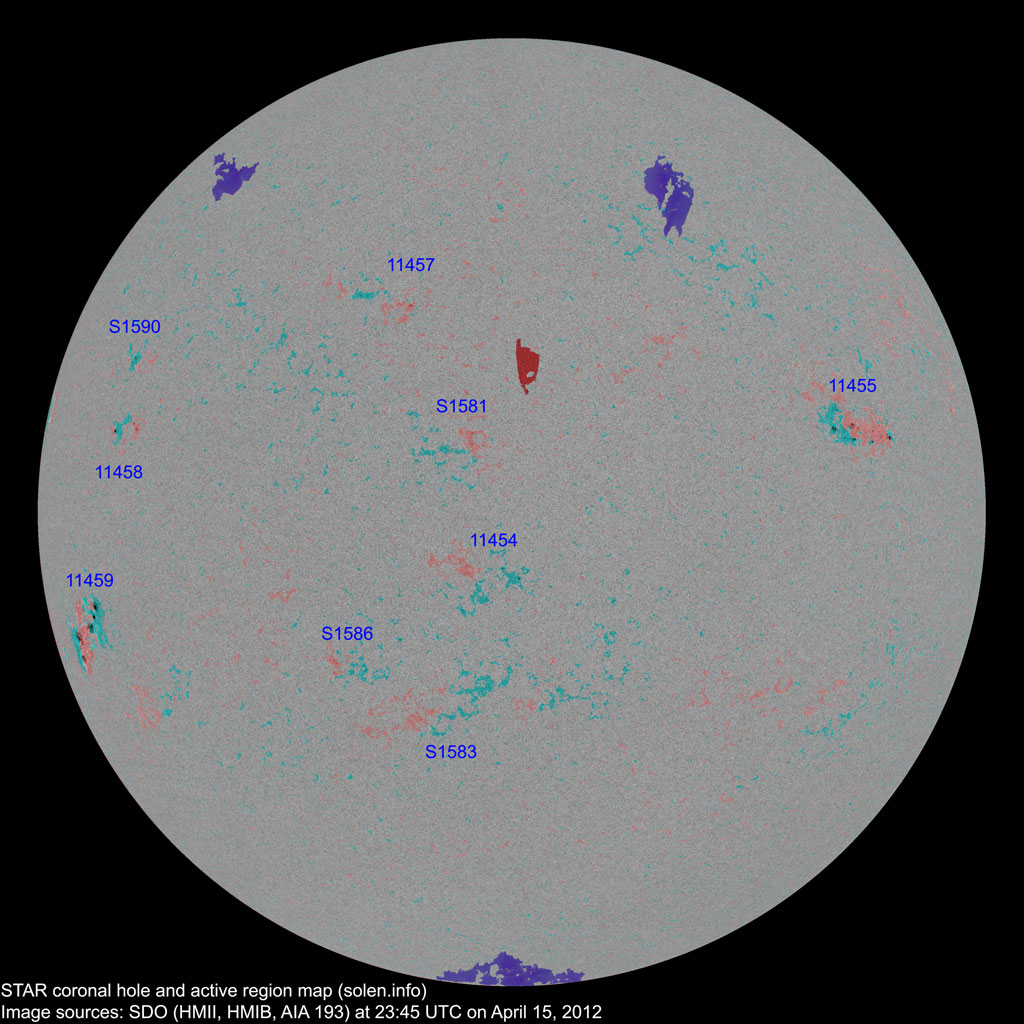

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
S1570 2012.04.07       N10W38           plage
11454 2012.04.09
2012.04.10
1 4 2 S12W00 0000 AXX BXO
S1575 2012.04.10       S27W06         plage
11455 2012.04.10
2012.04.11
19 23 8 N05W46 0170 DSI ERI area: 0040

location: N07W47

S1578 2012.04.10       S40W41           plage
11456 2012.04.11
2012.04.12
      S20W61           plage

location: S19W56

S1581 2012.04.12   4   N04E05 0000   AXX
11457 2012.04.12
2012.04.13
2 2 1 N21E14 0010 AXX AXX
S1583 2012.04.13   2   S31E09 0000   AXX
S1584 2012.04.13       S23W51           plage
S1585 2012.04.13       S21W13           plage
11458 2012.04.14 2 3 3 N06E55 0010 BXO CRO
11459 2012.04.14 3 16 6 S16E64 0080 DAI DAC area: 0250

location: S16E70

S1586 2012.04.14   4 1 S25E21 0000   BXO
S1587 2012.04.14       S25W40         plage
S1589 2012.04.14       N26W30         plage
S1590 2012.04.15   2 1 N16E56 0000   AXX
Total spot count: 27 60 22
Sunspot number: 77 150 92  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 37 71 33  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 46 53 51 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.01 83.6 19.1 31.0 (+2.2) 5.51
2011.02 94.6 29.4 33.4 (+2.4)  6.44
2011.03 115.0 56.2 36.9 (+3.5) 8.18
2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 (60.1 projected, +0.6) 8.28
2011.11 153.5 96.7 (61.6 projected, +1.5) 5.55
2011.12 141.3 73.0 (64.3 projected, +2.7) 3.78
2012.01 132.5 58.3 (67.8 projected, +3.5) 7.15
2012.02 106.5 33.1 (71.8 projected, +4.0) 8.81
2012.03 114.7 64.2 (73.9 projected, +2.1) 16.08
2012.04 98.7 (1) 23.3 (2A) / 46.5 (2B) (74.9 projected, +1.0) (12.26)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
