Recent activity

The geomagnetic field was very quiet on January 19. Solar wind speed ranged between 330 and 377 km/s. A weak disturbance was observed arriving at SOHO near 01h UTC on January 20, possibly related to CH494.

Solar flux measured at 22h UTC on 2.8 GHz was 150.9 (increasing 12.7 over the last solar rotation. The measurements at 18 and 20h UTC at Penticton were both enhanced because of the LDE in region 11402. Even the measurement at 22h UTC was likely enhanced, however, it is the one which is the least influenced by the very long decay phase of the flare). The planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.1). Three hour interval K indices: 11011101 (planetary), 01010211 (Boulder).

The background x-ray flux is at the class B7 level.

At midnight UTC the visible solar disk had 7 spotted regions (in 2K resolution SDO images).

Region 11399 [S23E04] was quiet and stable.
Region 11401 [N17E14] developed a magnetic delta structure as most of the central spots merged into a larger penumbra. M class flares are possible.
Region 11402 [N30E17] still has a large asymmetrical penumbra and could produce further M class flares. Flare: M3.2/2N very long duration event peaking at 16:05 UTC. This event was associated with a fast and wide full halo CME.
Region 11403 [S18W23] decayed slowly and quietly.
Region 11405 [N12E28] was quiet and stable.
Region 11407 [N18E02] developed slowly and quietly.

Spotted regions not reported (or interpreted differently) by NOAA/SWPC:
[S1437] reemerged with spots on January 19. Location at midnight: N17W33

Coronal mass ejections (CMEs)

January 19: A full halo CME was observed after the M3.2 LDE in region 11402. The CME will likely reach Earth on January 21 and could cause active to major storm conditions (strong southward IMF fluctuations are possible taking into consideration the magnetic layout and intensity in the area where the eruption occurred).
January 18: A partial halo CME was observed after a filament eruption in the southern hemisphere near the central meridian. Activity increased in the filament after 08:50 UTC until eruption several hours later.
January 17: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

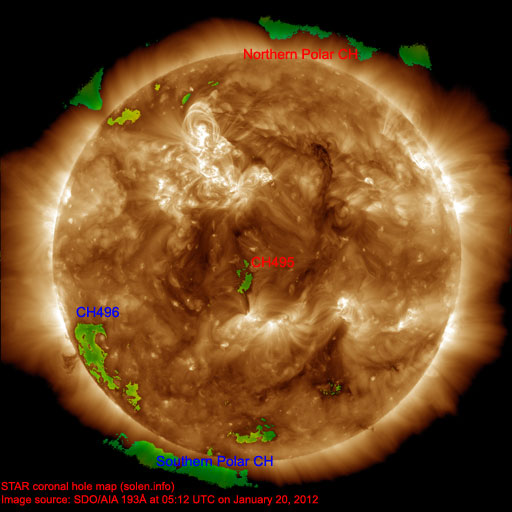

A poorly defined trans equatorial coronal hole (CH494) was in an Earth facing position on January 16-17. CH494 closed on January 17-18. A small coronal hole (CH495) in the southern hemisphere will be in an Earth facing position on January 20. A large recurrent coronal hole (CH496) in the southern hemisphere could rotate into an Earth facing position on January 24-26.

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on January 20 due to weak effects from CH494. On January 21-22 quiet to major storm conditions are possible due to CME effects.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

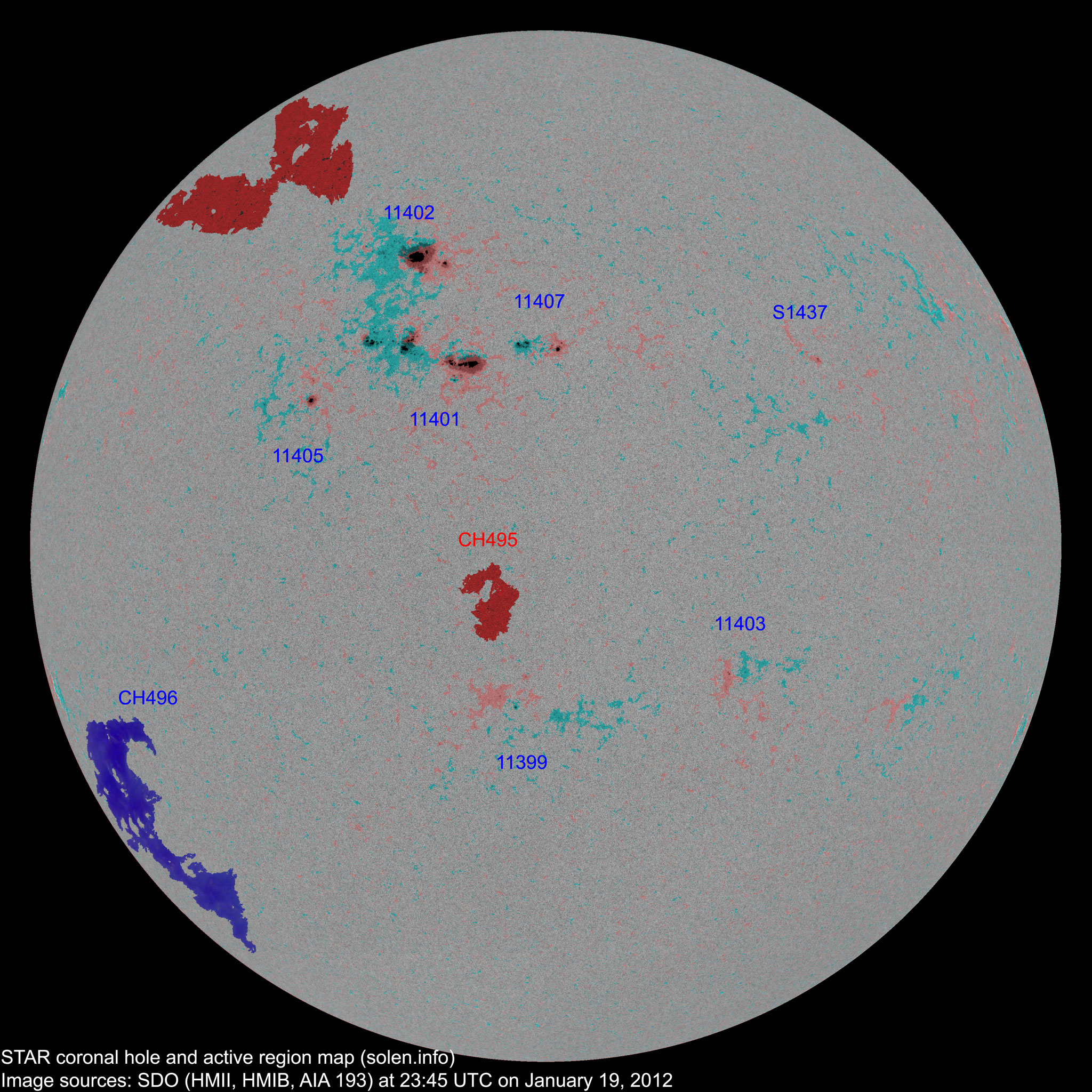

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count		Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	STAR SDO			SWPC	STAR	Current	Previous
11395	2012.01.07 2012.01.08			N20W86						plage
11396	2012.01.09 2012.01.12			N25W58						plage
S1424	2012.01.11			S16W31						plage
11397	2012.01.12 2012.01.13			S20W54						plage
S1427	2012.01.12			S24W57						plage
11399	2012.01.13 2012.01.14	1	7	S23E03	0010	AXX	BXO
11401	2012.01.14	22	37	N18E13	0540	EKI	FKC			beta-gamma-delta location: N17E14
11402	2012.01.14	12	16	N29E15	0500	DKO	CKO			location: N30E17
11403	2012.01.14 2012.01.15	5	4	S19W24	0030	CRO	BXO			location: S18W23
S1431	2012.01.14			N10W35						plage
S1432	2012.01.14			N13W56						plage
11405	2012.01.15 2012.01.16	1	5	N13E25	0040	HSX	CSO			location: N12E28
11404	2012.01.15 2012.01.16			N11W70						plage
S1436	2012.01.16			N16E25						plage
S1437	2012.01.16		3	N17W33	0000		BXO
11406	2012.01.16 2012.01.17	1		S24W84	0010	AXX				spotless
11407	2012.01.18	5	13	N17W00	0010	BXO	DAO			location: N18E02
Total spot count:		47	85
Sunspot number:		117	155	(total spot count + 10 * number of spotted regions)
Weighted penumbral SN:		75	115	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		70	70	k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1, 2011) for STAR SDO

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
