The geomagnetic field was quiet to active on July 5. Solar wind speed at SOHO ranged between 445 and 653 km/s. Solar wind density increased slowly early in the day (the high speed stream from CH521 ended late on July 4), then dropped to very low levels at 06:00 UTC coinciding with a significant increase in solar wind speed (a possible reverse shock). After 10h and until 16:30 UTC density again generally increased slowly, then dropped significantly before suddenly increasing near 19h UTC and reached its highest level of the day just before 20h UTC. These sudden changes in density were reflected in GOES magnetometer measurements and an unsettled to active geomagnetic field. The source of these disturbances were likely recent activity in AR 11515 as there were no indications of a high speed coronal hole stream.
Solar flux measured at 17h UTC on 2.8 GHz was 150.8 (increasing 26.6 over the last solar rotation, the measurement at 20h UTC was flare enhanced. Adjusted to 1 AU and removing all flare enhanced measurements, this is the highest solar flux in 2012). The Potsdam WDC planetary A index was 14 (STAR Ap - based on the mean of three hour interval ap indices: 14.3). Three hour interval K indices: 22144323 (planetary), 22134333 (Boulder).
The background x-ray flux is at the class C2 level.
At midnight UTC the visible solar disk had 14 spotted active regions (in 2K resolution SDO images).
Region 11513 [N15W51] decayed losing most of the small spots and
simpified magnetically. The single penumbra was mostly unchanged.
Region 11514 [S18W49] decayed further and could soon become spotless.
Region 11515 [S17W38] lost a few spots and what was a major magnetic
delta decreased in size and importance. There are currently small magnetic delta
structures in all large penumbrae. M class flares are highly likely and there's
a chance of an X class flare.
Flares: M1.2 at 00:38, M3.7 at 01:10, M1.2
at 01:31, C9.9 at 01:41, C8.1 at 02:05, C7.9 at 02:26, M3.3 at 02:42, M1.1 at
03:31, M7.8 at 03:36, M3.0 at 03:42, M1.1 at 04:45, C8.5 at 05:05, M1.2 at
06:53, M1.6 at 07:45, C8.0 at 09:30, M2.3 at 10:48, C9.2 at 10:56, M8.7 at
11:44, M1.4 at 13:20, C9.5 at 13:55, C8.4 at 14:46, C6.1 at 15:59 ... UTC. In
addition 2 M and several C flares were recorded later in the day. The flare list
is according to SDO/SAM/EVE 1 minute measurements.
Region 11517 [N19W26] added a few spots but lost mature penumbra.
Region 11518 [N09E53] was quiet and stable.
Region 11519 [S16E62] was quiet and stable.
Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1767 [N20W38] developed slowly and quietly.
S1769 [N16W13] quietly added a few spots.
S1774 [S26E64] lost a spot and was quiet.
New region S1775 [S19E84] rotated partly into view revealing large spots
and a compact structure. M class flaring is possible.
New region S1776 [S16E75] rotated into view with a single small spot.
New region S1777 [S13E87] rotated partly into view with a single spot.
New region S1778 [S28W13] emerged with a single small spot.
New region S1779 [N15E03] emerged with a tiny spot.
July 3 and 5: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
July 4: A weak CME observed after an M1 flare in AR 11513 could reach
Earth on July 7.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

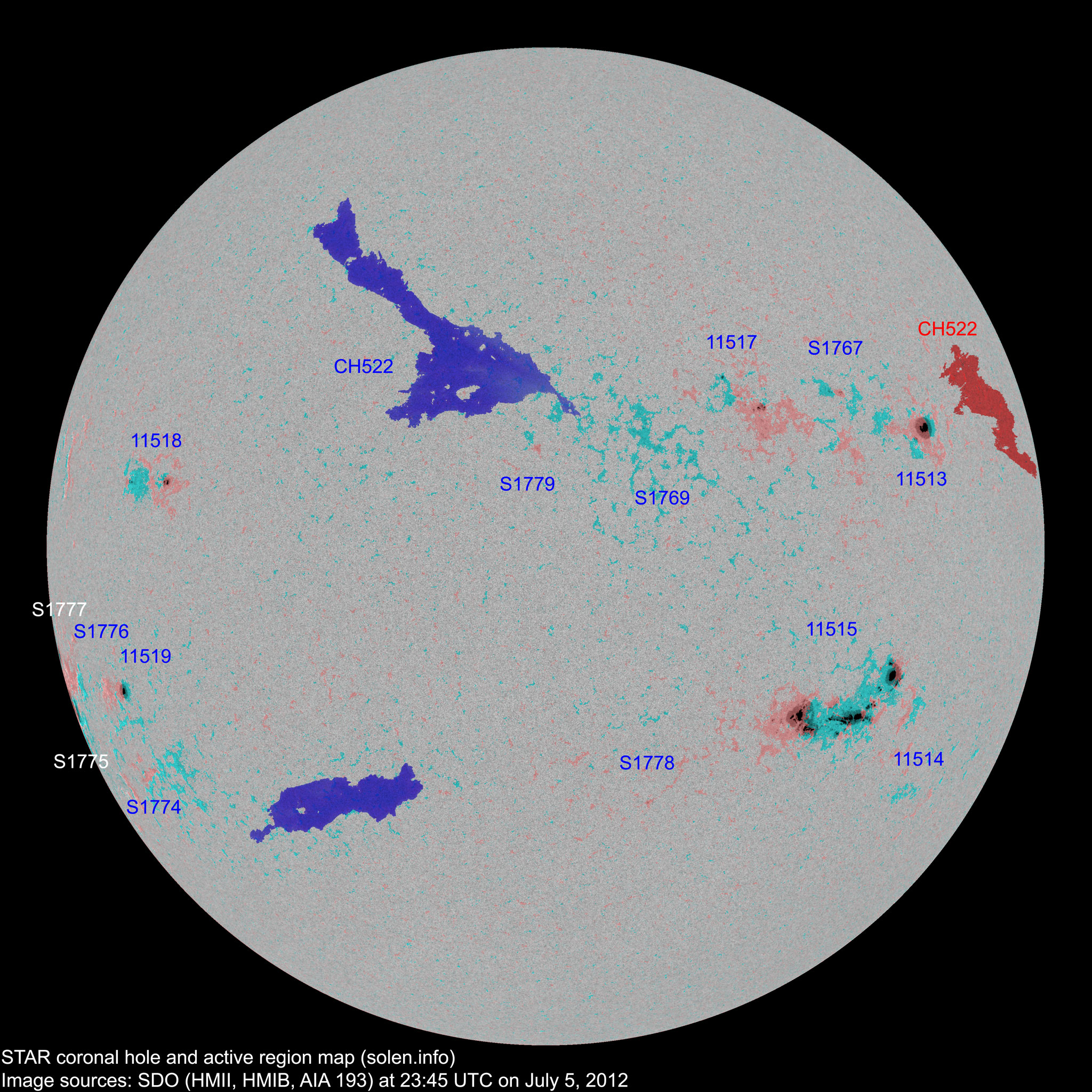

A coronal hole (CH522] in the northern hemisphere could rotate into an Earth facing position on July 6-7.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to active on July 6-8 with a chance of occasional minor storm intervals due to the recent CMEs from ARs 11515 and 11513.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11513 | 2012.06.25 2012.06.26 |
5 | 3 | 2 | N15W52 | 0240 | CSO | CHO |
area: 0280 |
||
11514 | 2012.06.26 2012.06.27 |
1 | S14W54 | 0000 | AXX |
location: S18W49 |
|||||
11515 | 2012.06.26 2012.06.27 |
56 | 91 | 44 | S17W36 | 0670 | EKC | FKC |
beta-gamma-delta area: 1300 location: S17W38 |
||
11516 | 2012.06.27 2012.06.29 |
N14W39 | plage | ||||||||
S1765 | 2012.06.29 | S28W54 | plage | ||||||||
11517 | 2012.06.30 2012.07.01 |
5 | 17 | 7 | N18W27 | 0010 | BXO | DRO | area: 0040 | ||
S1767 | 2012.06.30 | 9 | 2 | N20W38 | 0010 | BXO | |||||
S1769 | 2012.07.01 | 10 | 3 | N16W13 | 0000 | AXX | |||||
S1770 | 2012.07.01 | N03W35 | plage | ||||||||
11518 | 2012.07.03 2012.07.04 |
5 | 7 | 3 | N09E52 | 0010 | BXO | CAO | area: 0040 | ||
S1773 | 2012.07.03 | N23W51 | plage | ||||||||
11519 | 2012.07.04 | 1 | 1 | 1 | S15E63 | 0120 | HSX | HSX | |||
S1774 | 2012.07.04 | 1 | S26E64 | 0000 | AXX | ||||||
S1775 | 2012.07.05 | 4 | 2 | S19E84 | 0500 | DKC | |||||
S1776 | 2012.07.05 | 1 | S16E75 | 0000 | AXX | ||||||
S1777 | 2012.07.05 | 1 | 1 | S13E87 | 0090 | HSX | |||||
S1778 | 2012.07.05 | 1 | 1 | S28W13 | 0000 | AXX | |||||
S1779 | 2012.07.05 | 1 | N15E03 | 0000 | AXX | ||||||
Total spot count: | 72 | 148 | 66 | ||||||||
Sunspot number: | 122 | 288 | 166 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 92 | 196 | 114 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 73 | 101 | 91 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | (65.0 projected, +1.6) | 7.15 |
2012.02 | 106.5 | 33.1 | (66.5 projected, +1.5) | 8.81 |
2012.03 | 114.7 | 64.2 | (67.2 projected, +0.7) | 16.08 |
2012.04 | 113.0 | 55.2 | (66.5 projected, -0.7) | 10.10 |
2012.05 | 121.5 | 69.0 | (64.8 projected, -1.7) | 7.06 |
2012.06 | 119.6 | 64.5 | (64.0 projected, -0.8) | 12.58 |
2012.07 | 143.9 (1) | 22.2 (2A) / 137.8 (2B) | (65.0 projected, +1.0) | (18.00) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
