Solar Terrestrial Activity Report

Activity chart

Last major update issued on July 15, 2012 at 06:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-24 (last update June 2, 2012)] [Cycle 24 progress NEW]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update June 2, 2012)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update June 2, 2012)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update July 1, 2012)]

[POES auroral activity level since October 2009 - updated July 2, 2012]
[Solar polar fields vs solar cycles - updated June 27, 2011]

Recent activity

The geomagnetic field was quiet to major storm on July 14. Solar wind speed at SOHO ranged between 294 and 686 km/s. A strong solar wind shock was observed at 17:26 UTC at SOHO, the arrival of the CME observed on July 12.

Solar flux measured at 20h UTC on 2.8 GHz was 147.9 (increasing 23.9 over the last solar rotation). The Potsdam WDC planetary A index was 20 (STAR Ap - based on the mean of three hour interval ap indices: 20.3). Three hour interval K indices: 11112365 (planetary), 11112354 (Boulder).

The background x-ray flux is at the class B7 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11519 [S16W56] developed as new flux emerged centrally and polarities became slightly intermixed.

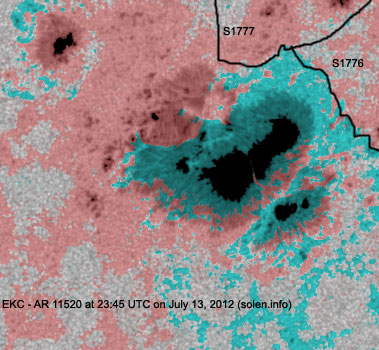

Region 11520 [S17W32] decayed significantly losing penumbral area and spots. There's still a magnetic delta structure in the northeastern part of the largest penumbra, however, it is weaker than it has been.

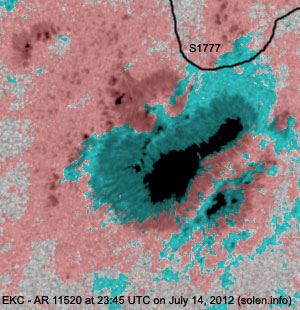

Region 11521 [S21W48] added some penumbral area while the magnetic layout remained mostly unchanged. Flare: M1.0/1F at 04:58 UTC.

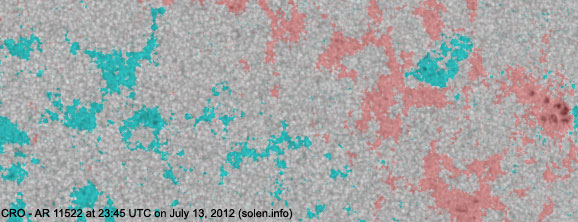

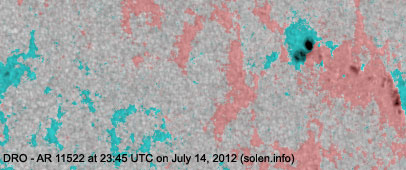

Region 11522 [N12W48] developed slowly and was quiet.
Region 11523 [S29E03] was quiet and stable.

Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1776
[S16W42] decayed slowly and quietly.
S1777 [S13W35] decayed with mature penumbra disappearing.
S1796 [S28W29] was quiet and stable.
New region S1797 [N09E46] emerged with a single spot.

Coronal mass ejections (CMEs)

July 13-14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH523) in the northern hemisphere rotated across the central meridian on July 14, the coronal hole may be too far to the north to cause geomagnetic effects. A coronal hole (CH524) in the southern hemisphere will likely rotate into an Earth facing position on July 18.

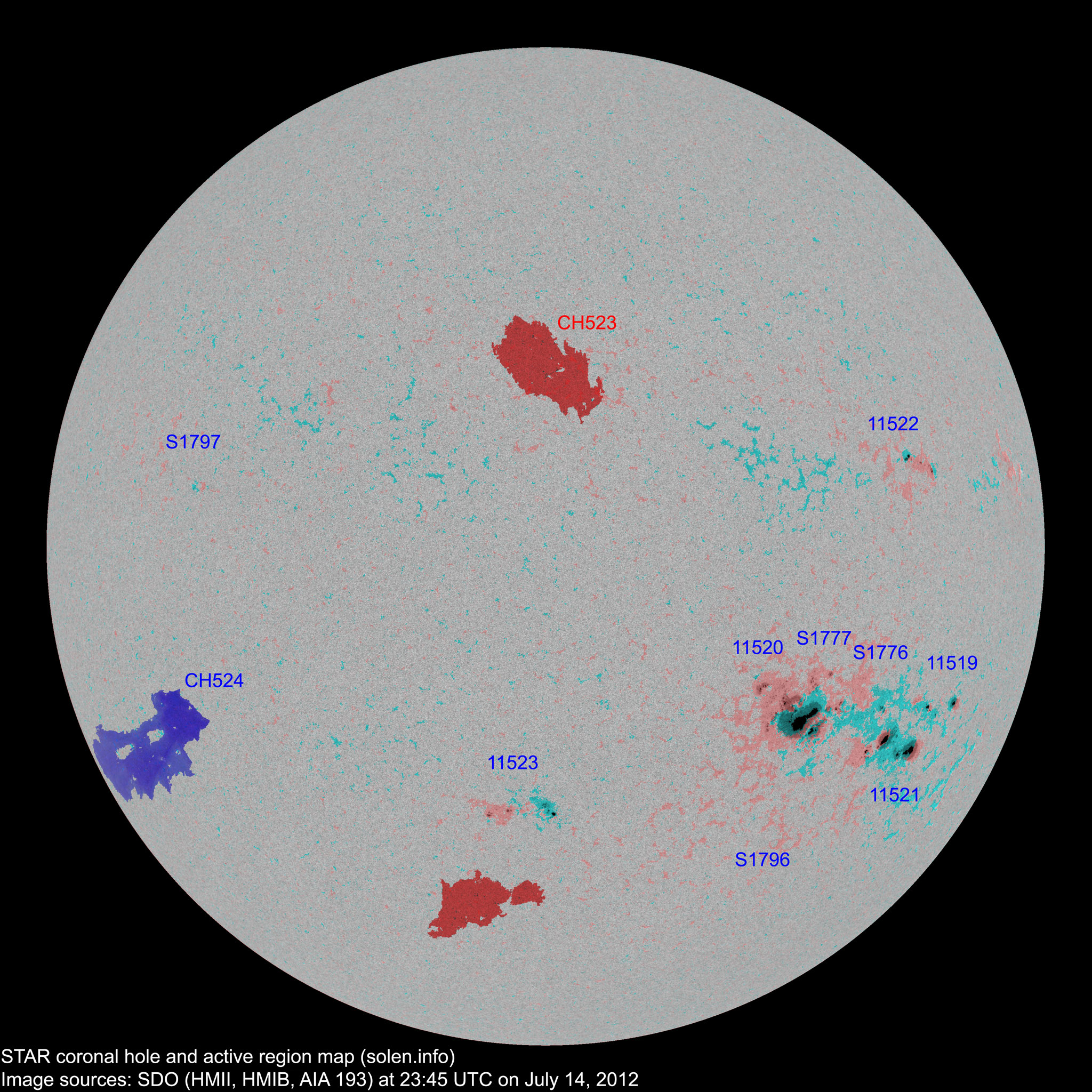

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be active to major storm on July 15 and quiet to active on July 16 due to CME effects. There's a chance of weak effects from CH523 on July 17-18.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11518 2012.07.03
2012.07.04
      N09W67           location: N12W68
11519 2012.07.04 3 7 3 S16W56 0050 CSO CSO area: 0090
11520 2012.07.05
2012.07.06
34 42 26 S17W35 0990 FKC EKC beta-gamma-delta

location: S17W32

SWPC count, location, classification and area probably includes ARs S1776 and S1777

S1776 2012.07.05   15 7 S16W42 0040   DRO
S1777 2012.07.05   9 5 S13W35 0030   HRX
11521 2012.07.07
2012.07.09
16 20 12 S21W47 0280 EKI DSC

area: 0480

11522 2012.07.07
2012.07.12
7 10 7 N13W49 0020 CAO DRO
S1785 2012.07.07       S26W58
S1790 2012.07.10       N08E13           plage
S1791 2012.07.10       N12W11           plage
S1792 2012.07.10       N26W42           plage
11523 2012.07.11
2012.07.12
10 16 7 S28E04 0050 DAO DRO
S1794 2012.07.11       S27W47           plage
S1795 2012.07.13       N21E31         plage
S1796 2012.07.13   2   S28W29 0000   AXX
S1797 2012.07.14   1   N09E46 0000   AXX
Total spot count: 70 122 67
Sunspot number: 120 212 137  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 105 154 99  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 72 74 75 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 (65.0 projected, +1.6) 7.15
2012.02 106.5 33.1 (66.5 projected, +1.5) 8.81
2012.03 114.7 64.2 (67.2 projected, +0.7) 16.08
2012.04 113.0 55.2 (66.5 projected, -0.7) 10.10
2012.05 121.5 69.0 (64.8 projected, -1.7) 7.06
2012.06 119.6 64.5 (64.0 projected, -0.8) 10.08
2012.07 155.9 (1) 57.3 (2A) / 126.9 (2B) (65.0 projected, +1.0) (16.62)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
