The geomagnetic field was minor to very severe storm on July 15. Solar wind speed at SOHO ranged between 445 and 662 km/s under the influence of strong CME effects. After 06h Earth was embedded in a magnetic cloud with a very strong and persistent southwards Bz.
Solar flux measured at 20h UTC on 2.8 GHz was 140.5 (increasing 22.5 over the last solar rotation). The Potsdam WDC planetary A index was 92 (STAR Ap - based on the mean of three hour interval ap indices: 92.0). Three hour interval K indices: 56765686 (planetary), 45675543 (Boulder).
The background x-ray flux is at the class C1 level.
At midnight UTC the visible solar disk had 10 spotted active regions (in 2K resolution SDO images).
Region 11519 [S16W70] developed further and was the most active region
on the visible disk producing several C flares.
Region 11520 [S17W46] decayed further and lost the magnetic delta
structure and polarity intermixing. Only a single C flare was recorded.
Region 11521 [S21W63] decayed losing spots and penumbral area, only a
single C flare was recorded.
Region 11522 [N12W63] developed slowly and quietly.
Region 11523 [S28W12] developed slowly and quietly.
Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1776 [S16W54] decayed slowly and quietly.
S1777 [S12W49] decayed slowly and quietly.
S1790 [N12W01] reemerged with a siingle tiny spot.
New region S1798 [S15E77] rotated into view with a single spot.
New region S1799 [S15W21] emerged with a few tiny spots.
July 13-15: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

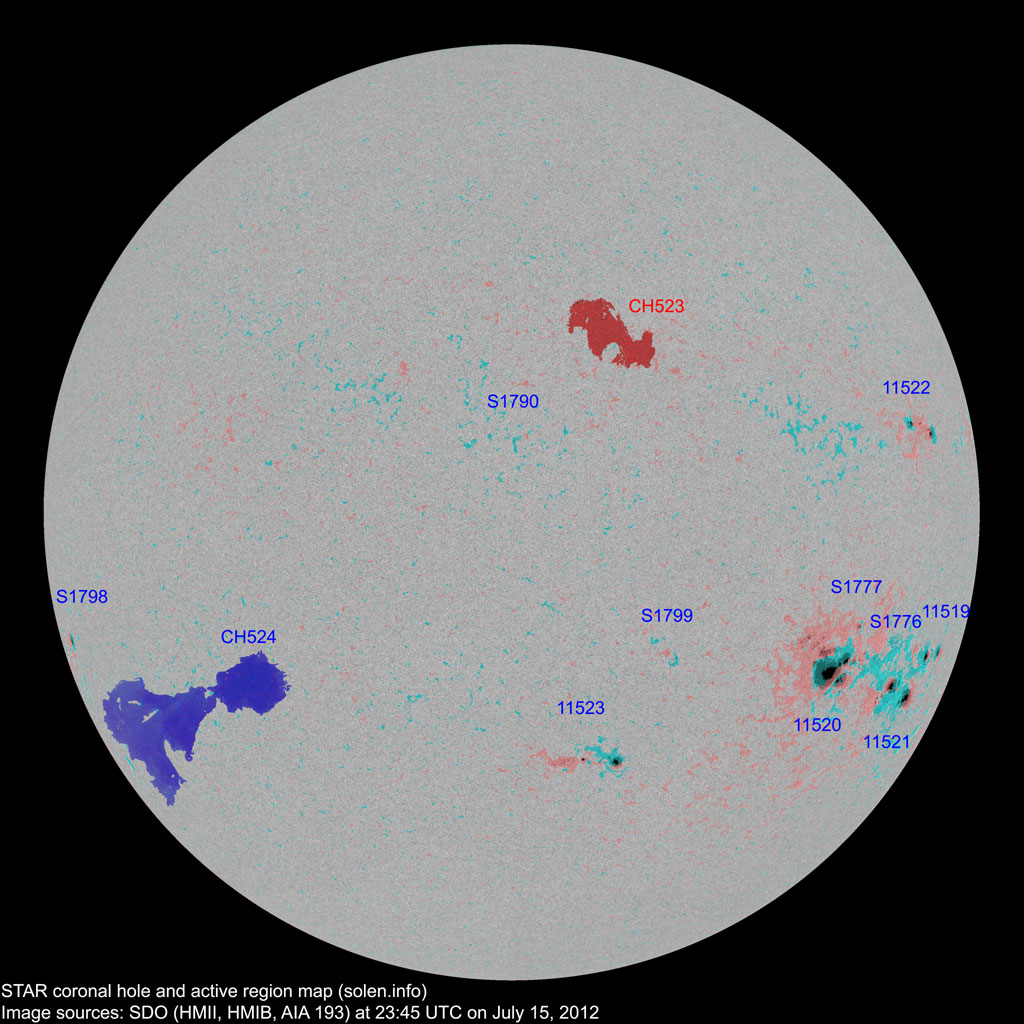

A coronal hole (CH523) in the northern hemisphere rotated across the central meridian on July 14, the coronal hole may be too far to the north to cause geomagnetic effects. A coronal hole (CH524) in the southern hemisphere will likely rotate into an Earth facing position on July 18.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very poor to useless. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be unsettled to severe storm on July 16 and quiet to unsettled on July 17-18. There's a chance of weak effects from CH523 on July 17-18.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

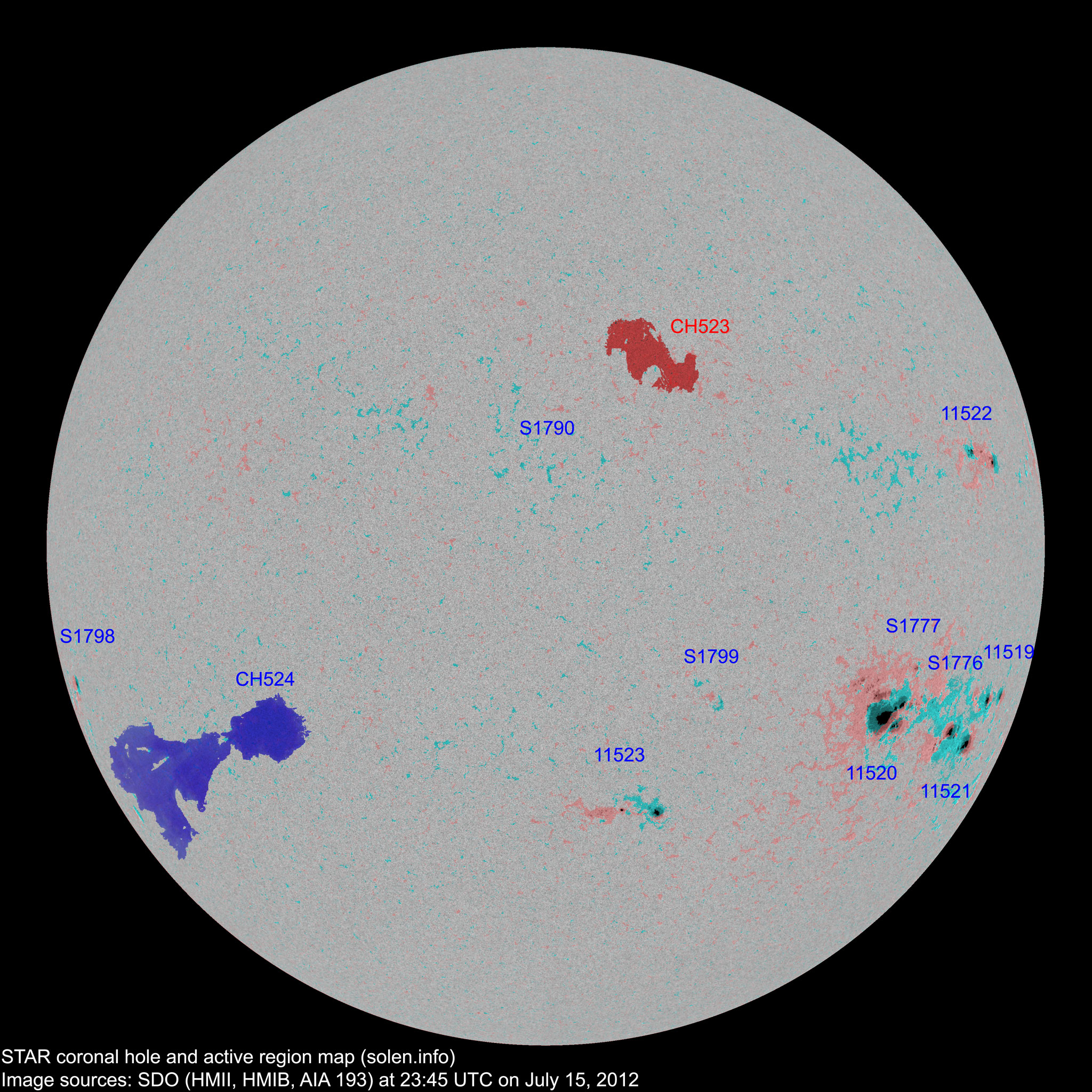

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11518 | 2012.07.03 2012.07.04 |
N09W81 | |||||||||
11519 | 2012.07.04 | 12 | 10 | 4 | S17W68 | 0090 | DAO | CSO | |||
11520 | 2012.07.05 2012.07.06 |
35 | 33 | 20 | S17W48 | 0960 | FKC | DKC |
location: S17W46 area: 0800 SWPC count, location, classification and area probably includes ARs S1776 and S1777 |
||
S1776 | 2012.07.05 | 11 | 6 | S16W54 | 0020 | CRI | |||||
S1777 | 2012.07.05 | 2 | 1 | S12W49 | 0010 | HRX | |||||
11521 | 2012.07.07 2012.07.09 |
17 | 13 | 10 | S21W60 | 0300 | EKI | ESO | |||
11522 | 2012.07.07 2012.07.12 |
9 | 10 | 6 | N13W62 | 0040 | DAO | DAO | area: 0090 | ||
S1790 | 2012.07.10 | 1 | N12W01 | 0000 | AXX | ||||||
S1791 | 2012.07.10 | N12W24 | plage | ||||||||
S1792 | 2012.07.10 | N26W55 | plage | ||||||||
11523 | 2012.07.11 2012.07.12 |
11 | 12 | 6 | S28W08 | 0050 | DAO | DSI | |||
S1795 | 2012.07.13 | N21E18 | plage | ||||||||
S1796 | 2012.07.13 | S28W42 | plage | ||||||||
S1797 | 2012.07.14 | N09E33 | plage | ||||||||
S1798 | 2012.07.15 | 1 | 1 | S15E77 | 0050 | HSX | |||||
S1799 | 2012.07.15 | 3 | 2 | S15W21 | 0000 | BXO | |||||
Total spot count: | 84 | 96 | 55 | ||||||||
Sunspot number: | 134 | 196 | 145 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 119 | 137 | 96 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 80 | 69 | 80 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | (65.0 projected, +1.6) | 7.15 |
2012.02 | 106.5 | 33.1 | (66.5 projected, +1.5) | 8.81 |
2012.03 | 114.7 | 64.2 | (67.2 projected, +0.7) | 16.08 |
2012.04 | 113.0 | 55.2 | (66.5 projected, -0.7) | 10.10 |
2012.05 | 121.5 | 69.0 | (64.8 projected, -1.7) | 7.06 |
2012.06 | 119.6 | 64.5 | (64.0 projected, -0.8) | 10.08 |
2012.07 | 154.9 (1) | 61.6 (2A) / 127.3 (2B) | (65.0 projected, +1.0) | (21.64) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
