Solar Terrestrial Activity Report

Activity chart

Last major update issued on July 30, 2012 at 05:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-24 (last update June 2, 2012)] [Cycle 24 progress NEW]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update June 2, 2012)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update June 2, 2012)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update July 1, 2012)]

[POES auroral activity level since October 2009 - updated July 17, 2012]
[Solar polar fields vs solar cycles - updated June 27, 2011]

Recent activity

The geomagnetic field was quiet to unsettled on July 29. Solar wind speed at SOHO ranged between 308 and 404 km/s under the influence of a low speed stream from CH525.

Solar flux measured at 20h UTC on 2.8 GHz was 131.4 (decreasing 8.8 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.0). Three hour interval K indices: 32221011 (planetary), 32322211 (Boulder).

The background x-ray flux is at the class B5 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11526 [S16W48] was quiet and stable.
Region 11528 [N17W16] was quiet and stable.
Region 11529 [S11W09] was quiet and stable.
Region 11530 [S19E01] was quiet and stable.
Region 11532 [S21E32] has two magnetic delta structures, one in the leading penumbra, another in a central penumbra. Further M class flaring is possible. Flare: M2.3/1N at 06:22 UTC.
Region 11533 [S29W07] decayed slowly and quietly.
Region 11534 [N18E42] decayed and could soon become spotless.

Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1828
[S22W02] decayed slowly and quietly.
New region S1831 [N18E76] rotatged into view. C flars are possible.

Coronal mass ejections (CMEs)

July 27 and 29: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
July 28: The partial halo CME produced by the M6 event in AR 11532 could have a minor Earth directed component.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH525) was in an Earth facing position on July 25-27.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on July 30 due to effects from CH525 and quiet on July 31. Weak effects from the July 28 CME are possible on August 1.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

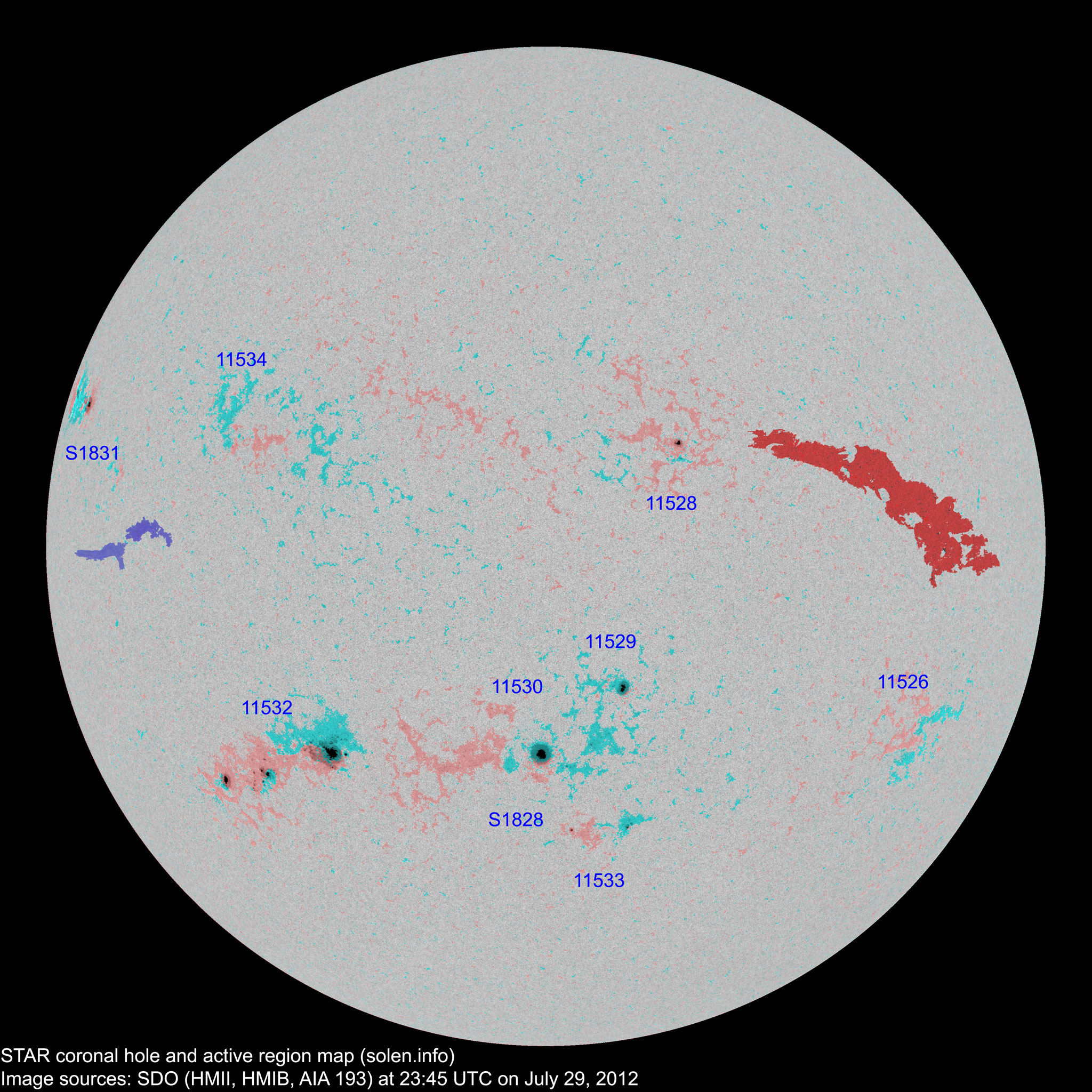

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11526 2012.07.19
2012.07.20
  3   S17W59 0000   AXX location: S18W48
11528 2012.07.22
2012.07.23
2 4 2 N17W15 0040 HSX CSO



11527 2012.07.22
2012.07.23
      N27W17         plage

location: N25W09

11529 2012.07.22
2012.07.23
1 6 1 S11W10 0070 HSX HSX
11530 2012.07.23
2012.07.24
3 18 7 S17W00 0170 CSO CHO

area: 0260

S1819 2012.07.24       N21W33           plage
S1820 2012.07.24       N17W44           plage
11532 2012.07.25
2012.07.26
20 44 23 S21E33 0500 FKO FKI beta-gamma-delta

area: 0700

S1822 2012.07.25       N20W48         plage
11533 2012.07.26
2012.07.27
3 5 3 S28W07 0030 CSO DRO
11534 2012.07.27
2012.07.28
  6   N17E41 0000   BXO
S1826 2012.07.27       S25W40           plage
S1827 2012.07.28       N17W01         plage
S1828 2012.07.28   7 3 S22W02 0010   BXO
S1829 2012.07.28       S02W28         plage
S1830 2012.07.28       N08W60         plage
S1831 2012.07.29   7 3 N18E76 0200   DSO
Total spot count: 29 100 42
Sunspot number: 79 190 112  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 59 138 80  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 47 67 62 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 (65.0 projected, +1.6) 7.15
2012.02 106.5 33.1 (66.5 projected, +1.5) 8.81
2012.03 114.7 64.2 (67.2 projected, +0.7) 16.08
2012.04 113.0 55.2 (66.5 projected, -0.7) 10.10
2012.05 121.5 69.0 (64.8 projected, -1.7) 7.06
2012.06 119.6 64.5 (64.0 projected, -0.8) 10.08
2012.07 133.6 (1) 92.4 (2A) / 98.8 (2B) (65.0 projected, +1.0) (14.68)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
