The geomagnetic field was very quiet on June 19. Solar wind speed at SOHO ranged between 343 and 577 km/s under the influence of lingering CME effects. Solar wind density dropped to a very low average of 0.33 p/cm3 at SOHO with the minimum value below 0.01 p/cm3.
Solar flux measured at 20h UTC on 2.8 GHz was 109.9 (decreasing 8.2 over the last solar rotation). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.8). Three hour interval K indices: 11111111 (planetary), 01111212 (Boulder).
The background x-ray flux is at the class B3 level.
At midnight UTC the visible solar disk had 6 spotted active regions (in 2K resolution SDO images).
Region 11504 [S17W66] did not change significantly and produced a few
small C class events.
Region 11507 [S28W80] rotated partly out of view at the southwest limb.
New region 11510 [S18E03] emerged on June 16 and was numbered by SWPC 3 days later.
Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1738 [N15E08] was quiet and stable.
New region S1741 [S26E77] rotated into view with a single small spot.
New region S1742 [S22E26] emerged with a tiny spot.
June 16-18: No obvious CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are currently in or near potentially geoeffective positions.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on June 20-23.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

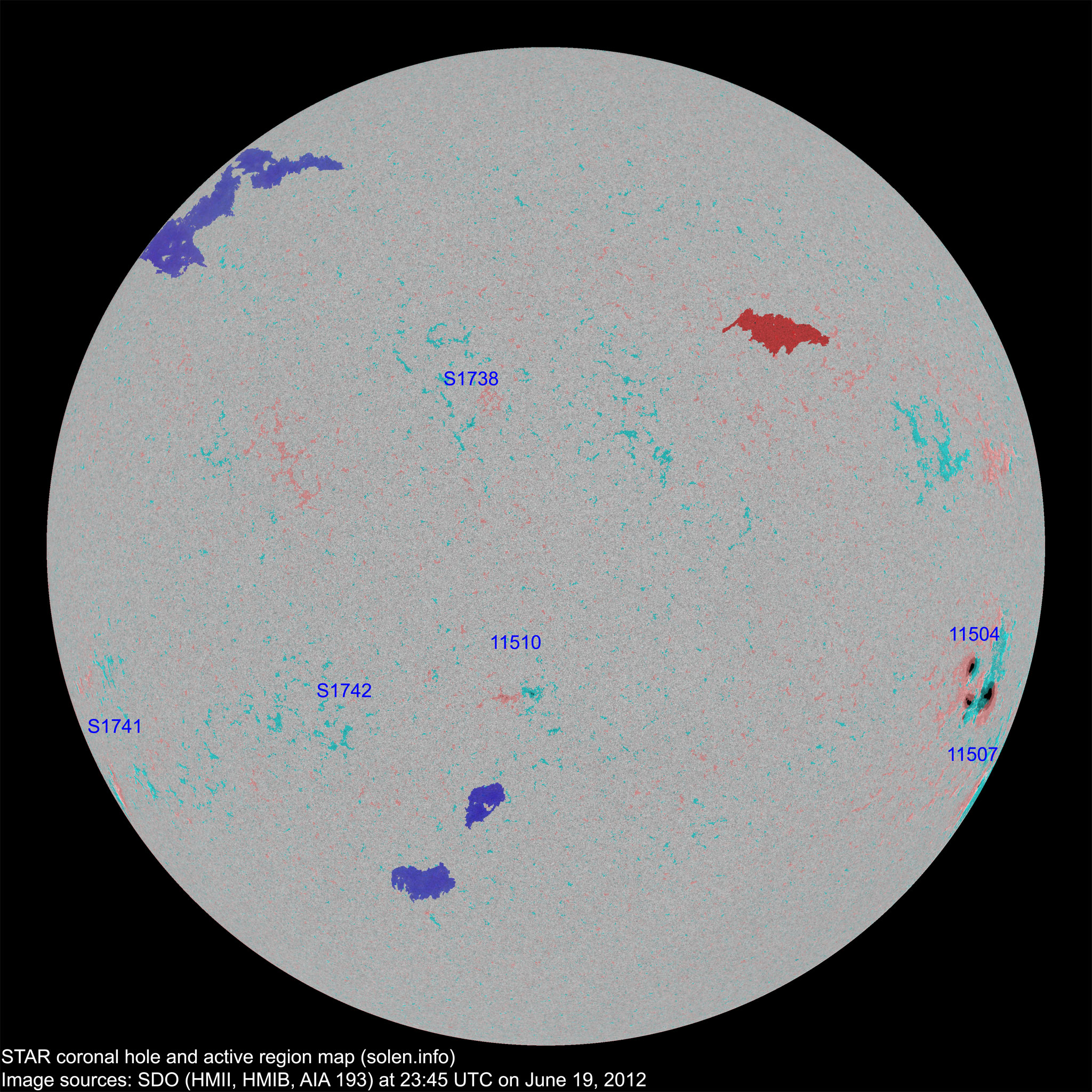

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
|11508||2012.06.13||1||S28W81||0030||HSX||part of AR 11507|
|Total spot count:||14||20||11|
|Sunspot number:||64||80||61||(total spot count + 10 * number of spotted regions)|
|Weighted penumbral SN:||32||33||24||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||38||28||34||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2011.12||141.3||73.0||(64.3 projected, +3.2)||3.78|
|2012.01||132.5||58.3||(68.0 projected, +3.7)||7.15|
|2012.02||106.5||33.1||(71.3 projected, +3.3)||8.81|
|2012.03||114.7||64.2||(73.0 projected, +1.7)||16.08|
|2012.04||113.0||55.2||(73.2 projected, +0.2)||10.10|
|2012.05||121.5||69.0||(73.2 projected, +0.0)||8.75|
|2012.06||130.6 (1)||72.4 (2A) / 114.3 (2B)||(73.9 projected, +0.7)||(14.89)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
