Recent activity

The geomagnetic field was very quiet on June 21. Solar wind speed at SOHO ranged between 285 and 478 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 97.7 (decreasing 19.5 over the last solar rotation). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.8). Three hour interval K indices: 11111111 (planetary), 11012211 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 2 spotted active regions (in 2K resolution SDO images).

Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
Region S1743 [N13W02] developed adding spots and rudimentary penumbra.
New region S1745 [N18E75] rotated into view at the northeast limb.

Coronal mass ejections (CMEs)

June 18-20: No obvious Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near potentially geoeffective positions.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on June 22-24.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

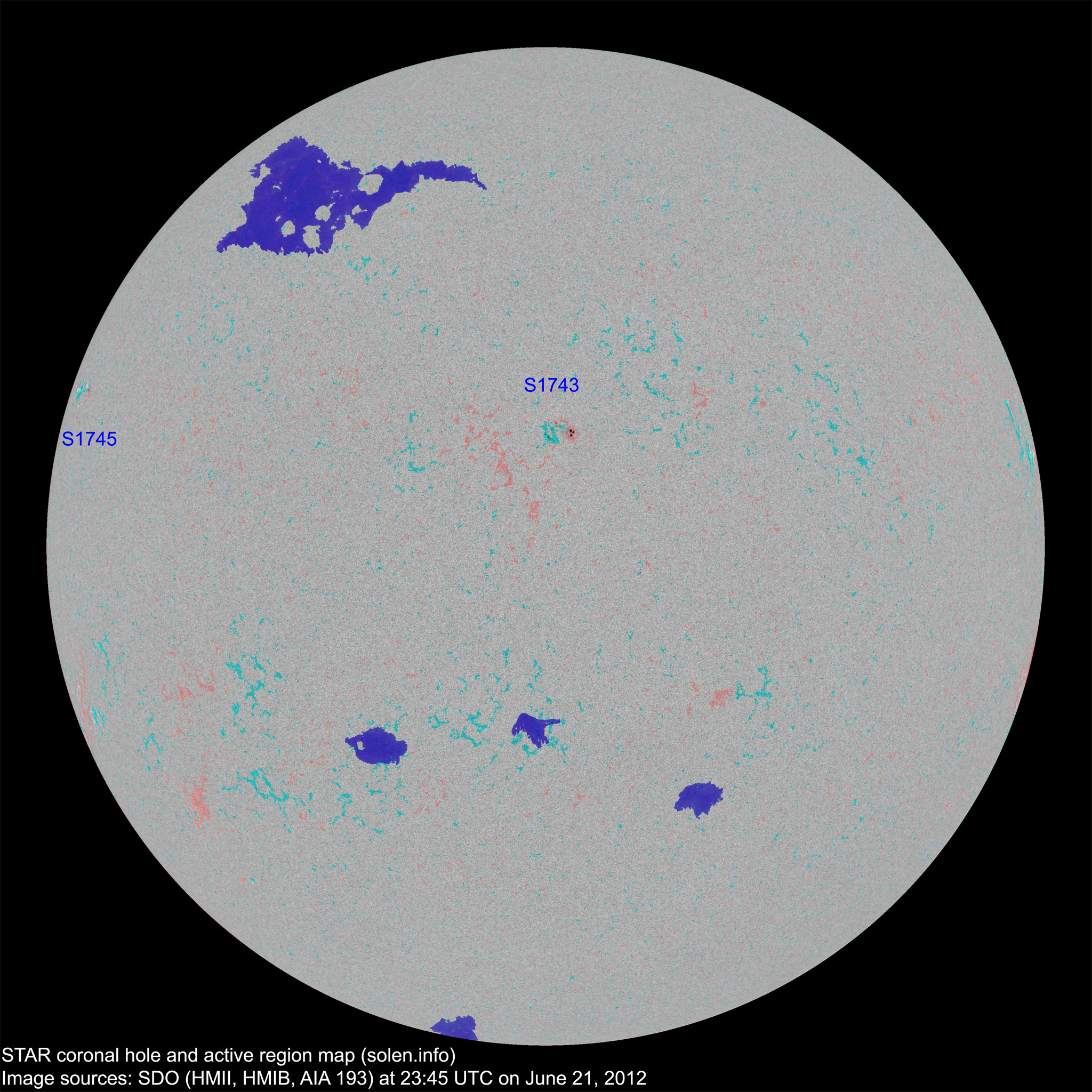

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11504 2012.06.08
2012.06.09
3     S15W89 0210 DSO

rotated out of view

11506 2012.06.09
2012.06.10
      N12W83

plage

11510 2012.06.16
2012.06.19
      S15W24         plage
S1733 2012.06.16       N14W53           plage
S1738 2012.06.18       N15W18           plage
S1739 2012.06.18       N11W40           plage
S1740 2012.06.18       S20W32           plage
S1741 2012.06.19       S26E51           plage
S1742 2012.06.19       S22E00           plage
S1743 2012.06.20   8 7 N13W02 0020   CRO
S1744 2012.06.20       S32E20         plage
S1745 2012.06.21   1 1 N18E75 0010   AXX
Total spot count: 3 9 8
Sunspot number: 13 29 28  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 8 12 11  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 8 10 15 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2011.03 115.0 56.2 36.9 (+3.5) 8.18
2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 (64.3 projected, +3.2) 3.78
2012.01 132.5 58.3 (68.0 projected, +3.7) 7.15
2012.02 106.5 33.1 (71.3 projected, +3.3) 8.81
2012.03 114.7 64.2 (73.0 projected, +1.7) 16.08
2012.04 113.0 55.2 (73.2 projected, +0.2) 10.10
2012.05 121.5 69.0 (73.2 projected, +0.0) 8.75
2012.06 127.8 (1) 73.8 (2A) / 105.4 (2B) (73.9 projected, +0.7) (13.83)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
