Recent activity

The geomagnetic field was quiet to unsettled on March 6. Solar wind speed at SOHO ranged between 336 and 386 km/s. A brief and sudden increase in solar wind density was observed at SOHO at 13:24 UTC as well as a minor abrupt increase in solar wind speed. On March 7 near 03:30 UTC a significant solar wind shock was observed at ACE. Since then the interplanetary magnetic field has been strongly southwards. It is currently uncertain if this shock was related to the CME observed on March 4 or the one on March 5. Major geomagnetic storming is likely over the next hours.

Solar flux measured at 20h UTC on 2.8 GHz was 138.1 (increasing 40.9 over the last solar rotation). The planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 9.4). Three hour interval K indices: 32302223 (planetary), 32413322 (Boulder).

The background x-ray flux is at the class C1 level.

At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

Region 11424 [N08W73] was quiet and stable.
Region 11428 [S17E08] had most spots merge into two penumbrae during the first half of the day, then small intermediate spots began to emerge late in the day. The region has a small magnetic delta structure near the northern edge of the trailing penumbra. A minor M class flare is possible.
Region 11429 [N17E28] extended longitudinally and has a very strong magnetic delta structure across most of the central part of the huge penumbra. Further X class flares are likely over the next days. Flares: M1.3 at 00:28, M1.2 at 01:44, C2.4 at 02:33, C9.2 at 03:28, M1.0/1N at 04:05, C2.9 at 05:28, C5.3 at 07:43, M1.0 at 07:55, C2.8 at 11:17, M2.1/1N at 12:41, M1.3 at 21:11, M1.0 at 22:53 UTC. On March 7 the region has produced 2 X flares: X5.4/3B (associated with a fast, wide CME) at 00:24 and X1.3 at 01:14 (associated with a fast, but still significantly slower CME than the one observed less than an hour before) UTC. The latter X flare occurred in the western part of the magnetic delta structure while the X5 event was near the center of the inversion line. A radiation storm was associated with these events and is currently in progress.
Region 11430 [N20E13] developed further and still has weak polarity intermixing in the central spot section.
Region 11431 [S27W49] decayed slowly and quietly.

Spotted regions not reported by NOAA/SWPC:
[S1498] reemerged on March 6. Location at midnight: N32W60
[S1500] reemerged on March 6. Location at midnight: N10W13
[S1512] emerged in the southeast quadrant on March 5. Location at midnight: S18E35

Minor update added at 15:50 UTC: The CME observed on March 5 arrived near 13h UTC (estimated time based on available data) and caused an increase to severe geomagnetic storm levels. The planetary A index for the 12-15h UTC interval was 111 (Kp 7; note that this is based on the traditional estimates of geomagnetic activity. SWPC introduced another estimate using a different set of observing magnetometers earlier this year. The new set typically has lower Kp than the magnetometers normally used. In this case Kp 6 for the same time interval). Ap was 94 for the 06-09h UTC interval and 80 for the next 3-hour interval.

Region 11429 has been mostly quiet after the 2 X flares. The region is still very complex and could produce further X class flares. The radiation storm is intensifying with the above 10 MeV proton flux currently above 1700 pfu. The peak could be significantly higher when the huge CME observed today reaches Earth tomorrow.

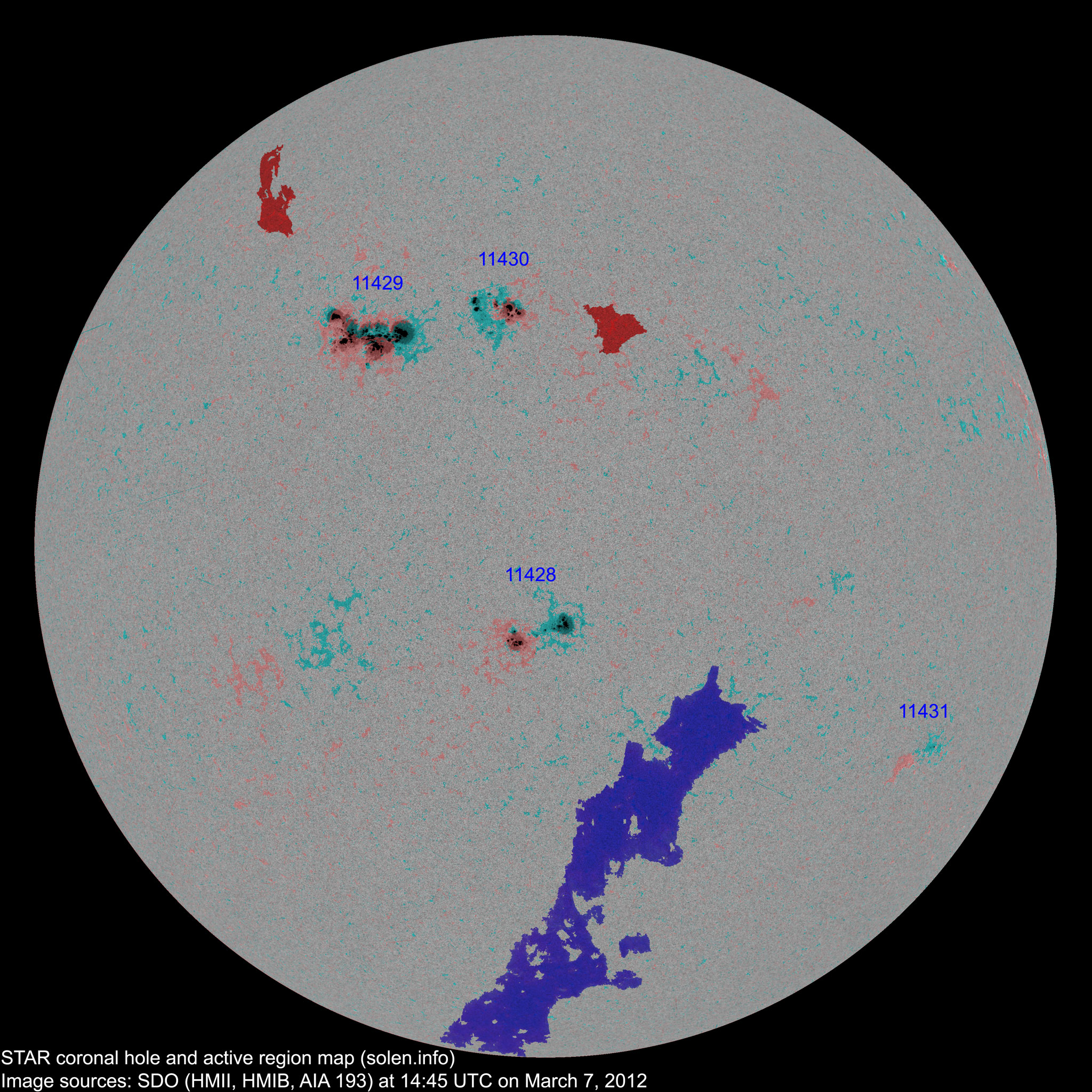

Only 4 active regions had spots at 14:45 UTC, see the most recent high resolution CHARMAP.

Coronal mass ejections (CMEs)

March 4: The long duration M2 event in region 11429 was associated with a full halo CME which could reach Earth on March 6 or early on March 7.
March 5: Another full halo CME was observed after the X1 event. The CME could reach Earth on March 7.
March 6: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
March 7: The X flares in region 11429 produced fall halo CMEs that could reach Earth sometime on March 8 and cause active to very severe geomagnetic storming.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent, elongated coronal hole (CH506) in the southern hemisphere was in an Earth facing position on March 3-4.

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.


Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very poor to useless. Propagation on long distance northeast-southwest paths is poor to fair.


The geomagnetic field is expected to be unsettled to major storm due to CME effects on March 7. Active to severe storm is possibly on March 8-9 due to the CMEs observed early on March 7.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

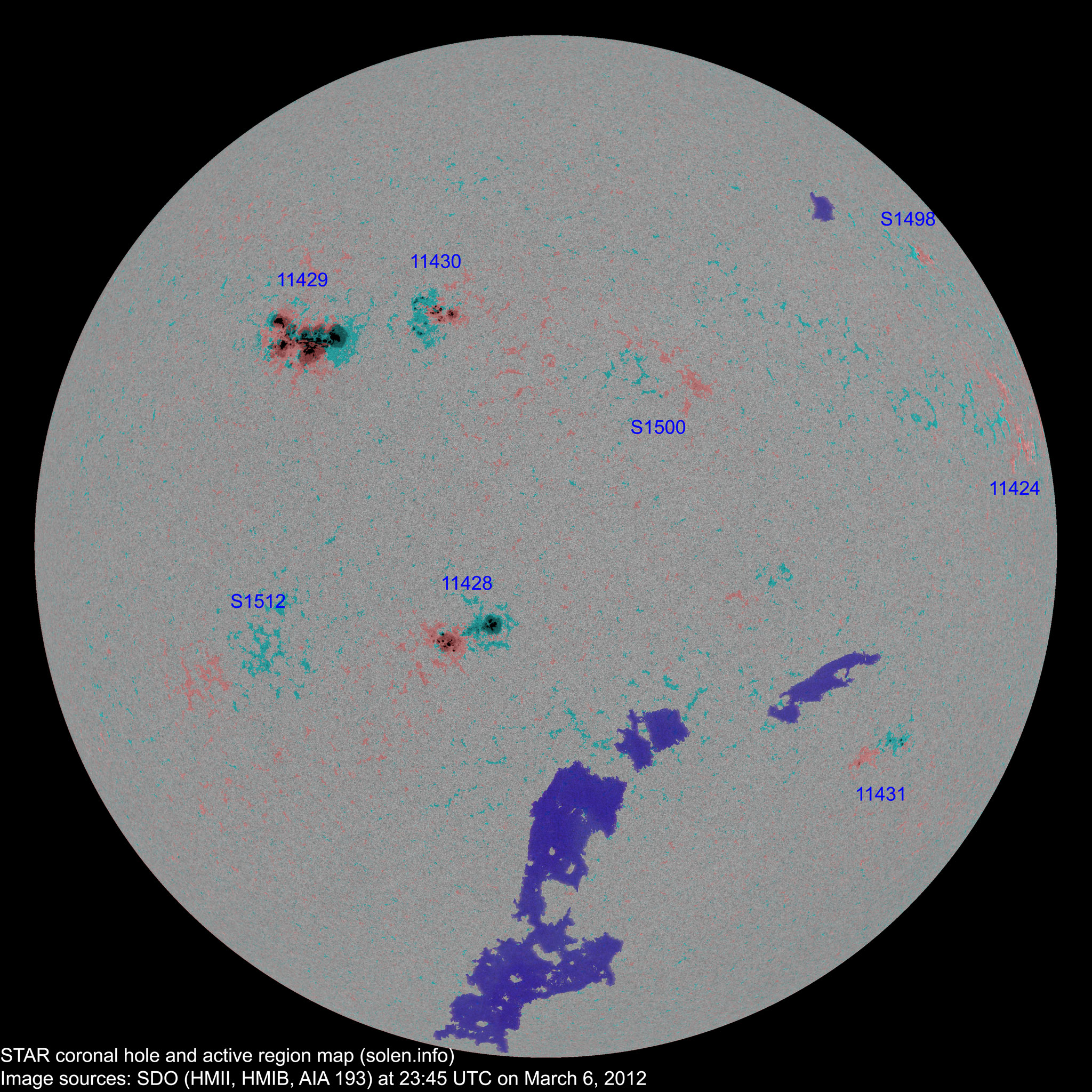

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
2K 1K
11423 2012.02.22
1     N18W90 0030 HSX     rotated out of view
11424 2012.02.24   1   N08W73 0000   AXX
S1498 2012.02.28   2   N32W60 0010   CRO
S1500 2012.02.29   1   N10W13 0000   AXX
11427 2012.02.29


S1503 2012.03.01       N12W45           plage
S1504 2012.03.01       N10W49         plage
S1505 2012.03.02       S27W01           plage
11428 2012.03.02
17 27 13 S16E09 0250 DAI DSI beta-gamma-delta

area: 0450

11429 2012.03.02
25 47 22 N17E29 1120 DKC EKC beta-gamma-delta

area: 1700

reversed polarities

S1509 2012.03.03       S10W13           plage
11430 2012.03.04 11 27 17 N19E13 0110 DAO DAI beta-gamma
11431 2012.03.04
5 5 4 S28W48 0030 DRO BXO
S1512 2012.03.05   3 1 S18E35 0000   AXX
Total spot count: 59 113 57
Sunspot number: 109 193 107  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 87 141 85  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 65 68 59 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 47.6 (+5.8) 9.18 / 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.96 / 8.06
2011.07 94.2 43.9 57.2 (+4.0) 9.14 / 8.16
2011.08 101.7 50.6 59.0 (+1.8) 8.16 / 7.26
2011.09 133.8 78.0 (59.2 projected, +0.2) 12.80 / 12.27
2011.10 137.3 88.0 (59.4 projected, +0.2) 7.52 / 8.28
2011.11 153.5 96.7 (60.8 projected, +1.4) 4.58 / 5.55
2011.12 141.3 73.0 (63.6 projected, +2.8) 3.32
2012.01 132.5 58.3 (67.1 projected, +3.5) 6.59
2012.02 106.5 33.1 (71.0 projected, +3.9) 8.09
2012.03 118.8 (1) 12.4 (2A) / 64.0 (2B) (73.2 projected, +2.2) (11.06)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
