Recent activity

The geomagnetic field was quiet on March 26. Solar wind speed at SOHO ranged between 310 and 364 km/s. A low speed stream associated with CH509 arrived early on March 27.

Solar flux measured at 20h UTC on 2.8 GHz was 102.4 (decreasing 0.9 over the last solar rotation). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.6). Three hour interval K indices: 12121101 (planetary), 02111211 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

Region 11438 [S14W10] decayed slowly and was mostly quiet.
Region 11443 [N13E13] was quiet and added a few small spots.
Region 11444 [N21W03] decayed slowly and quietly.
Region 11445 [S23E40] matured further and was quiet.

Spotted regions not reported by NOAA/SWPC:
[S1545] reemerged on March 26 with several spots. Location at midnight: S24W42
[S1548] emerged in the northeast quadrant on March 23 and developed quickly on March 26. C and minor M class flares are possible. SWPC failed to notice that this was a new region and reassigned AR 11442. Location at midnight: N12E03. Flares: C1.4 at 06:42, C2.7 at 23:38 UTC.
[S1551] rotated into view at the southeast limb on March 26. Location at midnight: S18E81
[S1552] emerged in the northeast quadrant on March 26. Location at midnight: N12E18

Coronal mass ejections (CMEs)

March 24-26: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery. Several CMEs originating in old AR 11429 behind the northeast limb were observed over the last days.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH509) was in an Earth facing position on March 23-25.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on March 27-28 due to a low speed stream from CH509. Quiet conditions are likely on March 29.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11436 2012.03.15
2012.03.16
      S14W76           plage
S1533 2012.03.18       N23W55           plage
11438 2012.03.19
2012.03.20
1 1 1 S13W10 0020 HSX HRX location: S14W10
S1539 2012.03.20       N05W53           plage
11442 2012.03.21
2012.03.22
3     N12W01 0030 CSO     spotless

location: N12W05

SWPC data is for AR S1548

11443 2012.03.21
2012.03.22
  6 4 N16E11 0010   BXO location: N13E13
11444 2012.03.22
2012.03.23
5 4 3 N21W04 0040 CSO AXX

area: 0010

11446 2012.03.22
2012.03.25
      N23W40           plage

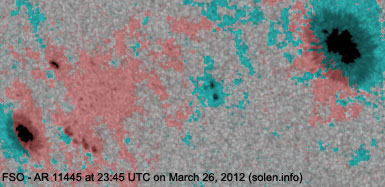

11445 2012.03.23 7 11 7 S23E40 0210 FAO FSO

area: 0300

S1545 2012.03.23   6 5 S24W42 0020   DRO
S1547 2012.03.23       N29E03           plage
S1548 2012.03.23   21 9 N12E03 0080   DAI
S1550 2012.03.24       S18E23           plage
S1551 2012.03.26   1 1 S18E81 0010   HRX
S1552 2012.03.26   1   N12E18 0000   AXX
Total spot count: 16 51 30
Sunspot number: 56 131 100  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 36 70 49  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 34 46 55 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum

2010.12 84.2 14.4 28.8 (+2.3) 4.35
2011.01 83.6 19.1 31.0 (+2.2) 5.51
2011.02 94.6 29.4 33.4 (+2.4)  6.44
2011.03 115.0 56.2 36.9 (+3.5) 8.18
2011.04 112.6 54.4 41.8 (+4.9) 8.83
2011.05 95.8 41.6 47.6 (+5.8) 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.06
2011.07 94.2 43.9 57.2 (+4.0) 8.16
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 (59.2 projected, +0.2) 12.27
2011.10 137.3 88.0 (59.4 projected, +0.2) 8.28
2011.11 153.5 96.7 (60.8 projected, +1.4) 5.55
2011.12 141.3 73.0 (63.6 projected, +2.8) 3.78
2012.01 132.5 58.3 (67.1 projected, +3.5) 7.15
2012.02 106.5 33.1 (71.0 projected, +3.9) 8.81
2012.03 115.7 (1) 63.5 (2A) / 75.8 (2B) (73.2 projected, +2.2) (21.78)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
