The geomagnetic field was quiet to active on May 11. Solar wind speed at SOHO ranged between 521 and 568 km/s under the influence of a high speed stream from CH515.
Solar flux measured at 20h UTC on 2.8 GHz was 136.4 (increasing 38.3 over the last solar rotation). The Potsdam WDC planetary A index was 15 (STAR Ap - based on the mean of three hour interval ap indices: 14.8). Three hour interval K indices: 43322322 (planetary), 44332321 (Boulder).
The background x-ray flux is at the class B7 level.
At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).
Region 11475 [N06W39] reemerged with 2 tiny spots.
Region 11476 [N09W09] decayed losing penumbral area and a few spots.
There was a significant reduction in both positive and negative polarity umbral
area in the southern part of the huge penumbra. The region appears less complex
but still has the potential to produce major flares.
Flares: C6.1 at 17:38 UTC and numerous sub C5 level flares.
The region was involved in a significant filament eruption that began after 18h
UTC and included AR 11480 and extended eastwards.
Region 11477 [S23E35] was quiet and stable.
Region 11478 [S24E43] was quiet and stable.
New region 11479 [N14E67] rotated into view at the northeast limb on May
10 and was numbered the next day by SWPC.
New region 11480 [S17W12] emerged in the southeast quadrant on May 8 and
was noticed by SWPC 3 days later. The region decayed on May 11.
Spotted active regions not numbered by NOAA/SWPC:
S1642 [S16E12] decayed slowly and quietly.
New region S1646 [N15E79] rotated into view at the northeast limb.
New region S1647 [N11E35] emerged with two spots.
May 9-10: No obviously Earth directed significant CMEs were observed in STEREO imagery.
May 11: A filament eruption began after 18h UTC and involved a large area
around the center of the disk, including the southern part of AR 11476, AR 11480
and extending towards the east. A CME was observed in STEREO-B at 23:54 UTC and
in STEREO-A a couple of hours later when images resumed. The CME is likely Earth
directed.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A southern hemisphere coronal hole (CH516) was Earth facing on May 9-10.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to unsettled on May 12 and quiet to active on May 13 due to a high speed stream from CH516. The CME observed late on May 11 could reach Earth on May 14 and cause unsettled to minor storm conditions that day and on May 15.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

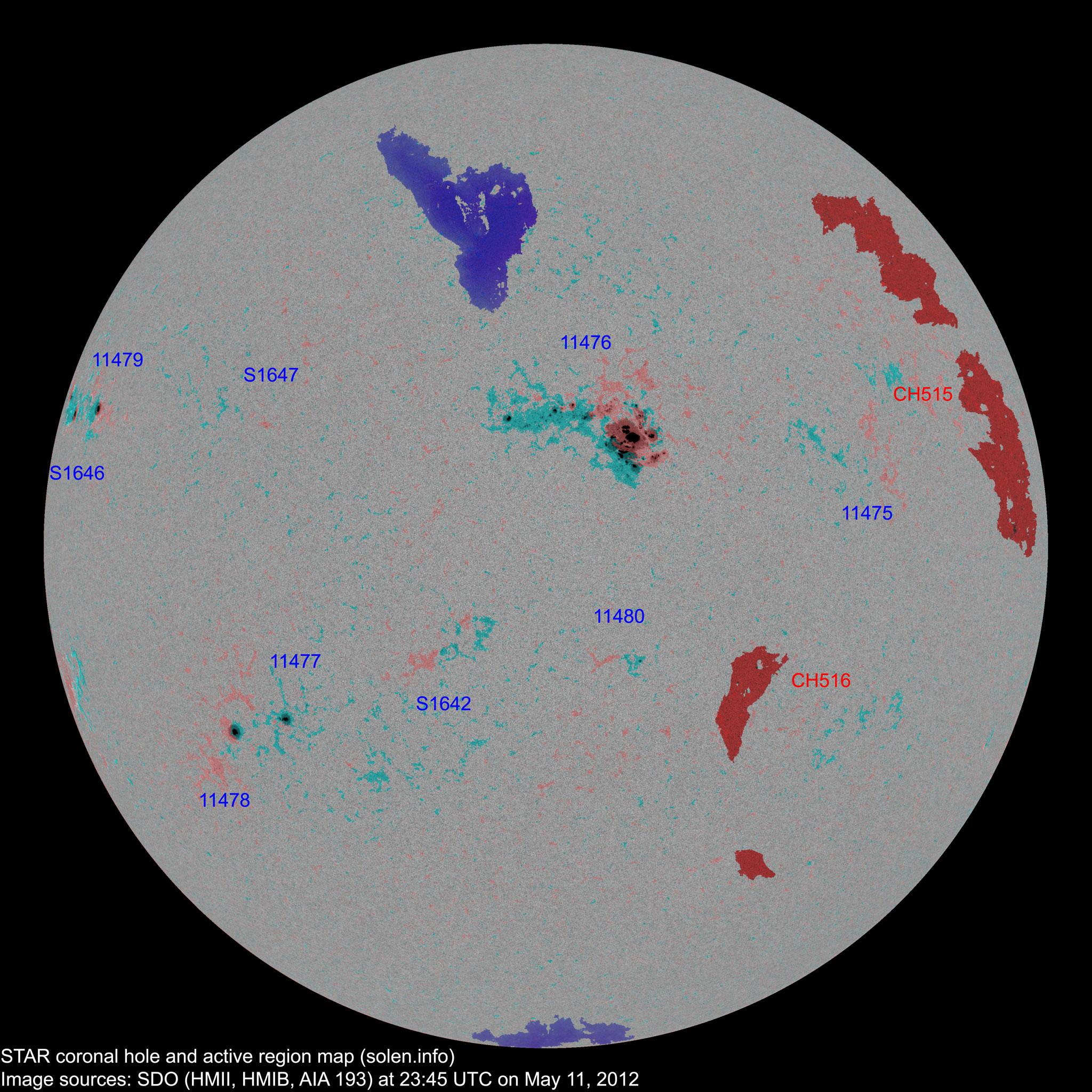

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11474 | 2012.05.01 2012.05.02 |
N16W52 |
plage location: N17W46 |
||||||||
11475 | 2012.05.02 | 2 | 1 | N05W49 | location: N06W39 | ||||||
11476 | 2012.05.04 2012.05.05 |
47 | 122 | 54 | N11W05 | 1040 | FKC | FKC |
beta-gamma-delta area: 1400 location: N09W09 |
||
S1631 | 2012.05.04 | S24W38 | plage | ||||||||
S1633 | 2012.05.06 | N12W27 | plage | ||||||||
11477 | 2012.05.07 2012.05.08 |
1 | 7 | 3 | S22E31 | 0080 | HSX | CSO | location: S23E35 | ||
11478 | 2012.05.08 2012.05.10 |
1 | 5 | 3 | S24E42 | 0060 | HSX | CSO | area: 0120 | ||
11480 | 2012.05.08 2012.05.11 |
2 | 2 | 1 | S16W10 | 0010 | AXX | HRX | |||
S1637 | 2012.05.08 | N23W42 | plage | ||||||||
S1638 | 2012.05.08 | S19W46 | plage | ||||||||
S1639 | 2012.05.08 | S16W57 | plage | ||||||||
S1642 | 2012.05.09 | 4 | S16E12 | 0000 | BXO | ||||||
11479 | 2012.05.10 2012.05.11 |
1 | 2 | 1 | N15E65 | 0090 | HSX | HSX | location: N14E67 | ||
S1645 | 2012.05.10 | S12E09 | plage | ||||||||
S1646 | 2012.05.11 | 2 | 2 | N15E79 | 0100 | DSO | |||||
S1647 | 2012.05.11 | 2 | N11E35 | 0000 | AXX | ||||||
Total spot count: | 52 | 148 | 65 | ||||||||
Sunspot number: | 102 | 238 | 135 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 77 | 181 | 98 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 61 | 83 | 74 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 6.44 |
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | (61.2 projected, +1.3) | 5.55 |
2011.12 | 141.3 | 73.0 | (63.9 projected, +2.7) | 3.78 |
2012.01 | 132.5 | 58.3 | (67.4 projected, +3.5) | 7.15 |
2012.02 | 106.5 | 33.1 | (71.4 projected, +4.0) | 8.81 |
2012.03 | 114.7 | 64.2 | (73.5 projected, +2.1) | 16.08 |
2012.04 | 113.0 | 55.2 | (74.5 projected, +1.0) | 10.10 |
2012.05 | 120.5 (1) | 33.9 (2A) / 95.5 (2B) | (75.8 projected, +1.3) | (10.53) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
