Recent activity

The geomagnetic field was quiet on October 30. Solar wind speed at SOHO ranged between 275 and 298 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 106.3 (decreasing 5.4 over the last solar rotation). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.8). Three hour interval K indices: 20010001 (planetary), 00001110 (Boulder).

The background x-ray flux was at the class B2 level.

At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

Region 11598 [S12W50] decayed slowly and quietly.
Region 11599 [S12W22] was quiet and stable.
Region 11602 [S20E52] was quiet and stable.

Spotted regions not numbered by NOAA/SWPC:
S2015 [S21W33] reemerged with a tiny spot.
S2017
[N16W18] was quiet and stable.
New region S2022 [N03E52] emerged with one spot.
New region S2023 [N08E12] emerged with small spots.
New region S2024 [N34W03] emerged with reversed polarities.

Coronal mass ejections (CMEs)

October 28-30: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
October 27: A sequence of filament eruptions across the equator near AR 11600 began at about 14h UTC and reached its most intense level 2 hours later. A CME was observed in STEREO-B at 16:25 UTC and in STEREO-B when imagery resumed a couple of hours later. This CME is likely to have Earth directed components and could reach Earth on October 31.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small coronal hole (CH543) mostly in the northern hemisphere will likely rotate into an Earth facing position on October 31. the southern part of CH543 is trans equatorial and became better defined on Oct.30. A recurrent coronal hole (CH544) in the southern hemisphere will likely be in an Earth facing position on November 1.

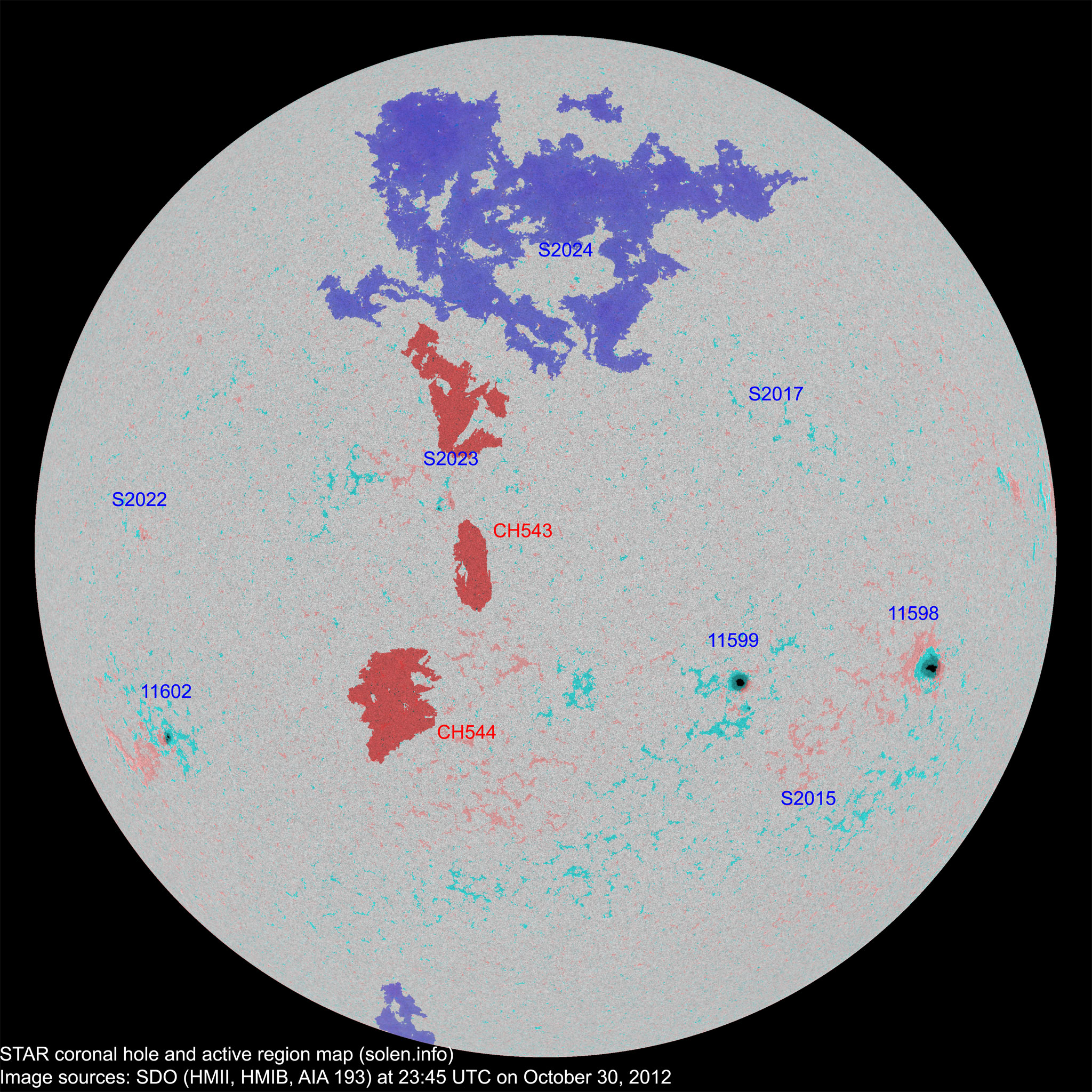

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good to very good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on October 31 due to CME effects. Mostly quiet conditions are likely on November 1-2.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11596 2012.10.17
2012.10.18
1     N08W94 0060 HSX

rotated out of view

11598 2012.10.20 2 4 2 S11W5 0210 HSX CKO

area: 0300

11599 2012.10.22
2012.10.23
1 7 3 S12W23 0100 HSX HSX area: 0180
11600 2012.10.24
2012.10.26
      N09W68         plage
11601 2012.10.25
2012.10.29
1     S10W05 0000 AXX     spotless
S2014 2012.10.27       S02W42
S2015 2012.10.27   1   S21W33 0000   AXX
11602 2012.10.28
2012.10.29
1 3 2 S19E50 0030 HRX HAX location: S20E52

area: 0050

S2017 2012.10.28   1   N15W27 0000   AXX
S2019 2012.10.28       N10W08           plage
S2020 2012.10.29       N11E22         plage
S2021 2012.10.29       N17E09         plage
S2022 2012.10.30   1 1 N03E52 0000   AXX
S2023 2012.10.30   2 2 N08E12 0010   BXO
S2024 2012.10.30   1 1 N34W03 0000   AXX   reversed polarities
Total spot count: 6 20 11
Sunspot number: 56 100 71  (total spot count + 10 * number of spotted regions)
Weighted SN: 24 40 31  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 34 35 39 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 (64.7 projected, -2.1) 10.10
2012.05 121.5 69.0 (61.8 projected, -2.9) 7.06
2012.06 119.6 64.5 (59.9 projected, -1.9) 10.08
2012.07 133.9 66.5 (60.0 projected, +0.1) 13.90
2012.08 115.4 63.1 (62.0 projected, +2.0) 7.96
2012.09 122.9 61.5 (63.6 projected, +1.6) 8.07
2012.10 123.9 (1) 72.8 (2A) / 75.2 (2B) / 51.4 (2C) (63.5 projected, -0.1) (10.58)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
