The geomagnetic field was quiet to unsettled on September 26. Solar wind speed at SOHO ranged between 332 and 423 km/s, most of the day under the influence of a low speed coronal hole stream.
Solar flux measured at 20h UTC on 2.8 GHz was 139.2 (increasing 11.4 over the last solar rotation). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.4). Three hour interval K indices: 11112133 (planetary), 11112232 (Boulder).
The background x-ray flux is at the class B3 level.
At midnight UTC the visible solar disk had 16 spotted active regions (in 2K resolution SDO images).
Region 11573 [N15W71] decayed slowly and quietly.
Region 11575 [N07W32] decayed slowly and quietly.
Region 11576 [S20W23] decayed slowly and quietly.
Region 11577 [N08W13] decayed slowly and quietly.
Region 11578 [N20W17] decayed and could soon become spotless.
Region 11579 [S10E47] decayed slowly and quietly.
Region 11580 [N16E56] was quiet and stable.
Region 11581 [N21W07] decayed slowly and quietly.
New region 11582 [S12E70] rotated into view on September 25 and was
numbered by SWPC the next day.
Spotted regions not numbered by NOAA/SWPC:
S1929 [N07E02] was quiet and stable.
S1936 [N08E14] was quiet and stable.
S1937 [S22E42] was quiet and stable.
S1939 [N09W61] was quiet and stable.
New region S1943 [N18E32] emerged with one spot.
New region S1944 [N17W22] emerged with a few spots.
New region S1945 [N05W76] emerged near the west limb.
September 24-26: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No obvious coronal holes are currently in or near Earth facing positions.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be mostly quiet on September 27-29.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

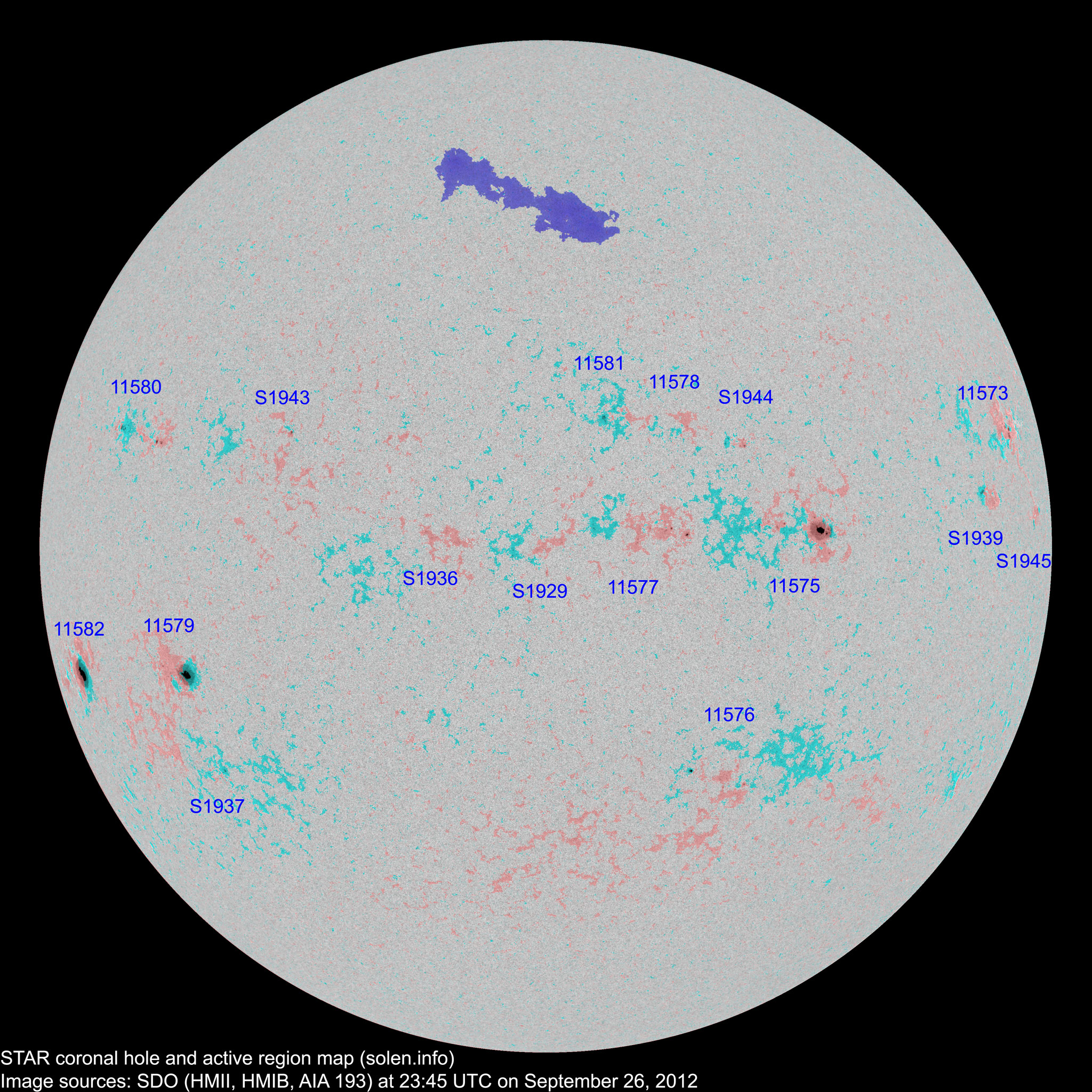

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11573 | 2012.09.15 2012.09.16 |
8 | 7 | 3 | N16W69 | 0070 | CSO | BXO |
 |
 |
|

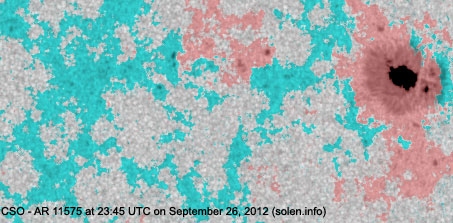

| 11575 | 2012.09.17 2012.09.18 |
7 | 17 | 10 | N08W29 | 0170 | DSO | CSO |
 |
 |
area: 0240 |
| S1924 | 2012.09.17 | S26W58 |
 |
plage | |||||||

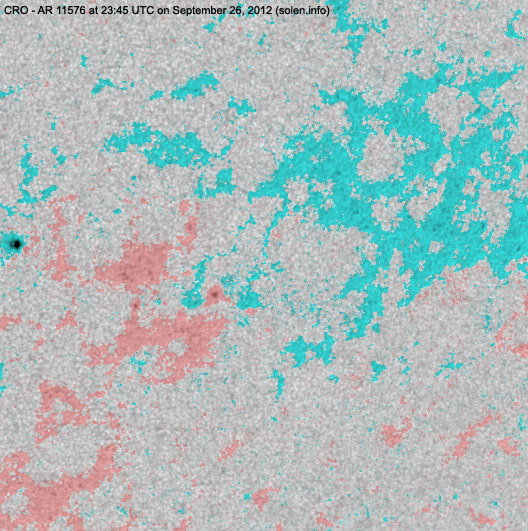

| 11576 | 2012.09.18 2012.09.19 |
2 | 15 | 2 | S20W21 | 0010 | BXO | CRO |
 |
 |
|
| 11581 | 2012.09.19 2012.09.25 |
3 | 9 | 3 | N22W10 | 0030 | CAO | AXX |
 |
 |
location: N21W07 |
| S1929 | 2012.09.21 | 4 | 1 | N07W02 | 0000 | BXO |
 |
 |
|||

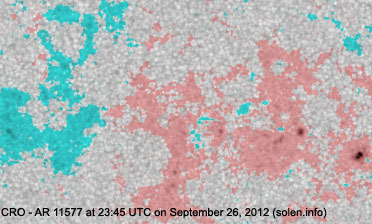

| 11577 | 2012.09.22 | 5 | 9 | 3 | N09W12 | 0040 | DSO | CRO |
 |
 |
|
| S1933 | 2012.09.22 | N18W28 | plage | ||||||||
| S1934 | 2012.09.22 | S17W42 | plage | ||||||||
| 11579 | 2012.09.23 2012.09.24 |
3 | 5 | 3 | S09E45 | 0160 | CSO | CHO |
 |
 |
area: 0280 location: S10E47 |
| S1936 | 2012.09.23 | 1 | N08E14 | 0000 | AXX |
 |
 |
||||
| 11578 | 2012.09.24 | 1 | N21W17 | 0000 | AXX |
 |
 |
||||

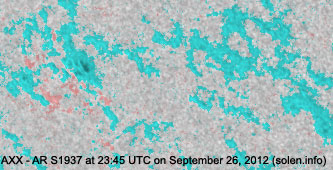

| S1937 | 2012.09.24 | 4 | 1 | S22E42 | 0010 | AXX |
 |
 |
|||
| 11580 | 2012.09.24 2012.09.25 |
4 | 10 | 5 | N17E53 | 0030 | CRO | CRO |
 |
 |
location: N16E56 |
| S1939 | 2012.09.24 | 6 | 1 | N09W61 | 0020 | BXO |
 |
 |
|||
| S1940 | 2012.09.24 | N28W05 | plage | ||||||||
| 11582 | 2012.09.25 2012.09.26 |
1 | 1 | 1 | S12E68 | 0200 | HSX | HHX |
 |
 |
area: 0420 |
| S1942 | 2012.09.25 | S23W73 |
 |
plage | |||||||
| S1943 | 2012.09.26 | 1 | 1 | N18E32 | 0010 | HRX |
 |
||||
| S1944 | 2012.09.26 | 5 | 3 | N17W22 | 0010 | BXO |
 |
||||
| S1945 | 2012.09.26 | 2 | N05W76 | 0000 | BXO |
 |
|||||
| Total spot count: | 33 | 97 | 37 | ||||||||
| Sunspot number: | 113 | 257 | 167 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 66 | 134 | 74 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 68 | 90 | 92 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.05 | 95.8 | 41.5 | 47.6 (+5.8) | 8.94 |
| 2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
| 2011.07 | 94.2 | 43.8 | 57.2 (+4.0) | 8.16 |
| 2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
| 2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
| 2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
| 2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
| 2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
| 2012.01 | 132.5 | 58.3 | 65.5 (+2.1) | 7.15 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 |
| 2012.03 | 114.7 | 64.3 | (67.3 projected, +0.4) | 16.08 |
| 2012.04 | 113.0 | 55.2 | (66.5 projected, -0.8) | 10.10 |
| 2012.05 | 121.5 | 69.0 | (64.4 projected, -2.1) | 7.06 |
| 2012.06 | 119.6 | 64.5 | (63.6 projected, -0.8) | 10.08 |
| 2012.07 | 133.9 | 66.5 | (64.6 projected, +1.0) | 13.90 |
| 2012.08 | 115.4 | 63.1 | (67.2 projected, +2.6) | 7.96 |
| 2012.09 | 120.9 (1) | 72.4 (2A) / 83.5 (2B) / 61.7 (2C) | (70.0 projected, +2.8) | (9.11) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date. 2C) STAR SDO 1K Wolf number month to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
