The geomagnetic field was quiet to active on June 24. Solar wind speed at SOHO ranged between 472 and 570 km/s under the inlfuence of a high speed stream from CH573.
Solar flux measured at 20h UTC on 2.8 GHz was 120.6 (increasing 15.8 over the last solar rotation). The Potsdam WDC planetary A index was 13 (STAR Ap - based on the mean of three hour interval ap indices: 13.4). Three hour interval K indices: 33223343 (planetary), 23233333 (Boulder).
The background x-ray flux was at the class B3 level.
At midnight UTC the visible solar disk had 15 spotted active regions (in 2K resolution SDO images).
Region 11770 [S14W76] decayed slowly and quietly.
Region 11772 [S22W74] decayed further and was quiet.
Region 11773 [N04W56] was quiet and stable.
Region 11774 [S16W64] decayed slowly and quietly.
Region 11775 [S26W43] decayed slowly and was mostly quiet.
Region 11776 [N10W75] decayed slowly and quietly.
Region 11777 [S17E17] decayed slowly and quietly.
Region 11778 [S18E50] decayed slowly and has polarity intermixing. C5+ flare: impulsive
C9.9/1N at 11:32 UTC.
Spotted regions not numbered by SWPC:
S2492 [N10W30] decayed slowly and quietly.
S2498 [N15E47] decayed slowly and quietly.
S2500 [N14W05] was quiet and stable.
S2501 [S22W26] decayed slowly and quietly.
New region S2502 [S06E52] emerged with a penumbra spot.
New region S2503 [N16E68] emerged with penumbra spots.
New region S2504 [N17E34] emerged with a penumbra spot.
June 22-24: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A large northern hemisphere coronal hole (CH573) was in a geoeffective position on June 17-22. A recurrent trans equatorial coronal hole (CH574] will rotate into an Earth facing position on June 25-26.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to active on June 25 due to a high speed stream from CH573. Quiet to unsettled is likely on June 26-27 becoming quiet to minor storm on June 28-29 as a high speed stream from CH574 becomes the dominant solar wind source.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

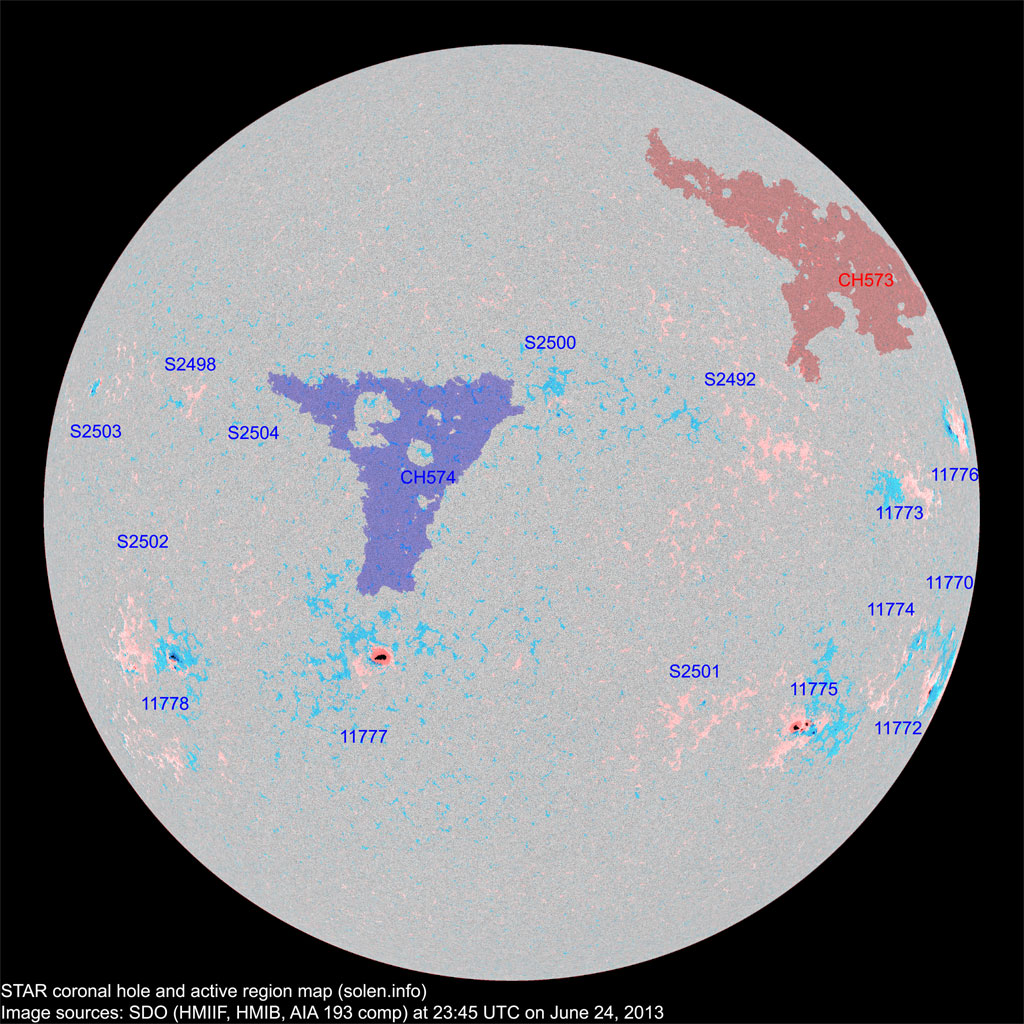

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11770 | 2013.06.12 2013.06.13 |
1 | S15W77 | 0003 | AXX |
 |
 |
||||
| 11769 | 2013.06.12 2013.06.13 |
S22W87 | merged with AR 11772 | ||||||||
| 11772 | 2013.06.13 2013.06.14 |
1 | 2 | 1 | S22W78 | 0100 | HAX | HAX |
 |
 |
|
| 11771 | 2013.06.13 2013.06.14 |
S15W70 | plage | ||||||||
| 11773 | 2013.06.14 2013.06.15 |
1 | N04W62 | 0001 | AXX |
 |
 |
location: N04W56 | |||
| 11774 | 2013.06.14 2013.06.15 |
4 | 5 | 1 | S17W64 | 0040 | CAO | BXO |
 |
 |
area: 0015 |
| 11775 | 2013.06.14 2013.06.15 |
7 | 11 | 6 | S26W45 | 0220 | DSC | DSO |
 |
 |
|
| S2482 | 2013.06.15 | S21W37 |
 |
plage | |||||||
| 11776 | 2013.06.18 | 4 | 8 | 4 | N11W76 | 0130 | DSO | DAO |
 |
 |
|
| S2490 | 2013.06.19 | S16W01 |
 |
plage | |||||||
| 11777 | 2013.06.19 2013.06.20 |
2 | 6 | 2 | S15E16 | 0170 | HSX | CSO |
 |
 |
area: 0230 |
| S2492 | 2013.06.20 | 2 | N10W30 | 0003 | BXO |
 |
images/AR_S2492_20130623_2345.jpg | ||||
| S2493 | 2013.06.20 | N20W52 | |||||||||
| S2496 | 2013.06.21 | N02W35 | plage | ||||||||
| S2497 | 2013.06.21 | N14W39 |
 |
plage | |||||||
| 11778 | 2013.06.22 | 4 | 21 | 6 | S16E49 | 0080 | CAO | CAO |
 |
 |
beta-gamma |
| S2498 | 2013.06.22 | 1 | N15E47 | 0002 | AXX |
 |
 |
||||
| S2500 | 2013.06.23 | 3 | 1 | N14W05 | 0010 | AXX |
 |
 |
|||
| S2501 | 2013.06.23 | 2 | 1 | S22W26 | 0009 | BXO |
 |
 |
|||
| S2502 | 2013.06.24 | 1 | S06E52 | 0002 | AXX |
 |
|||||
| S2503 | 2013.06.24 | 2 | 2 | N16E68 | 0016 | BXO |
 |
||||
| S2504 | 2013.06.24 | 1 | N17E34 | 0001 | AXX |
 |
|||||
| Total spot count: | 22 | 67 | 25 | ||||||||
| Sunspot number: | 82 | 217 | 125 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 52 | 92 | 49 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 49 | 76 | 63 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
| 2012.03 | 114.7 | 64.3 | 66.8 (-0.1) | 16.08 |
| 2012.04 | 113.0 | 55.2 | 64.6 (-2.2) | 10.10 |
| 2012.05 | 121.5 | 69.0 | 61.7 (-2.9) | 7.06 |
| 2012.06 | 119.6 | 64.5 | 58.9 (-2.8) | 10.08 |
| 2012.07 | 133.9 | 66.5 | 57.7 (-1.2) | 13.90 |
| 2012.08 | 115.4 | 63.0 | 58.1 (+0.4) | 7.96 |
| 2012.09 | 122.9 | 61.4 | 58.1 (-0.0) | 8.07 |
| 2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
| 2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 40.8 | (59.5 projected, -0.2) | 3.44 |
| 2013.01 | 127.1 | 62.9 | (59.1 projected, -0.4) | 4.69 |
| 2013.02 | 104.3 | 38.0 | (59.3 projected, +0.2) | 6.11 |
| 2013.03 | 111.3 | 57.9 | (58.9 projected, -0.4) | 10.56 |
| 2013.04 | 124.8 | 72.4 | (58.6 projected, -0.3) | 5.40 |
| 2013.05 | 131.4 | 78.7 | (58.7 projected, +0.1) | 9.73 |
| 2013.06 | 110.7 (1) | 57.4 (2A) / 78.3 (2B) / 51.0 (2C) | (59.0 projected, +0.3) | (10.98) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
