Recent activity

The geomagnetic field was very quiet on March 26. Solar wind speed at SOHO ranged between 335 and 413 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 92.4 (decreasing 13.1 over the last solar rotation). The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.0). Three hour interval K indices: 11000000 (planetary), 11011211 (Boulder).

The background x-ray flux was at the class B1 level.

At midnight UTC the visible solar disk had 5 spotted active regions (in 2K resolution SDO images).

Region 11704 [N16E33] was quiet and stable.
Region 11705 [S12E07] decayed slowly and quietly.

Spotted regions not numbered by SWPC:
S2310 [S22W11] reemerged with penumbra spots.
New region S2315 [S07E19] emerged with penumbra spots.
New region S2316 [S33E18] emerged with several spots.

Coronal mass ejections (CMEs)

March 24-26: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH562) will be in an Earth facing position on March 25-27. A recurrent northern hemisphere coronal hole (CH563) could rotate into an Earth facing position on March 28.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on March 27. A high speed stream from CH562 could cause quiet to active conditions on March 28-30.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

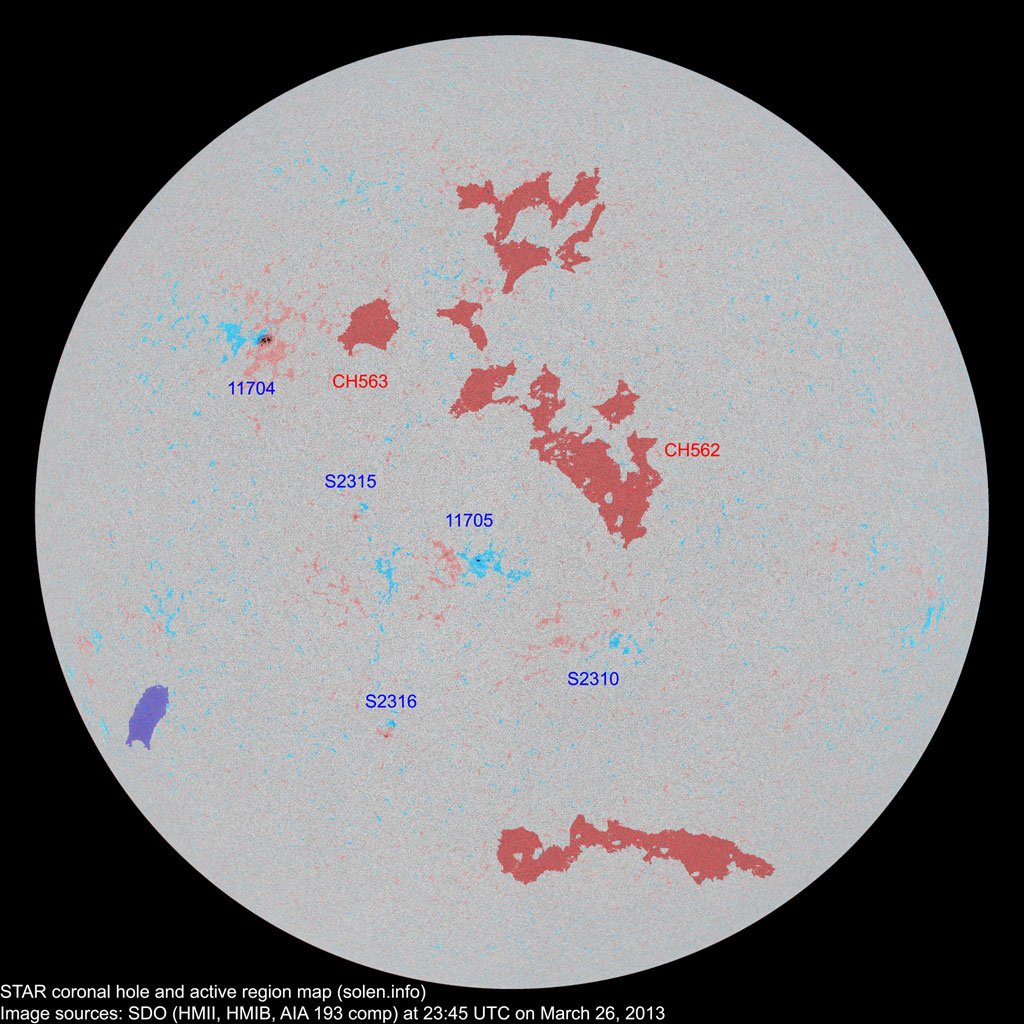

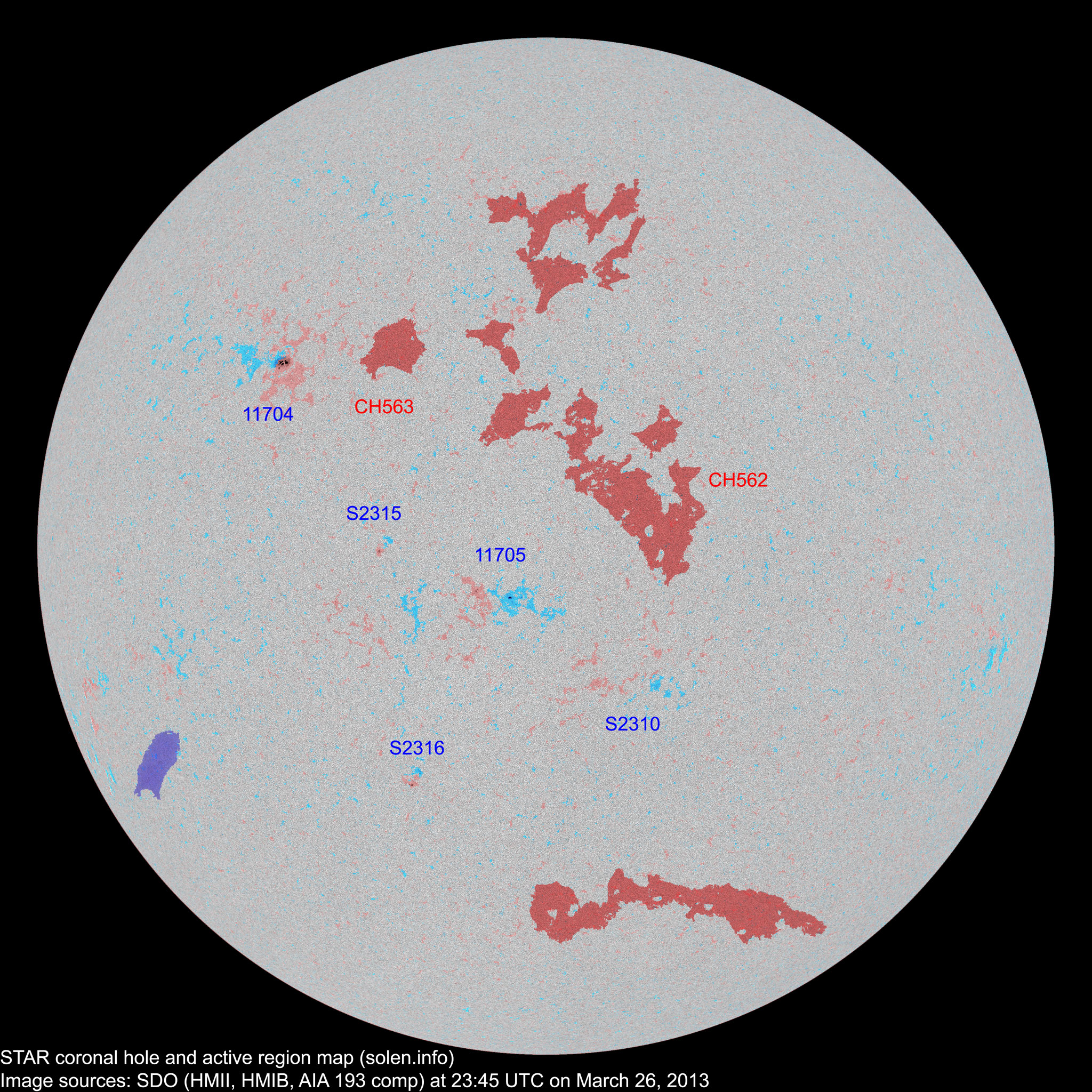

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count			Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	STAR SDO				SWPC	STAR	Current	Previous
			2K	1K
11700	2013.03.15 2013.03.17				S13W71						plage
11702	2013.03.20 2013.03.21	4			N08W88	0040	CAO				rotated out of view
S2310	2013.03.22		3		S22W11	0005		BXO
S2311	2013.03.22				S10W47						plage
11704	2013.03.23	4	7	4	N16E33	0070	HAX	CAO			area: 0090
S2312	2013.03.23				N30W51						plage
11705	2013.03.24 2013.03.25	3	5	3	S12E07	0030	CAO	CRO
S2314	2013.03.25				S18E67						plage
S2315	2013.03.26		2	1	S07E19	0012		AXX
S2316	2013.03.26		6	1	S33E18	0020		CRO
Total spot count:		11	23	9
Sunspot number:		41	73	49	(total spot count + 10 * number of spotted regions)
Weighted SN:		26	34	20	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		25	26	27	k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
