The geomagnetic field was quiet to unsettled on May 17. Solar wind speed at SOHO ranged between 346 and 476 km/s. A CME, probably associated with the X1 event on May 15, was observed arriving at SOHO at 00:23 UTC on May 18. This is causing active to major geomagnetic storm conditions.
Solar flux measured at 20h UTC on 2.8 GHz was 136.4 (increasing 31.5 over the last solar rotation). The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.9). Three hour interval K indices: 22111232 (planetary), 23222322 (Boulder).
The background x-ray flux was at the class B6 level.
At midnight UTC the visible solar disk had 13 spotted active regions (in 2K resolution SDO images).
Region 11743 [N21W53] decayed slowly and quietly.
Region 11744 [N05W38] decayed slowly losing spots and penumbral area. The
region still has minor polarity intermixing. C5+ flares:
C5.0 at 04:41 UTC.
Region 11745 [N12W12] decayed slowly and quietly.
Region 11746 [S29W12] decayed slowly and was quiet.
Region 11747 [S19W16] decayed slowly and quietly.
Region 11748 [N10E25] has a magnetic delta structure in the leading
penumbral structure and could produce further M class events, an X class event
may still be possible. The positive polarity area in the leading penumbra is
moving slowly southwards as compared to the negative polarity area in the
eastern part of the penumbra. If this development continues the delta could
disappear within a couple of days. The region has decayed losing both spots and
penumbral area. C5+ flares: M3.2/2B at 08:57 UTC.
This event was associated with a fast asymmetric full halo CME.
Region 11749 [S23W64] decayed slowly and quietly.
Region 11750 [S10W41] developed slowly and quietly. The region has slight
polarity intermixing and C flares are possible.
Region 11751 [S25W00] decayed and could soon become spotless.
Region 11752 [N17W37] added penumbral area with a minor reduction in spot
number.
Spotted regions not numbered by SWPC:
S2420 [S13W25] was quiet and stable.
S2424 [S29E14] was quiet and stable.
New region S2425 [S14W14] emerged with one spot.
May 15: A wide CME was observed after the X1 event in AR 11748.
May 16: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
May 17: A halo CME was observed after an M3 event in AR 11748. The CME
was fast and will likely reach Earth on May 19.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No obvious coronal holes are currently in or near Earth facing positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be unsettled to major storm on May 18-20 due to CME effects.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

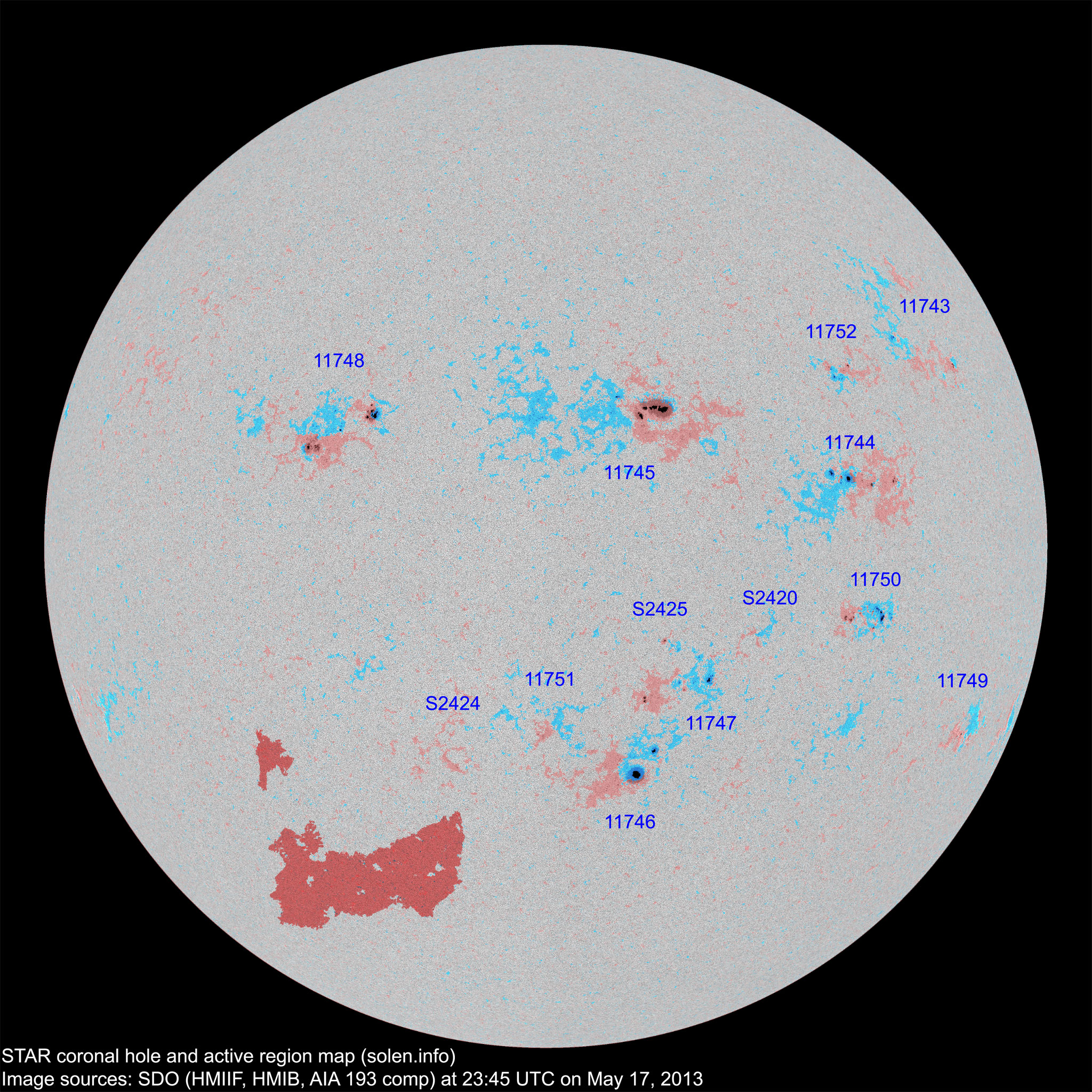

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11741 | 2013.05.05 2013.05.06 |
S21W85 |
plage |
||||||||
11742 | 2013.05.07 2013.05.09 |
N28W59 | plage | ||||||||
11743 | 2013.05.08 2013.05.09 |
2 | 6 | 2 | N22W53 | 0030 | DAO | CRO |
|
||
11744 | 2013.05.08 2013.05.09 |
23 | 18 | 7 | N06W40 | 0100 | DAO | DAI |
beta-gamma |
||
11745 | 2013.05.10 | 10 | 30 | 10 | N13W15 | 0300 | CKO | DAO |
location: N12W12 |
||
11746 | 2013.05.10 2013.05.11 |
7 | 12 | 4 | S27W14 | 0160 | CSO | CSO |
area: 0220 location: S29W12 |
||
11747 | 2013.05.12 | 10 | 15 | 8 | S17W17 | 0080 | DAO | DRO | location: S19W16 | ||
11751 | 2013.05.12 2013.05.15 |
2 | 2 | 2 | S23W01 | 0000 | AXX | AXX | area: 0008 | ||
S2412 | 2013.05.12 | S44W38 | plage | ||||||||
11748 | 2013.05.13 | 24 | 30 | 15 | N12E23 | 0220 | DAI | DAO |
beta-gamma-delta location: N10E25 |
||
S2414 | 2013.05.13 | N20W40 | plage | ||||||||
S2415 | 2013.05.13 | S24W39 | plage | ||||||||
11749 | 2013.05.13 2013.05.15 |
4 | 3 | 1 | S22W66 | 0030 | CRO | BXO | area: 0010 | ||
11750 | 2013.05.14 2013.05.15 |
9 | 18 | 13 | S09W41 | 0050 | CAO | DAI |
beta-gamma area: 0030 |
||
S2418 | 2013.05.14 | S43W22 | plage | ||||||||
S2419 | 2013.05.14 | S17E24 | plage | ||||||||
S2420 | 2013.05.15 | 1 | 1 | S13W25 | 0003 | AXX | |||||
S2421 | 2013.05.15 | S17W29 | plage | ||||||||
S2422 | 2013.05.15 | S17W44 | plage | ||||||||
11752 | 2013.05.15 2013.05.16 |
7 | 11 | 6 | N18W40 | 0020 | CRO | DRO |
location: N17W38 |
||
S2424 | 2013.05.16 | 2 | S29E14 | 0005 | AXX | ||||||
S2425 | 2013.05.17 | 1 | 1 | S14W14 | 0006 | AXX | |||||
Total spot count: | 98 | 149 | 70 | ||||||||
Sunspot number: | 198 | 279 | 190 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 144 | 183 | 104 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 119 | 98 | 105 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2011.11 | 153.5 (cycle max) | 96.7 (cycle max) | 61.1 (+1.2) | 5.55 |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
2012.03 | 114.7 | 64.3 | 66.8 (-0.1) | 16.08 |
2012.04 | 113.0 | 55.2 | 64.6 (-2.2) | 10.10 |
2012.05 | 121.5 | 69.0 | 61.7 (-2.9) | 7.06 |
2012.06 | 119.6 | 64.5 | 58.9 (-2.8) | 10.08 |
2012.07 | 133.9 | 66.5 | 57.7 (-1.2) | 13.90 |
2012.08 | 115.4 | 63.0 | 58.1 (+0.4) | 7.96 |
2012.09 | 122.9 | 61.4 | 58.1 (-0.0) | 8.07 |
2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
2012.11 | 121.3 | 61.8 | (59.1 projected, +0.5) | 7.08 |
2012.12 | 108.6 | 40.8 | (58.4 projected, -0.7) | 3.44 |
2013.01 | 127.1 | 62.9 | (58.0 projected, -0.4) | 4.69 |
2013.02 | 104.3 | 38.0 | (58.2 projected, +0.5) | 6.11 |
2013.03 | 111.3 | 57.9 | (57.8 projected, -0.4) | 10.56 |
2013.04 | 124.8 | 72.4 | (57.4 projected, -0.4) | 5.40 |
2013.05 | 140.6 (1) | 81.2 (2A) / 148.1 (2B) / 79.9 (2C) | (57.5 projected, +0.1) | (7.48) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
