The geomagnetic field was very quiet on October 25. Solar wind speed at SOHO ranged between 279 and 413 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 161.4 (increasing 55.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 115.5. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.4). Three hour interval K indices: 00100101 (planetary), 01001211 (Boulder).
The background x-ray flux was at the class C1 level.
At the time of counting spots (see image time) spots were observed in 11 active regions in 2K resolution (SN: 266) and 9 active regions in 1K resolution (SN: 161) SDO images on the visible solar disk.
Region 11872 [S17W63] decayed slowly and quietly.
Region 11873 [N12W63] was quiet and stable.
Region 11875 [N06W38] produced a few low level C flares and decayed
quickly in the trailing spot section. There is still a magnetic delta structure in the trailing
spot section and a major flare is possible.
Region 11877 [S12W16] was mostly unchanged and quiet. There's a weak
magnetic delta structure in a penumbra to the northwest of the main penumbra. M
class flares are posssible.
Region 11879 [S12W02] matured and was quiet.
Region 11881 [S22E22] gained a few spots and was quiet.
Region 11882 [S09E63] was very active during the day and has a strong
magnetic delta structure in the main penumbra. Further major flares are likely
as long as the delta structure persists.
C5+ flares: M2.9 at 03:02, X1.7 at 08:01 (associated
with a faint asymmetric halo CME), M1.0 at 10:12, C7.9 at 14:38, X2.1 at 15:03 (associated
with an asymmetric full halo CME), M1.3 at 17:09, M2.3 at 19:21, M1.9/1N at
20:58 UTC.
Spotted regions not numbered by SWPC:
S2753 [N19W83] was quiet and stable.
S2774 [S16W72] was quiet and stable.
S2776 [N13E05] was quiet and stable.
New region S2781 [N26E48] emerged with a penumbra spot.
October 23: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
October 24: A faint halo CME was observed after the M9 event in AR 11877
early in the day.
October 25: A faint asymmetric halo CME was observed after the X1.7 event
at 08h while a significantly larger full halo asymmetric CME was observed after
the X2.1 flare near 15h. The latter CME will likely reach Earth on October 27.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
No obvious coronal holes are currently in or near Earth facing positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to unsettled on October 26. On October 27 unsettled to major storm conditions are possible due to effects from the CMEs observed on October 24 and 25.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

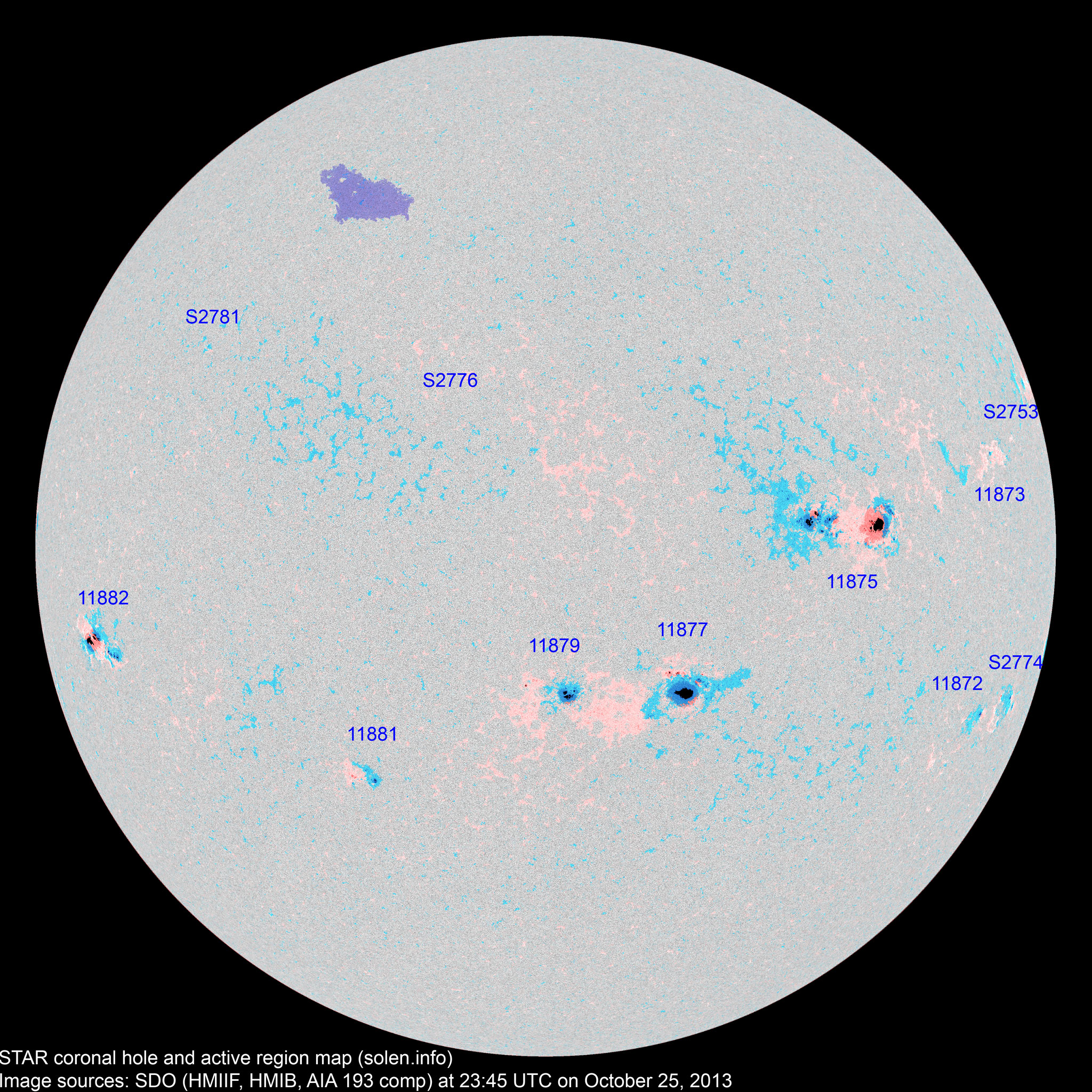

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11869 | 2013.10.12 2013.10.13 |
1 | N18W84 | 0000 | AXX |
plage location: N20W95 SWPC had moved this region to the location of AR S2753 |
|||||
S2753 | 2013.10.13 | 2 | N19W83 | 0010 | AXX | ||||||
11872 | 2013.10.14 2013.10.15 |
4 | 2 | 1 | S18W67 | 0050 | CSO | HRX |
area: 0015 location: S17W63 |
||
11873 | 2013.10.14 2013.10.16 |
1 | 1 | N11W61 | 0007 | AXX | |||||
11874 | 2013.10.16 2013.10.17 |
S11W89 | plage | ||||||||
11875 | 2013.10.16 2013.10.17 |

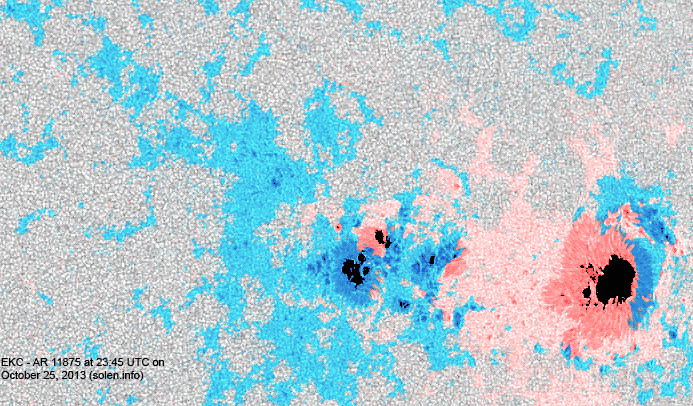

39 | 70 | 29 | N07W36 | 0660 | EKC | EKC |
beta-gamma-delta area: 0850 location: N06W38 |
||
S2767 | 2013.10.17 | S05W51 | plage | ||||||||

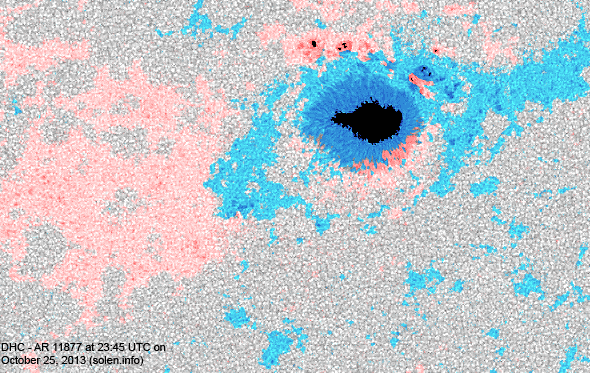

11877 | 2013.10.18 | 16 | 37 | 17 | S12W16 | 0390 | DHI | DHC |
beta-gamma-delta area: 0500 |
||
S2769 | 2013.10.18 | N18W35 | plage | ||||||||
11879 | 2013.10.21 | 11 | 14 | 8 | S13W03 | 0110 | CAI | DAO |
area: 0160 |
||
11880 | 2013.10.21 | N12W72 | plage | ||||||||
S2774 | 2013.10.22 | 4 | 2 | S16W72 | 0022 | CRO | |||||
11881 | 2013.10.22 2013.10.24 |
2 | 11 | 4 | S22E21 | 0010 | BXO | CRO | area: 0040 | ||

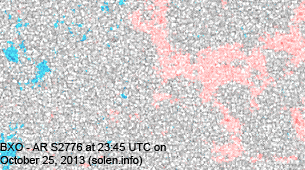

S2776 | 2013.10.22 | 4 | N13E05 | 0013 | BXO | ||||||
S2777 | 2013.10.22 | N35W07 | plage | ||||||||
11882 | 2013.10.23 2013.10.24 |
5 | 10 | 8 | S08E59 | 0280 | DKO | DKC |
area: 0370 location: S09E63 |
||
S2779 | 2013.10.23 | S20W37 | plage | ||||||||
S2780 | 2013.10.24 | S10E33 | plage | ||||||||
S2781 | 2013.10.25 | 1 | 1 | N26E48 | 0004 | AXX | |||||
Total spot count: | 78 | 156 | 71 | ||||||||
Sunspot number: | 148 | 266 | 161 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 118 | 200 | 115 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 89 | 93 | 89 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) likely cycle 24 max |
8.81 |
2012.06 | 119.6 | 64.5 | 58.9 (-2.8) | 10.08 |
2012.07 | 133.9 | 66.5 | 57.8 (-1.1) | 13.90 |
2012.08 | 115.4 | 63.0 | 58.2 (+0.4) | 7.96 |
2012.09 | 122.9 | 61.4 | 58.1 (-0.1) | 8.07 |
2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
2012.12 | 108.6 | 40.8 | 59.6 (-0.1) | 3.44 |
2013.01 | 127.1 | 62.9 | 58.7 (-0.9) | 4.69 |
2013.02 | 104.3 | 38.0 | 58.4 (-0.3) | 6.11 |
2013.03 | 111.3 | 57.9 | 57.5 (-0.9) | 10.56 |
2013.04 | 124.8 | 72.4 | (56.2 projected, -1.3) | 5.40 |
2013.05 | 131.4 | 78.7 | (55.8 projected, -0.4) | 9.73 |
2013.06 | 110.1 | 52.5 | (56.0 projected, +0.2) | 12.60 |
2013.07 | 115.5 | 57.0 | (56.1 projected, +0.1) | 9.47 |
2013.08 | 114.6 | 66.0 | (55.9 projected, -0.2) | 8.27 |
2013.09 | 102.6 | 36.9 | (55.4 projected, -0.5) | 5.23 |
2013.10 | 126.8 (1) | 96.1 (2A) / 119.2 (2B) / 69.3 (2C) | (53.9 projected, -1.5) | (8.40) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
