The geomagnetic field was quiet to unsettled on April 29. Solar wind speed at SOHO ranged between 271 and 291 km/s. An unexpected disturbance embedded within the low speed solar wind caused unsettled to active conditions late in the day and early on April 30.
Solar flux at 20h UTC on 2.8 GHz was 120.1 (decreasing 34.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 153.3. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.4). Three hour interval K indices: 10001013 (planetary), 10012224 (Boulder).
The background x-ray flux is at the class B2 level.
At the time of counting spots (see image time), spots were observed in 8 active regions in 2K resolution (SN: 147) and 5 active regions in 1K resolution (SN: 81) SDO images on the visible solar disk.

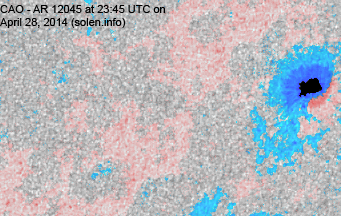

Region 12045 [S23W53] was quiet and stable.
Region 12047 [S17E16] developed slowly and quietly.
Region 12048 [N20W64] lost spots and was mostly quiet.
Region 12049 [S07E48] developed slowly and was quiet. An M class flare is possible.
Region 12050 [N12E48] gained a few penumbra spots.
Spotted regions not numbered (or interpreted differently) by SWPC:

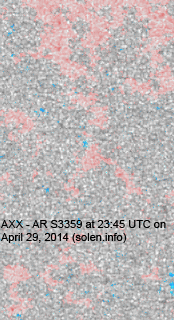

S3359 [S30W02] reemerged with penumbra spots.
S3366 [N09W23] was quiet and stable.

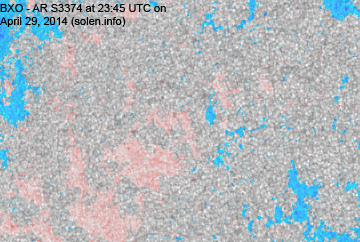

S3374 [S10E36] was quiet and stable.
A filament eruption began late in the day to the east of AR 12047. LASCO imagery indicate that at least a partial halo CME was associated with this event, there is a chance the CME could reach Earth on May 3.
April 27-29: No obviously Earth directed CMEs were observed in LASCO and
April 30: A CME (likely associated with a filament eruption to the east of AR 12047) was observed early in the day.
Coronal hole history (since October
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are currently in or near potentially geoeffective positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on April 30 and quiet on May 1-2. A CME could reach Earth early on May 3 and cause unsettled intervals.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

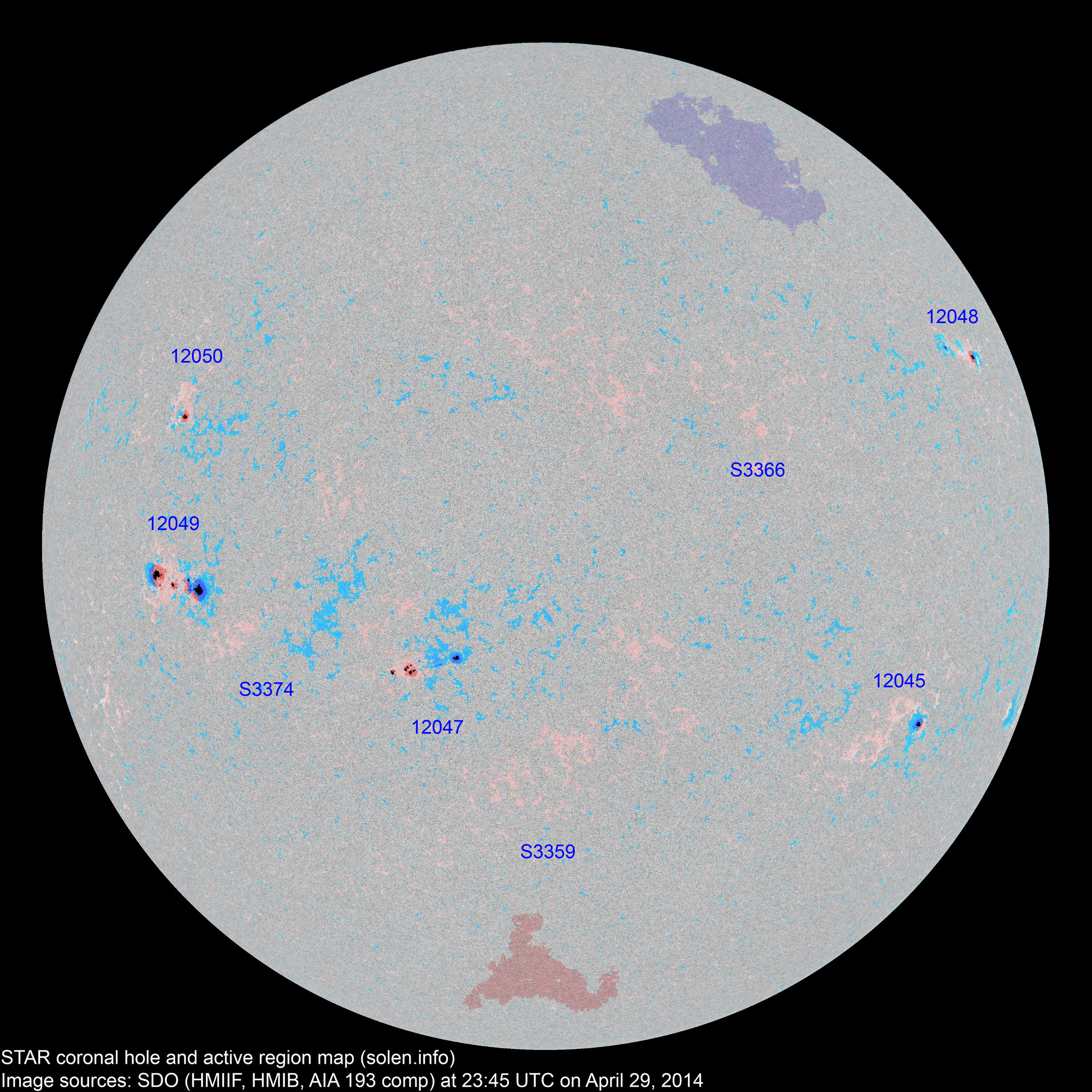

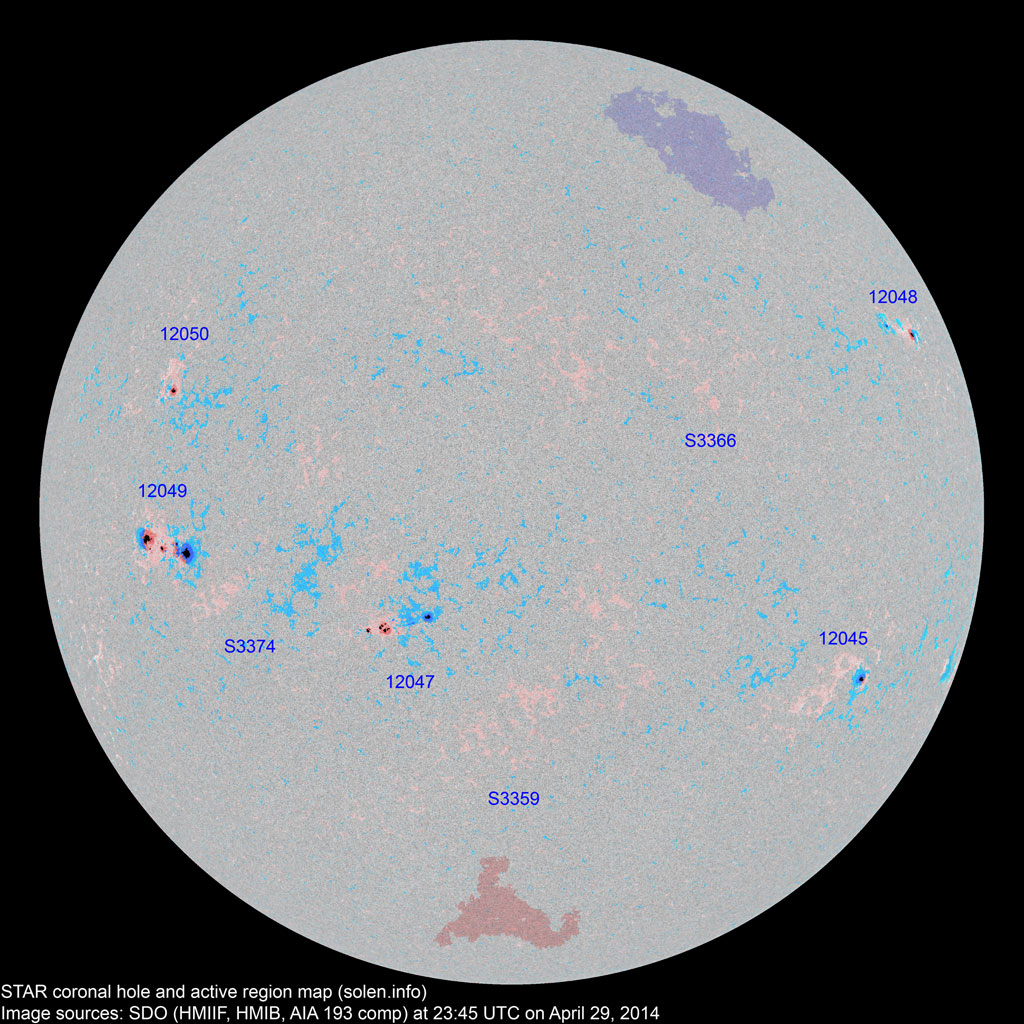

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
|Total spot count:||30||67||31|
|Sunspot number:||80||147||81||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||60||97||61||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||48||51||45||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average ap
|2013.10||132.1||131.2||85.6||(75.3 projected, +2.1)||7.71|
|2013.11||148.3||145.1||77.6||(76.3 projected, +1.0)||5.68|
|2013.12||147.7||143.1||90.3||(77.3 projected, +1.0)||4.68|
|2014.01||157.4||152.4||82.0||(78.3 projected, +1.0)||5.44|
|166.3||102.8 (cycle peak)||(78.1 projected, -0.2)||10.70|
|2014.03||149.9||148.5||92.2||(78.5 projected, +0.4)||4.88|
|2014.04||144.6 (1)||126.3 (2A) / 130.7 (2B) / 97.6 (2C)||(77.7 projected, -0.8)||(7.6)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
