Recent activity

The geomagnetic field was very quiet on August 26. Solar wind speed at SOHO ranged between 275 and 330 km/s. Solar wind density increased significantly late in the day. While there was no solar wind shock, this was likely related to the arrival of a magnetic cloud (possibly CME related) early on August 27.

Solar flux at 20h UTC on 2.8 GHz was 128 (decreasing 23.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 131.6. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.8). Three hour interval K indices: 00011111 (planetary), 00022222 (Boulder).

The background x-ray flux is at the class B5 level.

At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 195) and 8 active regions using 1K resolution (SN: 124) SDO images on the visible solar disk.

Region 12146 [N08W56] lost penumbral area, however, the region still has a significant magnetic delta structure and remains capable of producing a major flare.
Region 12147 [S10W41] was quiet and stable.
Region 12148 [N08W36] decayed slowly and quietly.
Region 12149 [N10E06] lost spots. There is still some polarity intermixing and a slight chance of a minor M class flare.
Region 12150 [S13E21] lost some penumbral area and was quiet.
Region 12151 [S07E34] was mostly quiet and unchanged.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S3765 [N13E54] emerged with a small spot.
New region S3766 [S11E57] emerged with a penumbra spot.
New region S3767 [S16E83] rotated partly into view.
New region S3768 [N18E24] was observed with penumbra spots.
New region S3769 [S14E02] emerged with penumbra spots.

C2+ Flares (GOES):

Coronal mass ejections (CMEs)

August 24: A wide CME was observed after the M5 event in AR 12151.
August 25: A full halo CME was observed after the M2 flare in AR 12146. The CME will likely reach Earth on August 28.
August 26: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH632) will rotate into an Earth facing position on August 27-29.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to minor storm on August 27. On August 28 a CME will likely arrive and could cause unsettled to minor storm conditions that day and on August 29. A high speed stream from CH632 could arrive on August 30 and cause quiet to active conditions.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

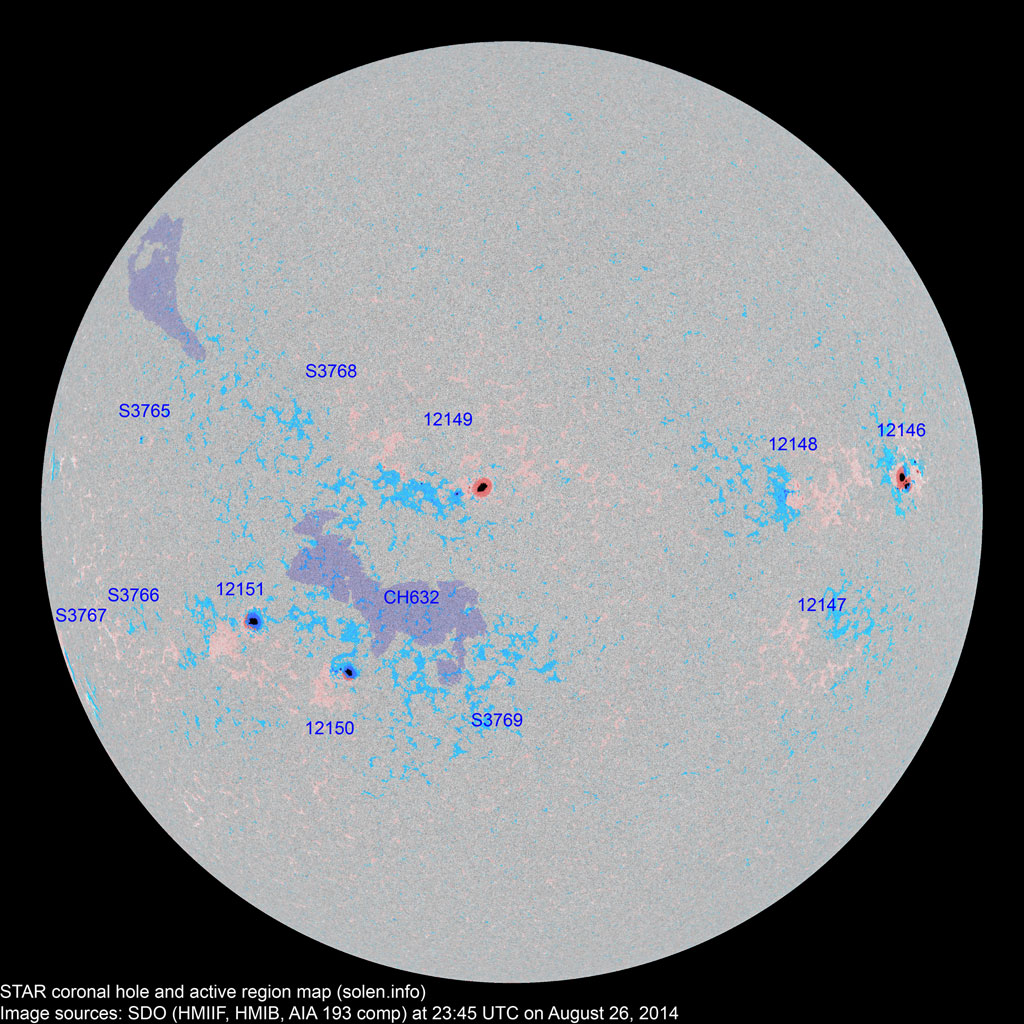

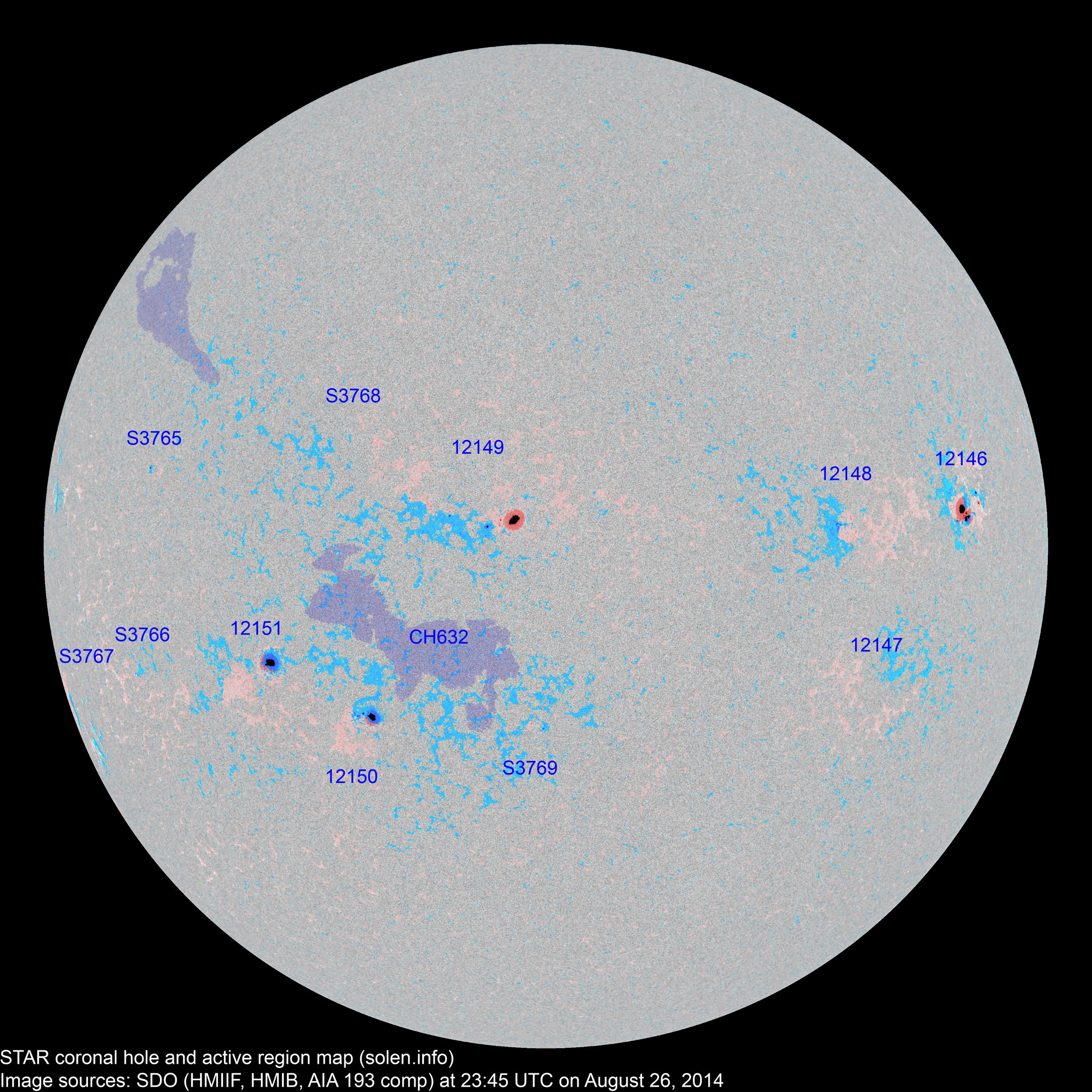

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count			Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	Magnetic (SDO)				SWPC	STAR	Current	Previous
			2K	1K
12146	2014.08.16	9	13	8	N07W58	0300	DKI	DKC			beta-delta location: N08W56
12147	2014.08.17		2	1	S08W52	0005		BXO			location: S10W41
12148	2014.08.19 2014.08.20	4	19	11	N02W39	0010	BXO	BXI			area: 0040 location: N08W36
12149	2014.08.21	16	27	13	N10E08	0190	EAI	DHI			beta-gamma location: N10E06 area: 0290
12150	2014.08.22	1	8	5	S14E19	0100	HSX	CAO			area: 0180 location: S13E21
12151	2014.08.22 2014.08.23	1	6	3	S08E32	0110	HSX	CSO			area: 0230 location: S07E34
S3760	2014.08.23				S16W42						plage
S3762	2014.08.24				N18W59						plage
S3763	2014.08.25				N13W06						plage
S3764	2014.08.25				N03E26						plage
S3765	2014.08.26		1	1	N13E54	0006		HRX
S3766	2014.08.26		1		S11E57	0002		AXX
S3767	2014.08.26		1		S16E83	0020		AXX
S3768	2014.08.26		2		N18E24	0005		AXX
S3769	2014.08.26		5	2	S14E02	0012		BXO
Total spot count:		31	85	44
Sunspot number:		81	195	124	(total spot count + 10 * number of spotted regions)
Weighted SN:		56	118	77	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		49	68	68	k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
