The geomagnetic field was quiet to unsettled on December 2. Solar wind speed at SOHO ranged between 446 and 603 km/s under the influence of weak CME effects.
Solar flux at 20h UTC on 2.8 GHz was 167.7 (increasing 32.0 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 151.6 - the highest since May 2, 2014). The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.4). Three hour interval K indices: 33313231 (planetary), 23323232 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 282) and 10 active regions using 1K resolution (SN: 178) SDO images on the visible solar disk.

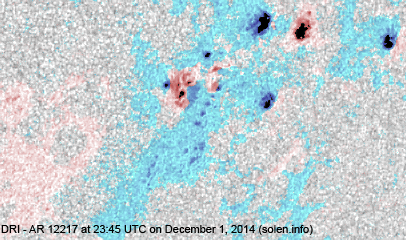

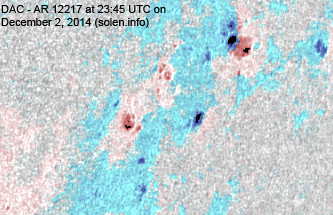

Region 12217 [S16W51] developed slowly with a
magnetic delta forming. C and minor M class flares are possible.
Region 12218 [N17W36] was quiet and stable.

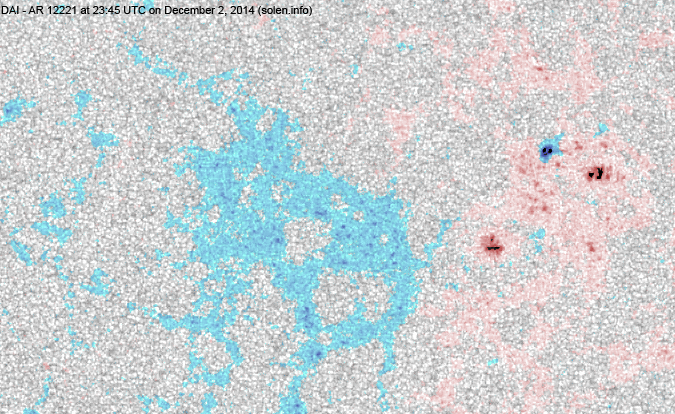

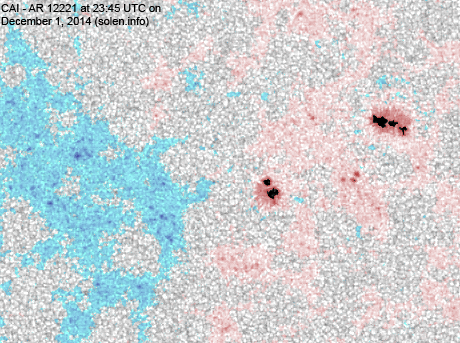

Region 12221 [N06W11] developed slowly and has polarity intermixing after
new flux emerged.

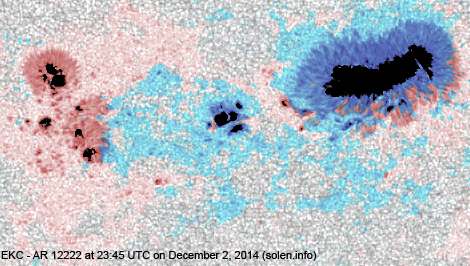

Region 12222 [S19W11] lost spots and remains capable of M class flare
production.
Region 12224 [S24W22] was quiet and stable.
Region 12225 [S15E34] decayed slowly and quietly.
Region 12226 [S19W33] developed slowly and could produce further C class
flares.
New region 12227 [S03E74] rotated into view.
Spotted regions not numbered (or interpreted differently) by SWPC:

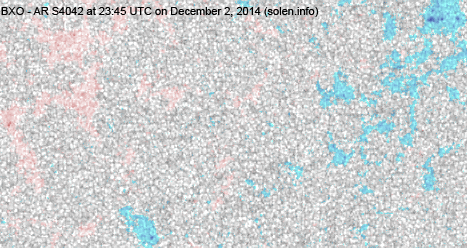

S4042 [S03W26] was quiet and stable.
New region S4047 [N09E58] emerged with a penumbra spot.
New region S4048 [N08E65] rotated into view.
New region S4049 [S09E12] was observed with penumbra spots.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C2.2 | 04:29 | 12222 | ||
| C2.1 | 05:46 | S24E02 | 12222 | |
| C4.1 | 13:52 | 12226 | ||
| C6.5 | 15:55 | 12222 | ||
| C3.9 | 17:35 | 12226 | ||
| C2.4 | 20:34 | 12224 | ||
| C2.7 | 21:30 | |||
| C3.0 | 22:30 | 12222 |
November 30 - December 2: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
No obvious coronal holes are currently in or near Earth facing positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on December 3-5.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

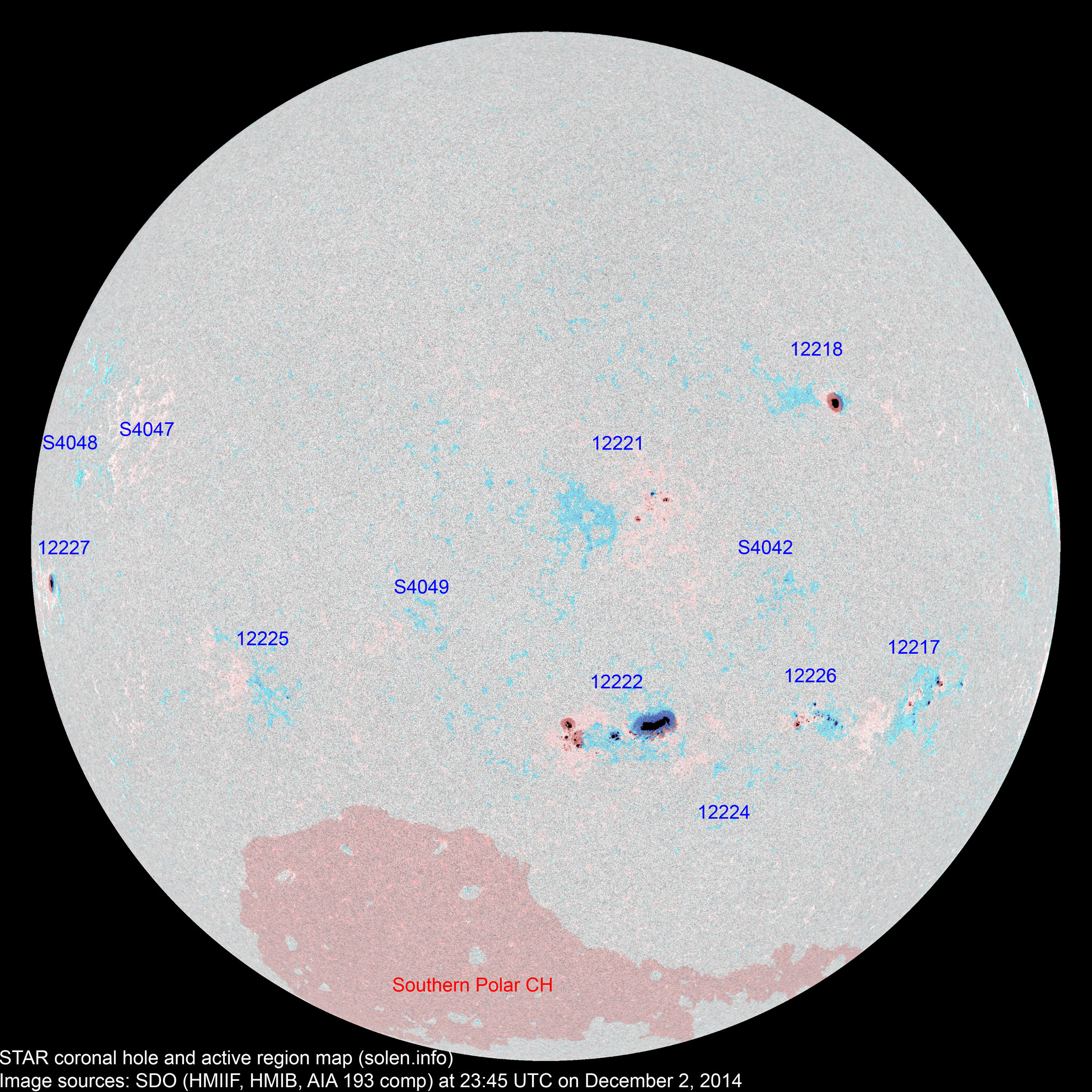

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12216 | 2014.11.19 2014.11.20 |
1 | S14W90 | 0090 | HSX |
 |
rotated out of view | ||||
| 12217 | 2014.11.22 2014.11.23 |
9 | 23 | 12 | S16W51 | 0120 | DAI | DAC |
 |
 |
beta-gamma-delta |
| S4020 | 2014.11.23 | N15W44 |
 |
plage | |||||||
| 12218 | 2014.11.23 | 1 | 6 | 2 | N16W36 | 0170 | HSX | CAO |
 |
 |
|
| 12219 | 2014.11.24 | 2 | N03W90 | 0120 | HSX |
 |
plage | ||||
| 12220 | 2014.11.24 | S16W83 |
 |
plage | |||||||
| 12221 | 2014.11.25 2014.11.26 |
8 | 36 | 18 | N06W11 | 0070 | CAO | DAI |
 |
 |
beta-gamma |
| 12222 | 2014.11.26 | 27 | 47 | 20 | S19W10 | 0620 | EKI | EKC |
 |
 |
beta-gamma area: 0860 |
| 12224 | 2014.11.26 2014.11.28 |
3 | S24W27 | 0004 | BXO |
 |
 |
location: S24W22 | |||
| 12223 | 2014.11.26 2014.11.27 |
N15W80 |
 |
plage | |||||||
| S4037 | 2014.11.26 | N12W54 | plage | ||||||||
| 12226 | 2014.11.27 2014.12.01 |
4 | 24 | 17 | S19W36 | 0040 | CAO | DAI |
 |
 |
beta-gamma area: 0100 |
| S4041 | 2014.11.27 | N26W47 | plage | ||||||||
| S4042 | 2014.11.27 | 5 | 2 | S03W26 | 0012 | BXO |
 |
 |
|||
| 12225 | 2014.11.29 2014.11.30 |
3 | 9 | 4 | S17E30 | 0010 | BXO | BXO |
 |
 |
location: S15E34 area: 0020 |
| S4045 | 2014.11.30 | N24W35 | |||||||||
| 12227 | 2014.12.02 | 1 | 4 | 1 | S03E71 | 0060 | HSX | CSO |
 |
location: S03E74 area: 0190 |
|
| S4047 | 2014.12.02 | 1 | 1 | N09E58 | 0004 | AXX |
 |
||||
| S4048 | 2014.12.02 | 1 | 1 | N08E65 | 0003 | AXX |
 |
||||
| S4049 | 2014.12.02 | 3 | S09E12 | 0005 | AXX |
 |
|||||
| Total spot count: | 56 | 162 | 78 | ||||||||
| Sunspot number: | 146 | 282 | 178 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 101 | 197 | 113 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 88 | 99 | 98 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (79.1 projected, -1.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (77.5 projected, -1.6) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (75.1 projected, -3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (71.9 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (69.5 projected, -2.4) | 8.96 |
| 2014.11 | 154.8 | 70.1 | (67.7 projected, -1.8) | 8.9 | |
| 2014.12 | 167.9 (1) | 9.9 (2A) / 154 (2B) / 92.1 (2C) | (66.0 projected, -1.7) | (9.7) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
