Solar Terrestrial Activity Report

Activity chart

Last major update issued on December 30, 2014 at 05:45 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update December 1, 2014)] [Cycle 24 progress (last update December 1, 2014) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update December 1, 2014)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update December 1, 2014)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update December 3, 2014)]

[Noon SDO sunspot count 1K Reference: 4K (large file) (updated daily)]

[POES auroral activity level October 2009 - December 2012]
[Solar polar fields vs solar cycles - updated December 27, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]

Recent activity

The geomagnetic field was quiet to minor storm on December 29. Solar wind speed at SOHO ranged between 440 and 630 km/s. Another disturbance arrived near 16h UTC and caused unsettled to minor storm conditions for the remainder of the day as well as an increase in solar wind speed.

Solar flux at 20h UTC on 2.8 GHz was 131.5 (decreasing 36.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 153.3. The Potsdam WDC planetary A index was 20 (STAR Ap - based on the mean of three hour interval ap indices: 20.4). Three hour interval K indices: 23234535 (planetary), 12134434 (Boulder).

The background x-ray flux is at the class B5 level.

At the time of counting spots (see image time), spots were observed in 14 active regions using 2K resolution (SN: 219) and 12 active regions using 1K resolution (SN: 159) SDO images on the visible solar disk.

Region 12246 [N17W28] was quiet and stable.
Region 12247 [S25W14] decayed slowly and quietly.
Region 12248 [S21W01] decayed slowly and was mostly quiet.
Region 12249 [S13W83] decayed slowly and quietly.
Region 12250 [N07W70] decayed slowly and was mostly quiet.
Region 12251 [S12E33] developed further and could produce C flares and maybe a minor M class flare.
Region 12252 [S20E52] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4103 [N01W12] was quiet and stable.
S4105 [S10W07] was quiet and stable.
New region S4113 [S06E75] rotated into view with a few spots.
New region S4114 [N17E51] was observed with penumbra spots.
New region S4115 [N05E13] emerged with a single spot.
New region S4116 [S03W67] emerged with penumbra spots.
New region S4117 [S09E10] emerged with penumbra spots.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment
C2.6 10:52 N05W62 12250

Coronal mass ejections (CMEs)

December 27-29: No obviously Earth directed CMEs were observed in LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

No obvious coronal holes are currently in or near Earth facing positions.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to active on December 30 and quiet to unsettled on December 31 - January 1.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

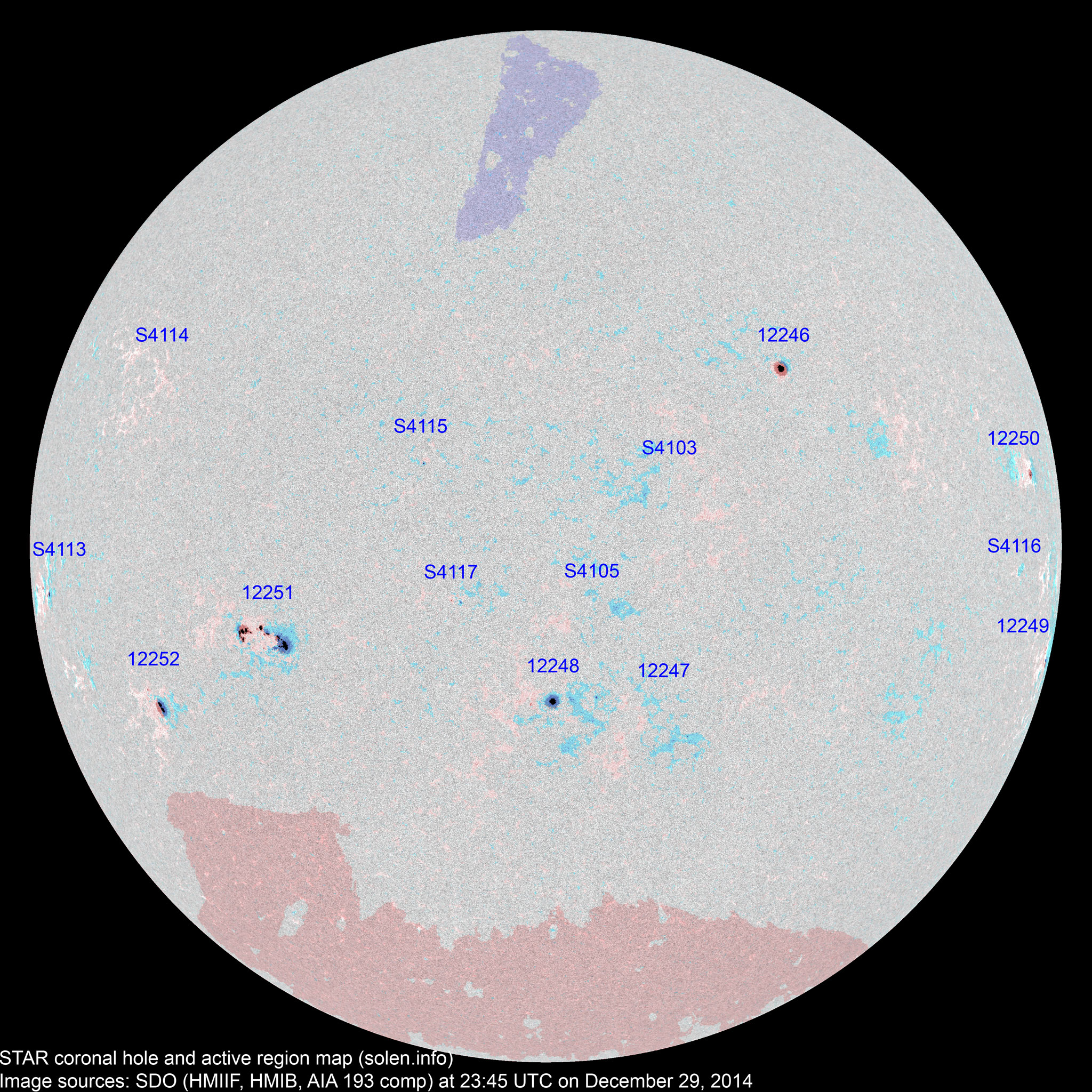

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12244 2014.12.20       S04W84           plage
12245 2014.12.21       N09W48
12246 2014.12.21 1 1 1 N17W30 0070 HSX HSX area: 0120

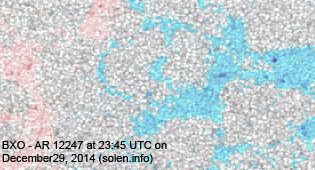

12247 2014.12.23 2 7 4 S24W21 0010 BXO BXO area: 0025

location: S25W14

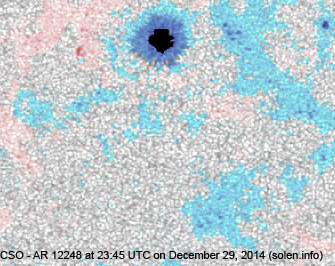

12248 2014.12.23 14 13 6 S21W06 0100 CSO CSO

location: S21W01

12249 2014.12.25 6 3 2 S11W87 0220 DAI CRO

area: 0040

12250 2014.12.26 5 4 1 N08W68 0020 CRO CAO area: 0040
S4098 2014.12.23       S20W22           plage
S4100 2014.12.23       S17W47         plage

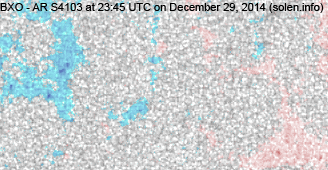

S4103 2014.12.24   6 3 N01W12 0012   BXO
S4105 2014.12.25   4 1 S10W07 0010   AXX
12251 2014.12.26 14 26 13 S15E32 0050 CAI DAC beta-gamma

area: 0400

location: S12E33

S4109 2014.12.26       S05W29           plage
12252 2014.12.27 1 2 2 S22E49 0090 HAX CAO area: 0160
S4112 2014.12.27       N03E19           plage
S4113 2014.12.29   6 3 S06E75 0030   CRO
S4114 2014.12.29   2   N17E51 0003   AXX
S4115 2014.12.29   1 1 N05E13 0006   HRX
S4116 2014.12.29   2   S03W67 0004   BXO
S4117 2014.12.29   2 2 S09E10 0010   BXO



Total spot count: 43 79 39
Sunspot number: 113 219 159  (total spot count + 10 * number of spotted regions)
Weighted SN: 71 113 73  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 68 77 87 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1)
(likely solar max)
7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 (79.1 projected, -1.6) 6.72
2014.07 137.4 141.8 72.5 (77.5 projected, -1.6) 4.50
2014.08 124.7 127.9 74.7 (75.1 projected, -3.0) 7.71
2014.09 146.6 148.1 87.6 (71.9 projected, -3.2) 9.78
2014.10 153.4 152.9 60.6 (69.5 projected, -2.4) 8.96
2014.11 154.8 151.4 70.1 (67.7 projected, -1.8) 9.33
2014.12 157.1 (1)   113.8 (2A) / 121.7 (2B) / 91.3 (2C) (66.0 projected, -1.7) (10.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
