The geomagnetic field was quiet on February 1. Solar wind speed at SOHO ranged between 273 and 373 km/s. A weak, low speed disturbance began after 09h UTC.
Solar flux at 20h UTC on 2.8 GHz was 176.7 (decreasing 40.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 147.3. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.9). Three hour interval K indices: 00000112 (planetary), 00012312 (Boulder).
The background x-ray flux is at the class C2 level.
At the time of counting spots (see image time) spots were observed in 8 active regions in 2K resolution (SN: 274) and 7 active regions in 1K resolution (SN: 184) SDO images on the visible solar disk.

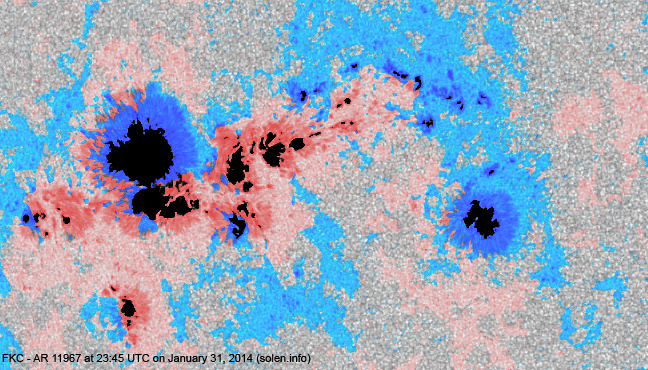

Region 11967 [S12E17] developed quickly in the
central and northwestern section. There is a contiguous penumbral structure of
approximately 15 degrees longitudinally. Multiple strong magnetic delta
structures could be the origin of a major X class flare at any time during the
next 2-3 days.
C5+ flares: M1.0/1F at 01:25, M3.0/1B at 07:23 UTC.

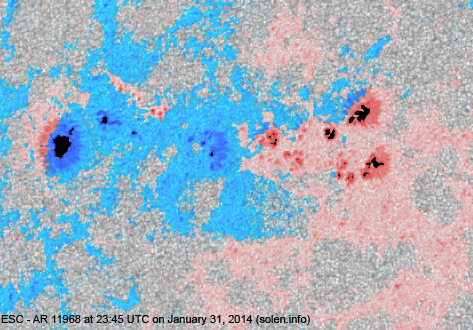

Region 11968 [N10E18] developed
significantly in the trailing and central spot sections. A magnetic delta
structure is visible at the northern tip of the largest trailing spot. A minor M
class flare is possible.
New region 11969 [S10W32] emerged on January 28 and was numbered by SWPC
4 days later.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3073 [N18E16] was quiet and stable.
S3079 [S12E33] was quiet and stable.
New region S3080 [S18E68] emerged quickly near the southeast limb.
New region S3082 [N07E75] emerged near the northeast limb with
penumbra spots.
New region S3083 [N11W22] emerged with a penumbra
spot.
January 30: A halo CME was observed after an M1 event in AR 11967 at
08:11 UTC. The CME was faint over the west limbs and the north pole. A much
larger CME was observed after the M6 flare in AR 11967 at 16:11 UTC. This CME
could reach Earth on February 2.
January 31: Although imagery is incomplete from the hours after
the M1 event in AR 11968, LASCO C3 images indicate that there was a halo CME
associated. The CME could reach Earth on February 3.
February 1: No obviously Earth directed CMES were observed in LASCO and
STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent trans equatorial coronal hole (CH602) will likely rotate into an Earth facing position on February 5-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to active on February 2 due to effects from the largest CME observed on January 30. On February 3-4 quiet to unsettled conditions are likely.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

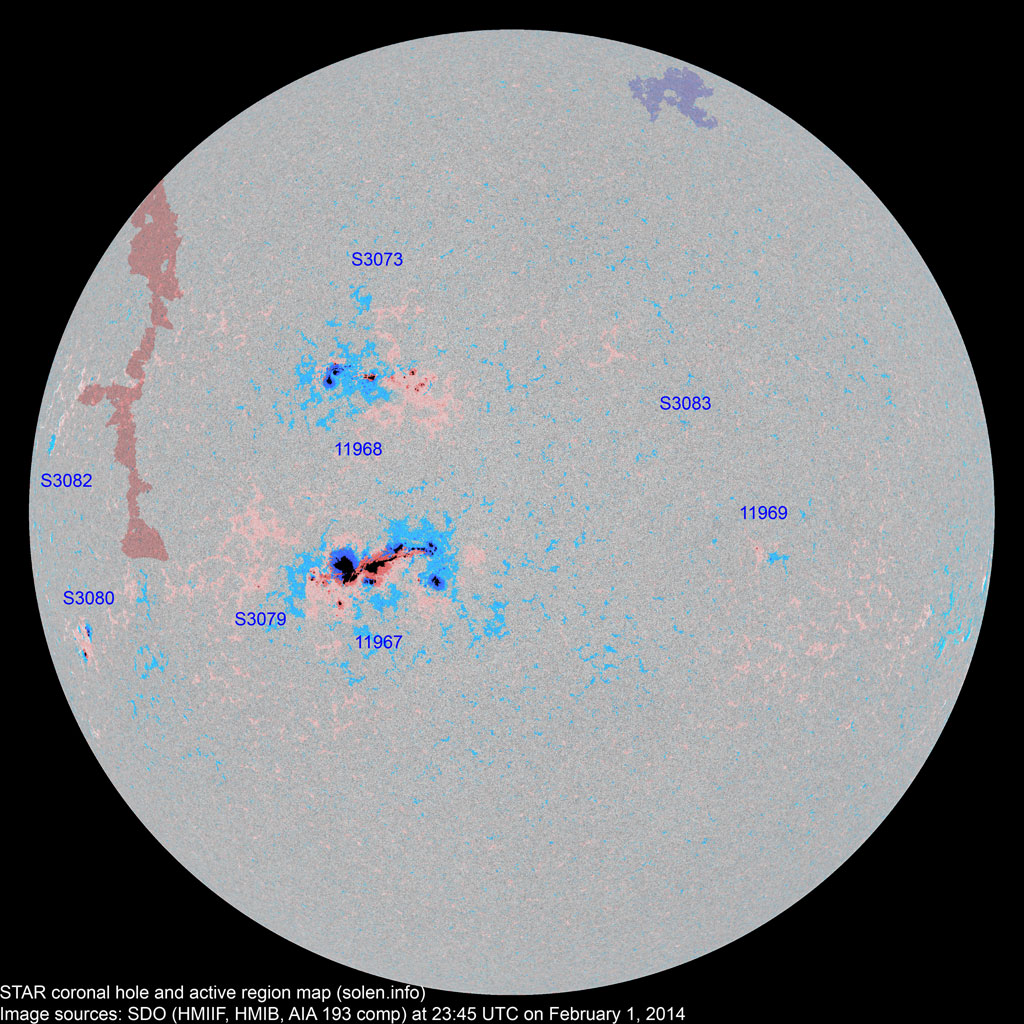

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11965 | 2014.01.20 2014.01.22 |
S15W84 |
SWPC location on Jan.28: S14W24 location: S14W66 plage |
||||||||
| S3057 | 2014.01.22 | N05W55 | plage | ||||||||
| S3062 | 2014.01.24 | S28W66 | plage | ||||||||
| S3064 | 2014.01.26 | N23W50 | plage | ||||||||
| 11967 | 2014.01.26 2014.01.27 |
86 | 109 | 59 | S13E16 | 1410 | FKC | FKC |
 |
 |
gamma-delta area: 2440 location: S12E17
|
| 11968 | 2014.01.27 | 28 | 60 | 43 | N10E15 | 0220 | EAI | EKC |
 |
 |
beta-gamma-delta area: 0500 location: N10E18 |
| 11969 | 2014.01.28 2014.02.01 |
3 | 4 | 2 | S10W35 | 0010 | BXO | CRO |
 |
 |
|
| S3073 | 2014.01.28 | 3 | 2 | N18E16 | 0012 | BXO |
 |
 |
|||
| S3074 | 2014.01.29 | S17W46 | plage | ||||||||
| S3075 | 2014.01.29 | S12E43 |
 |
plage | |||||||
| S3076 | 2014.01.29 | N13W37 | plage | ||||||||
| S3077 | 2014.01.30 | N13W06 |
 |
plage | |||||||
| S3078 | 2014.01.30 | S23W09 | plage | ||||||||
| S3079 | 2014.01.31 | 8 | 3 | S12E33 | 0022 | HRX |
 |
 |
|||
| S3080 | 2014.02.01 | 6 | 4 | S18E68 | 0110 | DAO |
 |
||||
| S3082 | 2014.02.01 | 3 | N07E75 | 0010 | BXO |
 |
|||||
| S3083 | 2014.02.01 | 1 | 1 | N11W22 | 0003 | AXX |
 |
||||
| Total spot count: | 117 | 194 | 114 | ||||||||
| Sunspot number: | 147 | 274 | 184 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 132 | 225 | 145 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 88 | 96 | 101 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2011.11 | 153.5 | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 | |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 | |
| 2012.11 | 121.3 | 118.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 105.0 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | (67.8 projected, +2.3) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | (69.6 projected, +1.8) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | (69.3 projected, -0.3) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | (67.5 projected, -1.8) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | (66.7 projected, -0.8) | 4.68 |
| 2014.01 | 157.4 (cycle peak) | 152.4 | 82.0 | (66.9 projected, +0.2) | 5.4 |
| 2014.02 | 176.7 (1) | 5.3 (2A) / 147 (2B) / 102.7 (2C) | (65.9 projected, -1.0) | (2.9) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
