The geomagnetic field was quiet on February 2. Solar wind speed at SOHO ranged between 342 and 408 km/s. A brief increase in solar speed and density was observed at SOHO near 23:23 UTC, most likely the arrival of the CME observed on January 30. ACE EPAM data agrees with this interpretation.
Solar flux at 20h UTC on 2.8 GHz was 189.8 (decreasing 14.1 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 147.8. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.3). Three hour interval K indices: 12100111 (planetary), 11102221 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time) spots were observed in 10 active regions in 2K resolution (SN: 319) and 5 active regions in 1K resolution (SN: 174) SDO images on the visible solar disk.
Region 11967 [S12E04] developed further in the
central and northern sections gaining penumbral area and spots. The region has
multiple magnetic delta structures, the largest one in the trailing spot section.
An X class flare is possible.
C5+ flares: C7.5 at 06:07 (attributed to AR 11968
by SWPC), M2.2/1N at 08:20, M4.4/1B at 09:31, C9.7 at 11:49, , M3.1 at 18:11,
M1.3 at 22:04 UTC.
Region 11968 [N10E07] developed early in the
day and became quite active producing a number of flare. Slow decay was observed
late in the day, particularly in the leading spot section. Further C and M class
flaring is possible.
C5+ flares: C6.5 at 01:18, M2.6/1B at 06:34, M1.3
at 14:06 (attributed to AR 11967 by SWPC), C7.8 at 14:21, M1.0 at 16:29, C8.4 at
22:31 UTC.
Region 11969 [S10W45] was quiet and stable.
New region 11970 [S17E53] emerged on February 1 and was numbered by SWPC
the next day.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3073 [N18E06] was quiet and stable.
S3079 [S09E18] was quiet and stable.
New region S3084 [S12E40] emerged with penumbra
spots.
New region S3085 [S15E29] emerged with a penumbra spot.
New region S3086 [N09W15] emerged with a penumbra spot.
New region S3087 [S28E08] emerged with a penumbra spot.
January 31: Although imagery is incomplete from the hours after
the M1 event in AR 11968, LASCO C3 images indicate that there was a halo CME
associated. The CME could reach Earth on February 3.
February 1-2: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery. On Feb.2 two CMEs were observed from a location behind the
southwest limb.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent trans equatorial coronal hole (CH602) will likely rotate into an Earth facing position on February 5-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on February 3-5.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

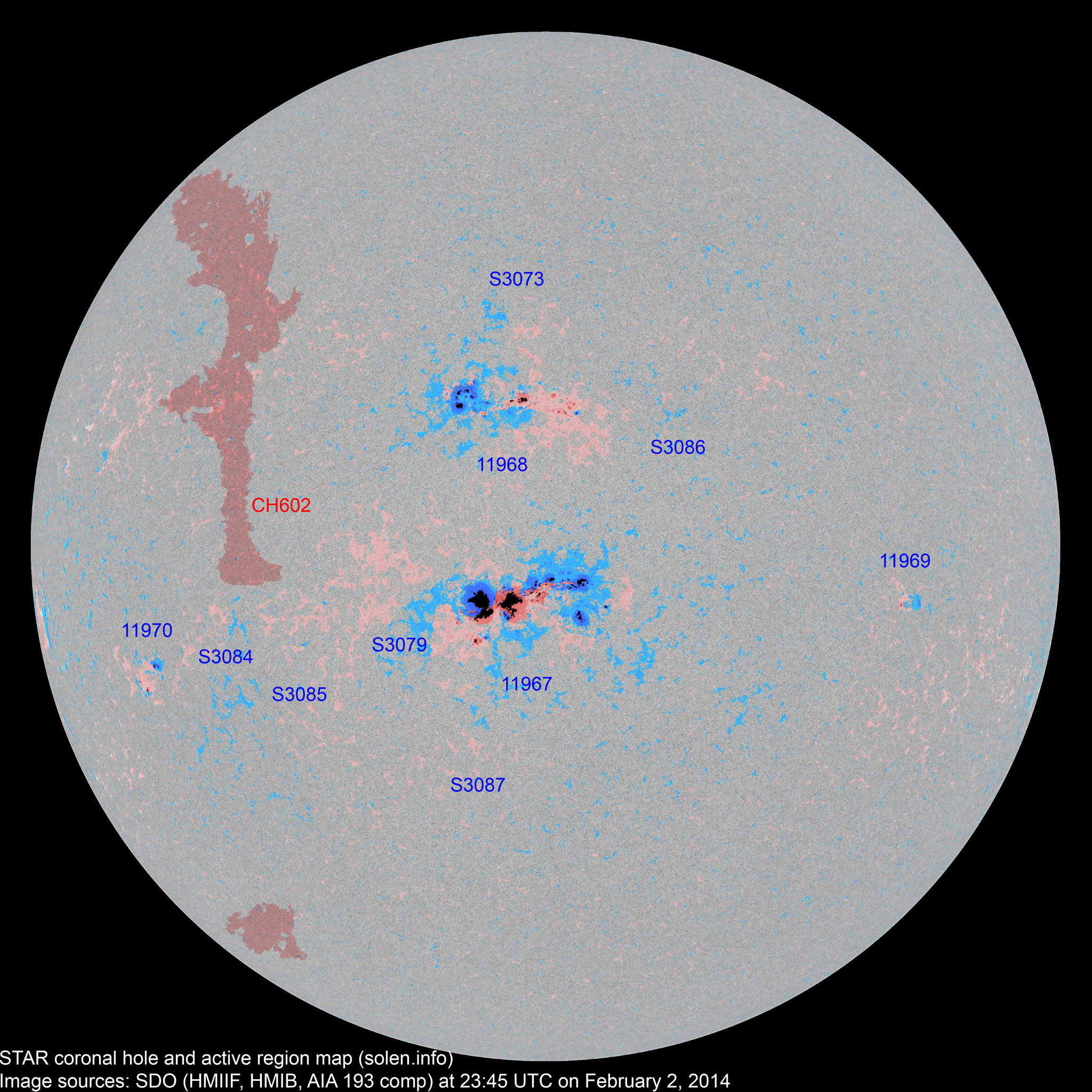

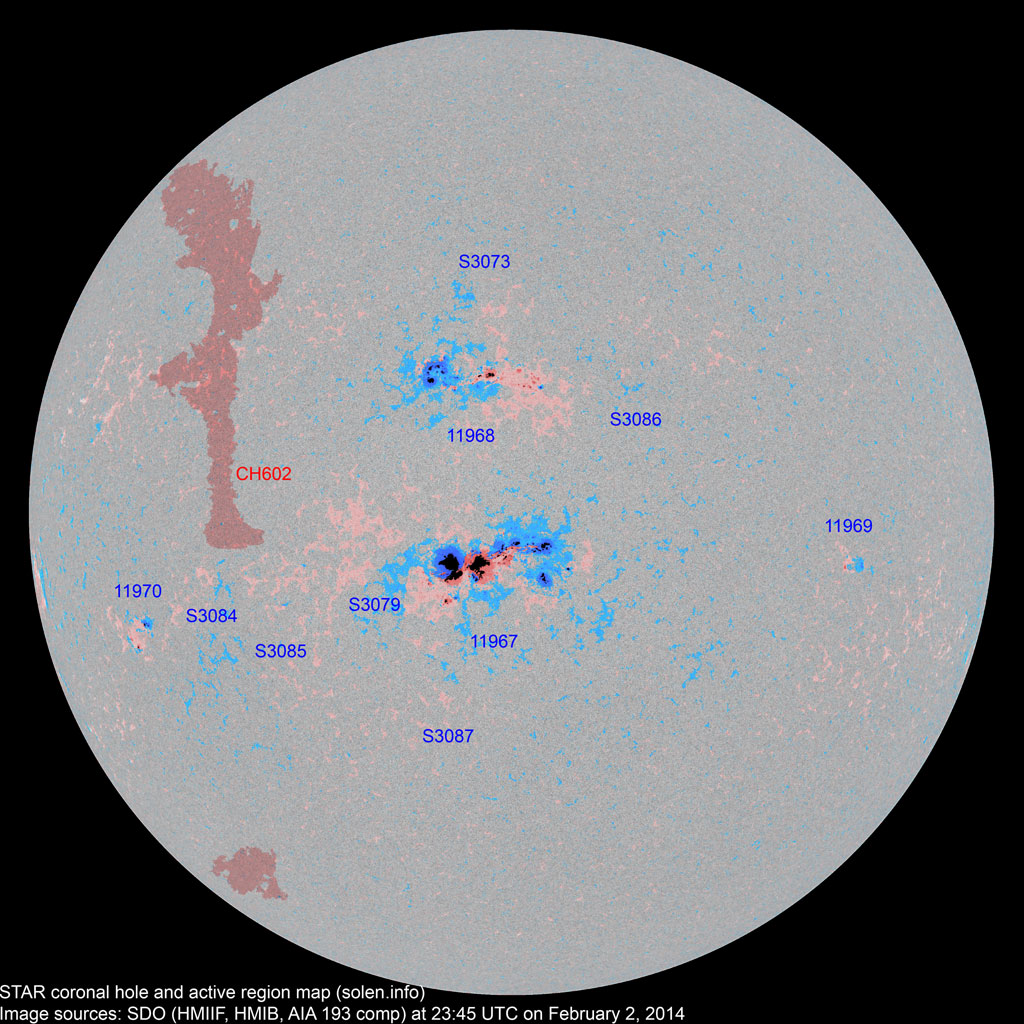

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11967 | 2014.01.26 2014.01.27 |
94 | 116 | 70 | S13E01 | 1510 | FKC | FKC |
 |
 |
gamma-delta area: 2800 location: S12E04
|
| 11968 | 2014.01.27 | 35 | 66 | 45 | N10E03 | 0300 | EKC | EAC |
 |
 |
beta-gamma area: 0560 location: N10E07 |
| 11969 | 2014.01.28 2014.02.01 |
7 | 3 | S10W49 | 0030 | CRO |
 |
 |
|||
| S3073 | 2014.01.28 | 7 | 2 | N18E06 | 0018 | BXO |
 |
 |
|||
| S3074 | 2014.01.29 | S17W59 | plage | ||||||||
| S3075 | 2014.01.29 | S12E30 | plage | ||||||||
| S3076 | 2014.01.29 | N13W50 | plage | ||||||||
| S3077 | 2014.01.30 | N13W19 | plage | ||||||||
| S3078 | 2014.01.30 | S23W22 | plage | ||||||||
| S3079 | 2014.01.31 | 9 | S09E18 | 0020 | BXO |
 |
 |
||||
| 11970 | 2014.02.01 2014.02.02 |
4 | 8 | 4 | S18E54 | 0080 | DAO | DAO |
 |
 |
|
| S3082 | 2014.02.01 | N07E62 |
 |
plage | |||||||
| S3083 | 2014.02.01 | N11W35 |
 |
||||||||
| S3084 | 2014.02.02 | 3 | S12E40 | 0009 | AXX |
 |
|||||
| S3085 | 2014.02.02 | 1 | S15E29 | 0003 | AXX |
 |
|||||
| S3086 | 2014.02.02 | 1 | N09E15 | 0003 | AXX |
 |
|||||
| S3087 | 2014.02.02 | 1 | S28E08 | 0003 | AXX |
 |
|||||
| Total spot count: | 133 | 219 | 124 | ||||||||
| Sunspot number: | 163 | 319 | 174 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 158 | 242 | 147 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 98 | 111 | 96 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2011.11 | 153.5 | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 | |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 | |
| 2012.11 | 121.3 | 118.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 105.0 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | (67.8 projected, +2.3) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | (69.6 projected, +1.8) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | (69.3 projected, -0.3) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | (67.5 projected, -1.8) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | (66.7 projected, -0.8) | 4.68 |
| 2014.01 | 157.4 (cycle peak) |
152.4 | 82.0 | (66.9 projected, +0.2) | 5.4 |
| 2014.02 | 183.3 (1) | 11.1 (2A) / 155 (2B) / 101.7 (2C) | (65.9 projected, -1.0) | (3.1) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
